Description

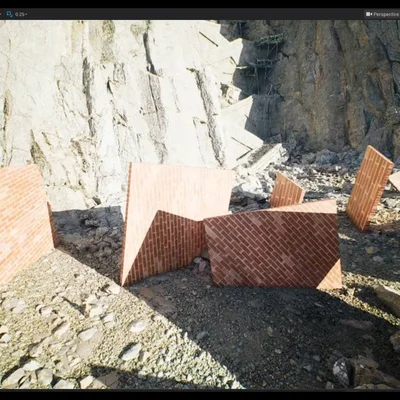

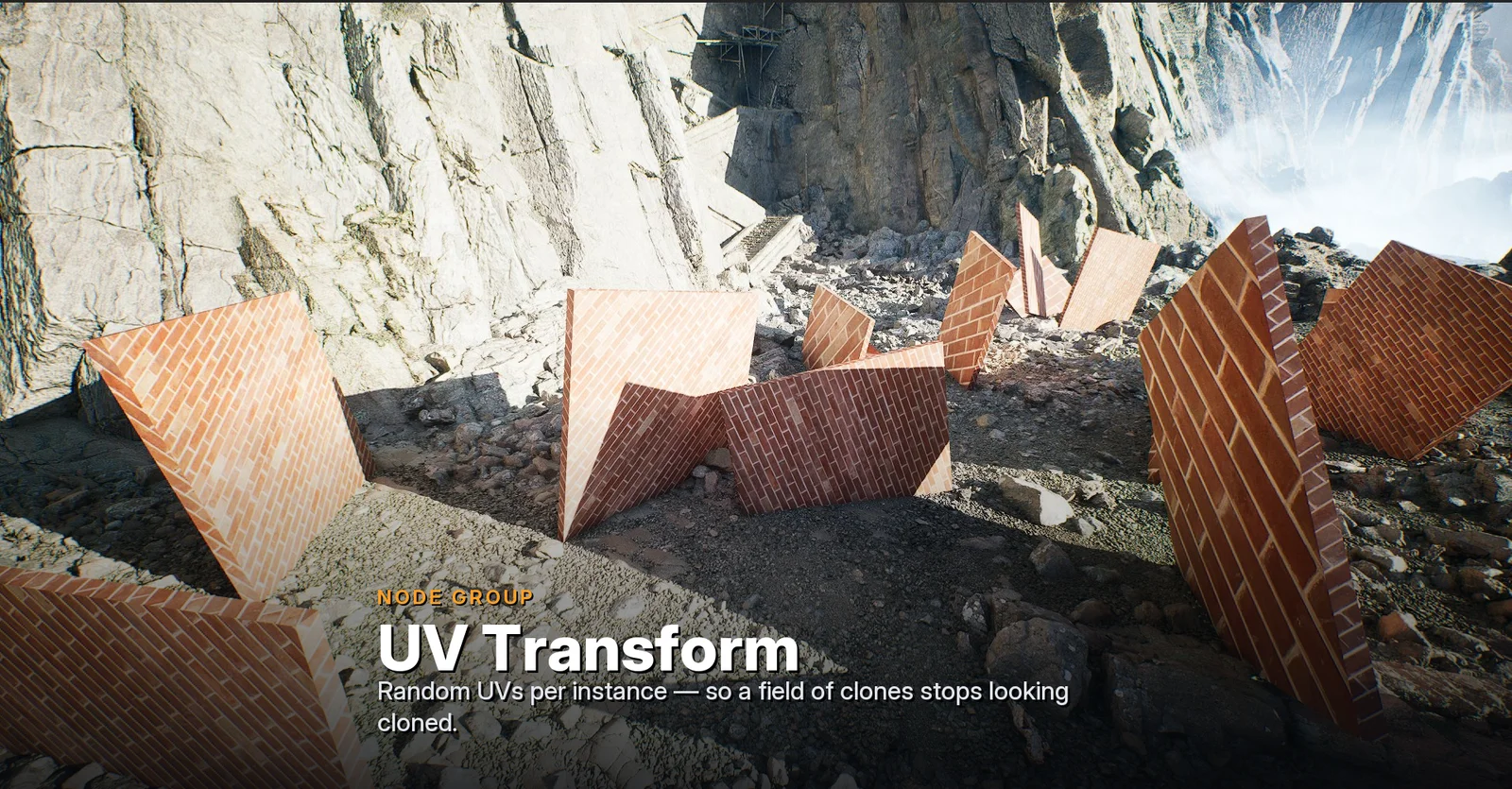

A node group that transforms a texture's UVs

**Rotate, scale and offset ** and gives each instanced copy its own random variation. Wire its output into any TextureSample's UVs. The standout is PerObjectRandom: on foliage or instanced static meshes it rotates and offsets the texture differently per instance, so a scattered field of identical meshes — grass, rocks, tiles, crates, debris — stops looking copy-pasted. The Rotation, Scale and Offset controls work on any mesh for quick manual placement.
** - Rotation / Scale / Offset** : works on any mesh (normal static meshes, anything). Pure manual UV controls. ** - PerObjectRandom **: only does something on instanced meshes (foliage / ISM/HISM), because it reads PerInstanceRandom, which is 0 on a single placed mesh
material graph
Want this graph on your blog or forum?
0 comments

No comments yet. Be the first.
source
View T3D source (82 KB)expand
Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_0"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C0"
   End Object
   Begin Object Name="MaterialExpressionComment_C0"
      SizeX=540
      SizeY=780
      Text="UV Transform"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-1720
      MaterialExpressionEditorY=-560
      MaterialExpressionGuid=7C2B5E4ACCA0FB6D2E7D45D559844613
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C0'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-1720
   NodePosY=-560
   NodeWidth=540
   NodeHeight=780
   NodeComment="UV Transform"
   NodeGuid=B47572EE58C3E9A610E1CFBDFD8E1967
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_1"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C1"
   End Object
   Begin Object Name="MaterialExpressionComment_C1"
      SizeX=380
      SizeY=220
      Text="Result (UVs) → a TextureSample's UVs input"
      CommentColor=(R=0.162029,G=0.417885,B=0.063010,A=1.000000)
      MaterialExpressionEditorX=380
      MaterialExpressionEditorY=640
      MaterialExpressionGuid=60F00C2610DC8E0050F79569676034AB
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C1'"
   CommentColor=(R=0.162029,G=0.417885,B=0.063010,A=1.000000)
   NodePosX=380
   NodePosY=640
   NodeWidth=380
   NodeHeight=220
   NodeComment="Result (UVs) → a TextureSample's UVs input"
   NodeGuid=8551D9B3ADEA71A21439C39FD67FDC8F
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_2"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_2"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_2"
      ParameterName="Rotation"
      DefaultValue=0
      SliderMin=-180
      SliderMax=180
      Group="UV Transform"
      SortPriority=0
      Desc="Rotation in degrees, around the UV centre (0.5, 0.5)."
      MaterialExpressionEditorX=-1680
      MaterialExpressionEditorY=-460
      MaterialExpressionGuid=91564FB3E9869CF70B5A42AE03041693
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_2'"
   NodePosX=-1680
   NodePosY=-460
   NodeGuid=37E324C9C685998757BA0A7861D9CEAD
   CustomProperties Pin (PinId=3D4A8D99C096D62DA2DB2EDED337D101,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_13 8EAAFE6878C761E44640E3D76735A241,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_3"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_3"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_3"
      ParameterName="Scale"
      DefaultValue=1
      SliderMin=0.1
      SliderMax=16
      Group="UV Transform"
      SortPriority=1
      Desc="Uniform scale around the UV centre. Higher = the texture repeats more often."
      MaterialExpressionEditorX=-1680
      MaterialExpressionEditorY=-300
      MaterialExpressionGuid=D20C44829F30B0B8A5FE61A8C9531051
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_3'"
   NodePosX=-1680
   NodePosY=-300
   NodeGuid=C56D2B44928BF2A1218D0A0E37334062
   CustomProperties Pin (PinId=314318200058E22F7A3D4D8CF3803388,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_10 B049E82704EBC992FFCA3BAD4AF40763,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_4"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_4"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_4"
      ParameterName="OffsetX"
      DefaultValue=0
      SliderMin=-1
      SliderMax=1
      Group="UV Transform"
      SortPriority=2
      Desc="Pan along U."
      MaterialExpressionEditorX=-1680
      MaterialExpressionEditorY=-140
      MaterialExpressionGuid=3B61905C3A62E90FEE13256000087650
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_4'"
   NodePosX=-1680
   NodePosY=-140
   NodeGuid=7DEA0C98EE17127BF3DEF0831C838B01
   CustomProperties Pin (PinId=1FF235DE50F90B96C510211F962BB7F4,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_32 F2B4919C2DE308DBA72AAAFDB999BB33,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_5"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_5"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_5"
      ParameterName="OffsetY"
      DefaultValue=0
      SliderMin=-1
      SliderMax=1
      Group="UV Transform"
      SortPriority=3
      Desc="Pan along V."
      MaterialExpressionEditorX=-1680
      MaterialExpressionEditorY=20
      MaterialExpressionGuid=A1416E86DBE20554F42BD4C12EA41081
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_5'"
   NodePosX=-1680
   NodePosY=20
   NodeGuid=23A780605D63C8E0C6A6D2ED1690D2D4
   CustomProperties Pin (PinId=1F730D3DEB877BD5C9383D846F68E582,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_32 C793DE4C28DD315351B657CCAA31DE10,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_6"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_6"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_6"
      ParameterName="PerObjectRandom"
      DefaultValue=0
      SliderMin=0
      SliderMax=1
      Group="UV Transform"
      SortPriority=4
      Desc="Strength of per-instance random rotation + offset (uses Per Instance Random). 0 = off. Only affects instanced/foliage meshes."
      MaterialExpressionEditorX=-1680
      MaterialExpressionEditorY=180
      MaterialExpressionGuid=EA34864C8E7207656109C3B4C2C5FD87
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_6'"
   NodePosX=-1680
   NodePosY=180
   NodeGuid=390EA3ADF99762869DD0E936B61F3533
   CustomProperties Pin (PinId=185FEE3512950F8BA3F623FB30C21E34,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_14 2615250ECFE527BD524EB0FA3C498E09,MaterialGraphNode_31 A26C2A82E3D81C0E6B120B6D553CD00D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_7"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureCoordinate Name="MaterialExpressionTextureCoordinate_7"
   End Object
   Begin Object Name="MaterialExpressionTextureCoordinate_7"
      CoordinateIndex=0
      UTiling=1
      VTiling=1
      MaterialExpressionEditorX=-1680
      MaterialExpressionEditorY=440
      MaterialExpressionGuid=A89D78B9883E4D8FD0815082231DC716
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureCoordinate'MaterialExpressionTextureCoordinate_7'"
   NodePosX=-1680
   NodePosY=440
   NodeGuid=3F5226A6F588AB094F5A82263DB060AF
   CustomProperties Pin (PinId=BEF1EB0B6811CEAAF0C83DF981945628,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_9 377429B71D6BCC90E42535822108956D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_8"
   Begin Object Class=/Script/Engine.MaterialExpressionConstant2Vector Name="MaterialExpressionConstant2Vector_8"
   End Object
   Begin Object Name="MaterialExpressionConstant2Vector_8"
      R=0.5
      G=0.5
      MaterialExpressionEditorX=-1680
      MaterialExpressionEditorY=600
      MaterialExpressionGuid=F33BC66EC0A950703175C1EFA7CD0DEA
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionConstant2Vector'MaterialExpressionConstant2Vector_8'"
   NodePosX=-1680
   NodePosY=600
   NodeGuid=550043AFC63C1A132BECCFD30AB8800B
   CustomProperties Pin (PinId=28B6AF48E4AB5E4886580D77496D5501,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_9 F5150E72249F4876022EAA068ED5610C,MaterialGraphNode_34 A9ED94DBFF991121A6C65B15CA0CACD5,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_9"
   Begin Object Class=/Script/Engine.MaterialExpressionSubtract Name="MaterialExpressionSubtract_9"
   End Object
   Begin Object Name="MaterialExpressionSubtract_9"
      A=(Expression="/Script/Engine.MaterialExpressionTextureCoordinate'MaterialGraphNode_7.MaterialExpressionTextureCoordinate_7'")
      B=(Expression="/Script/Engine.MaterialExpressionConstant2Vector'MaterialGraphNode_8.MaterialExpressionConstant2Vector_8'")
      MaterialExpressionEditorX=-1340
      MaterialExpressionEditorY=460
      MaterialExpressionGuid=FEFF494546B12E3C4DF050BDFB86DBB5
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionSubtract'MaterialExpressionSubtract_9'"
   NodePosX=-1340
   NodePosY=460
   NodeGuid=E3D15D29E76906826852935DA9E18787
   CustomProperties Pin (PinId=377429B71D6BCC90E42535822108956D,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_7 BEF1EB0B6811CEAAF0C83DF981945628,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=F5150E72249F4876022EAA068ED5610C,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_8 28B6AF48E4AB5E4886580D77496D5501,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=9BAD525E38463293EFE0423F7BBAEE76,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_10 739B62FCF7801FCAED67D30F23A6D2A0,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_10"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_10"
   End Object
   Begin Object Name="MaterialExpressionMultiply_10"
      A=(Expression="/Script/Engine.MaterialExpressionSubtract'MaterialGraphNode_9.MaterialExpressionSubtract_9'")
      B=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_3.MaterialExpressionScalarParameter_3'")
      MaterialExpressionEditorX=-1100
      MaterialExpressionEditorY=480
      MaterialExpressionGuid=005EDE8428B542FE1DFBF81DD4F3E2BD
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_10'"
   NodePosX=-1100
   NodePosY=480
   NodeGuid=415DD766B5617D8A9B27A67D2F2CB6D5
   CustomProperties Pin (PinId=739B62FCF7801FCAED67D30F23A6D2A0,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_9 9BAD525E38463293EFE0423F7BBAEE76,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=B049E82704EBC992FFCA3BAD4AF40763,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_3 314318200058E22F7A3D4D8CF3803388,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=D50C415DCD717EB02DF05F60F2D27973,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_18 F9EA7CE187E93415B0634FDBF7936548,MaterialGraphNode_19 9AA9A6C5D20EB53EFBDFAE256E7887B2,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_11"
   Begin Object Class=/Script/Engine.MaterialExpressionPerInstanceRandom Name="MaterialExpressionPerInstanceRandom_11"
   End Object
   Begin Object Name="MaterialExpressionPerInstanceRandom_11"
      MaterialExpressionEditorX=-1680
      MaterialExpressionEditorY=820
      MaterialExpressionGuid=3B4C504653B73186D3CC3E9F5A1530EA
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionPerInstanceRandom'MaterialExpressionPerInstanceRandom_11'"
   NodePosX=-1680
   NodePosY=820
   NodeGuid=BB8DE4763235824E176963F539E77CD5
   CustomProperties Pin (PinId=9C7F72AC407FDBD133F377FB5A55DA73,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_14 74F8622AE67FE0D2D86E223EE875592B,MaterialGraphNode_28 A3CCE5E75F8EE1B0920B54D398F1FEDC,MaterialGraphNode_30 EDC3A9D6DE42C0FA78FBA1D86D8760EE,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_12"
   Begin Object Class=/Script/Engine.MaterialExpressionConstant Name="MaterialExpressionConstant_12"
   End Object
   Begin Object Name="MaterialExpressionConstant_12"
      R=360
      MaterialExpressionEditorX=-1440
      MaterialExpressionEditorY=940
      MaterialExpressionGuid=FDBAE5DDBC42ADBE59A9DEB72DFABE40
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionConstant'MaterialExpressionConstant_12'"
   NodePosX=-1440
   NodePosY=940
   NodeGuid=0668920F03595B85953D1B7D30B02A40
   CustomProperties Pin (PinId=13B8DD9891E11C6919BF4977D402AE63,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_13 75A751D71CD7CA982F6C2A9B3DE41269,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_13"
   Begin Object Class=/Script/Engine.MaterialExpressionDivide Name="MaterialExpressionDivide_13"
   End Object
   Begin Object Name="MaterialExpressionDivide_13"
      A=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_2.MaterialExpressionScalarParameter_2'")
      B=(Expression="/Script/Engine.MaterialExpressionConstant'MaterialGraphNode_12.MaterialExpressionConstant_12'")
      MaterialExpressionEditorX=-1200
      MaterialExpressionEditorY=860
      MaterialExpressionGuid=332D2E92ED515779B94D041393CC7DC5
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionDivide'MaterialExpressionDivide_13'"
   NodePosX=-1200
   NodePosY=860
   NodeGuid=6A859711E3CE2F28E4E4C43366848F37
   CustomProperties Pin (PinId=8EAAFE6878C761E44640E3D76735A241,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_2 3D4A8D99C096D62DA2DB2EDED337D101,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=75A751D71CD7CA982F6C2A9B3DE41269,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_12 13B8DD9891E11C6919BF4977D402AE63,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=F93FA2FC147E088551CAE53A18895364,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_15 56658209C401570B12BC7F6AB5FF9C39,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_14"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_14"
   End Object
   Begin Object Name="MaterialExpressionMultiply_14"
      A=(Expression="/Script/Engine.MaterialExpressionPerInstanceRandom'MaterialGraphNode_11.MaterialExpressionPerInstanceRandom_11'")
      B=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_6.MaterialExpressionScalarParameter_6'")
      MaterialExpressionEditorX=-1200
      MaterialExpressionEditorY=1020
      MaterialExpressionGuid=F7F9EAF44DB2AA13D4D3D0E0328A7D14
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_14'"
   NodePosX=-1200
   NodePosY=1020
   NodeGuid=B8B0A4ED43323D31E9B54974FBA20FAB
   CustomProperties Pin (PinId=74F8622AE67FE0D2D86E223EE875592B,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_11 9C7F72AC407FDBD133F377FB5A55DA73,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=2615250ECFE527BD524EB0FA3C498E09,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_6 185FEE3512950F8BA3F623FB30C21E34,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=962502443634BFA2CDA3B0714E5ECBC9,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_15 26FA694B28D6E7B8D785841DB937C05A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_15"
   Begin Object Class=/Script/Engine.MaterialExpressionAdd Name="MaterialExpressionAdd_15"
   End Object
   Begin Object Name="MaterialExpressionAdd_15"
      A=(Expression="/Script/Engine.MaterialExpressionDivide'MaterialGraphNode_13.MaterialExpressionDivide_13'")
      B=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_14.MaterialExpressionMultiply_14'")
      MaterialExpressionEditorX=-960
      MaterialExpressionEditorY=920
      MaterialExpressionGuid=12EE5925A0B08FE3D2FC055FC3CDBBBB
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionAdd'MaterialExpressionAdd_15'"
   NodePosX=-960
   NodePosY=920
   NodeGuid=87E4944F4FB76B81A72597D87AADA86F
   CustomProperties Pin (PinId=56658209C401570B12BC7F6AB5FF9C39,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_13 F93FA2FC147E088551CAE53A18895364,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=26FA694B28D6E7B8D785841DB937C05A,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_14 962502443634BFA2CDA3B0714E5ECBC9,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=034894266A1B2338D7831149C68A1843,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 B13C7ECD96FF769275AB29243E746BEA,MaterialGraphNode_17 28D76B13DC8BC43F8668E1579E4F0244,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_16"
   Begin Object Class=/Script/Engine.MaterialExpressionCosine Name="MaterialExpressionCosine_16"
   End Object
   Begin Object Name="MaterialExpressionCosine_16"
      Input=(Expression="/Script/Engine.MaterialExpressionAdd'MaterialGraphNode_15.MaterialExpressionAdd_15'")
      MaterialExpressionEditorX=-720
      MaterialExpressionEditorY=840
      MaterialExpressionGuid=9396FBC39635DE47A81DCAB7CA95551B
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionCosine'MaterialExpressionCosine_16'"
   NodePosX=-720
   NodePosY=840
   NodeGuid=2F561D8A87442E4CC0B0AAB336D9B25E
   CustomProperties Pin (PinId=B13C7ECD96FF769275AB29243E746BEA,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_15 034894266A1B2338D7831149C68A1843,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=98099156359D520A1321B306EB1B45FB,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_20 80772475ED3530F1B1FB40ABAF9B8E73,MaterialGraphNode_24 B7F4B497D0C0B8E154A3CC5E7BA6A1AD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_17"
   Begin Object Class=/Script/Engine.MaterialExpressionSine Name="MaterialExpressionSine_17"
   End Object
   Begin Object Name="MaterialExpressionSine_17"
      Input=(Expression="/Script/Engine.MaterialExpressionAdd'MaterialGraphNode_15.MaterialExpressionAdd_15'")
      MaterialExpressionEditorX=-720
      MaterialExpressionEditorY=1000
      MaterialExpressionGuid=D1113759E535D15C4FCEDC01267F13CF
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionSine'MaterialExpressionSine_17'"
   NodePosX=-720
   NodePosY=1000
   NodeGuid=98F152828DEF6FFEC18F4B947AA2FA4D
   CustomProperties Pin (PinId=28D76B13DC8BC43F8668E1579E4F0244,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_15 034894266A1B2338D7831149C68A1843,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=B6952EC9D09C56E109DB3E60A15BD976,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_21 90EACF61F199500F9DCEF265CD24C5EF,MaterialGraphNode_23 EBE80BC1422D03C656324170BD148522,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_18"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_18"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_18"
      R=True
      G=False
      B=False
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_10.MaterialExpressionMultiply_10'")
      MaterialExpressionEditorX=-840
      MaterialExpressionEditorY=420
      MaterialExpressionGuid=EC3349A441455A80FE05A527A41D7945
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_18'"
   NodePosX=-840
   NodePosY=420
   NodeGuid=A79D5DCFE52E314C7D9BDCD260D253FD
   CustomProperties Pin (PinId=F9EA7CE187E93415B0634FDBF7936548,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_10 D50C415DCD717EB02DF05F60F2D27973,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=BE9FC3E4F5586C596A2F5802EEE0BCDD,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_20 51AC06E35A8FBB460F676B40043EA363,MaterialGraphNode_23 0A5BF187265FDB6113C1D95B19E92710,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_19"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_19"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_19"
      R=False
      G=True
      B=False
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_10.MaterialExpressionMultiply_10'")
      MaterialExpressionEditorX=-840
      MaterialExpressionEditorY=560
      MaterialExpressionGuid=0350100DAB0FF3EA5CBF256208B5E115
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_19'"
   NodePosX=-840
   NodePosY=560
   NodeGuid=1852C2EB77C12F21F9C555C0029473E3
   CustomProperties Pin (PinId=9AA9A6C5D20EB53EFBDFAE256E7887B2,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_10 D50C415DCD717EB02DF05F60F2D27973,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=01D04AB48CC5D10031E3B435F827F8CD,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_21 776A3154F3A30CA54800BC6C39D7E290,MaterialGraphNode_24 E2A41C880A3196C7FC53D37F59FB41FC,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_20"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_20"
   End Object
   Begin Object Name="MaterialExpressionMultiply_20"
      A=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_18.MaterialExpressionComponentMask_18'")
      B=(Expression="/Script/Engine.MaterialExpressionCosine'MaterialGraphNode_16.MaterialExpressionCosine_16'")
      MaterialExpressionEditorX=-540
      MaterialExpressionEditorY=380
      MaterialExpressionGuid=48A03753B4C06768AD7B3181EECF997C
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_20'"
   NodePosX=-540
   NodePosY=380
   NodeGuid=038F05C2F8469CF8D71E2302BE6005F9
   CustomProperties Pin (PinId=51AC06E35A8FBB460F676B40043EA363,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_18 BE9FC3E4F5586C596A2F5802EEE0BCDD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=80772475ED3530F1B1FB40ABAF9B8E73,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 98099156359D520A1321B306EB1B45FB,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=6FD4CFDCB066A0A860173026BA50AC88,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_22 F90BA16B203B45EB951300490769A01C,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_21"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_21"
   End Object
   Begin Object Name="MaterialExpressionMultiply_21"
      A=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_19.MaterialExpressionComponentMask_19'")
      B=(Expression="/Script/Engine.MaterialExpressionSine'MaterialGraphNode_17.MaterialExpressionSine_17'")
      MaterialExpressionEditorX=-540
      MaterialExpressionEditorY=520
      MaterialExpressionGuid=C545A7FE5EE72C9AD04733CACC5E7CB8
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_21'"
   NodePosX=-540
   NodePosY=520
   NodeGuid=C8381517BCED8AC4528D167DC993B7E0
   CustomProperties Pin (PinId=776A3154F3A30CA54800BC6C39D7E290,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_19 01D04AB48CC5D10031E3B435F827F8CD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=90EACF61F199500F9DCEF265CD24C5EF,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_17 B6952EC9D09C56E109DB3E60A15BD976,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=ABA4AFC0CB845DD2821AE74501A6D48A,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_22 7B10EF65AE84EFDF14E66AEEA03A2C46,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_22"
   Begin Object Class=/Script/Engine.MaterialExpressionSubtract Name="MaterialExpressionSubtract_22"
   End Object
   Begin Object Name="MaterialExpressionSubtract_22"
      A=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_20.MaterialExpressionMultiply_20'")
      B=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_21.MaterialExpressionMultiply_21'")
      MaterialExpressionEditorX=-320
      MaterialExpressionEditorY=440
      MaterialExpressionGuid=BF1D419C0637F26161D265ADBEC8C44A
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionSubtract'MaterialExpressionSubtract_22'"
   NodePosX=-320
   NodePosY=440
   NodeGuid=9849AA21445A956559217CA85361CE81
   CustomProperties Pin (PinId=F90BA16B203B45EB951300490769A01C,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_20 6FD4CFDCB066A0A860173026BA50AC88,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=7B10EF65AE84EFDF14E66AEEA03A2C46,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_21 ABA4AFC0CB845DD2821AE74501A6D48A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=575AB16213B58DD46C346FEBE00A1ABC,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_26 6F3782764C60D9CA0D6CA2D6125A958A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_23"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_23"
   End Object
   Begin Object Name="MaterialExpressionMultiply_23"
      A=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_18.MaterialExpressionComponentMask_18'")
      B=(Expression="/Script/Engine.MaterialExpressionSine'MaterialGraphNode_17.MaterialExpressionSine_17'")
      MaterialExpressionEditorX=-540
      MaterialExpressionEditorY=680
      MaterialExpressionGuid=B94D4EFD3B86F4098492B835A3E2D03A
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_23'"
   NodePosX=-540
   NodePosY=680
   NodeGuid=66A28F0450647E0DC471D77E003D39A3
   CustomProperties Pin (PinId=0A5BF187265FDB6113C1D95B19E92710,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_18 BE9FC3E4F5586C596A2F5802EEE0BCDD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=EBE80BC1422D03C656324170BD148522,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_17 B6952EC9D09C56E109DB3E60A15BD976,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=151E92BBDCFD7903664C2CAB2037284A,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_25 74A120D06B92188D0CF87D9FE6E278EA,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_24"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_24"
   End Object
   Begin Object Name="MaterialExpressionMultiply_24"
      A=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_19.MaterialExpressionComponentMask_19'")
      B=(Expression="/Script/Engine.MaterialExpressionCosine'MaterialGraphNode_16.MaterialExpressionCosine_16'")
      MaterialExpressionEditorX=-540
      MaterialExpressionEditorY=820
      MaterialExpressionGuid=4371082A4E03B29A0E9BB7B4BE6BE912
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_24'"
   NodePosX=-540
   NodePosY=820
   NodeGuid=48138AD89D88B61D14B8BCBA44F00C92
   CustomProperties Pin (PinId=E2A41C880A3196C7FC53D37F59FB41FC,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_19 01D04AB48CC5D10031E3B435F827F8CD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=B7F4B497D0C0B8E154A3CC5E7BA6A1AD,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 98099156359D520A1321B306EB1B45FB,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=65AF36221D55AED6D8E303ECEEC78B8D,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_25 146AE2CE810E2AAE31362A5AB5998DC0,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_25"
   Begin Object Class=/Script/Engine.MaterialExpressionAdd Name="MaterialExpressionAdd_25"
   End Object
   Begin Object Name="MaterialExpressionAdd_25"
      A=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_23.MaterialExpressionMultiply_23'")
      B=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_24.MaterialExpressionMultiply_24'")
      MaterialExpressionEditorX=-320
      MaterialExpressionEditorY=740
      MaterialExpressionGuid=6EDACAA1293B9A639707193DCD0BFEFA
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionAdd'MaterialExpressionAdd_25'"
   NodePosX=-320
   NodePosY=740
   NodeGuid=7031B7F6806D50D4356D22349B65CD4B
   CustomProperties Pin (PinId=74A120D06B92188D0CF87D9FE6E278EA,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_23 151E92BBDCFD7903664C2CAB2037284A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=146AE2CE810E2AAE31362A5AB5998DC0,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_24 65AF36221D55AED6D8E303ECEEC78B8D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=7EC0DCB755F1C6B29996E0CC37A35455,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_26 23118955EC8D1A6FA2DF31552DA57B23,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_26"
   Begin Object Class=/Script/Engine.MaterialExpressionAppendVector Name="MaterialExpressionAppendVector_26"
   End Object
   Begin Object Name="MaterialExpressionAppendVector_26"
      A=(Expression="/Script/Engine.MaterialExpressionSubtract'MaterialGraphNode_22.MaterialExpressionSubtract_22'")
      B=(Expression="/Script/Engine.MaterialExpressionAdd'MaterialGraphNode_25.MaterialExpressionAdd_25'")
      MaterialExpressionEditorX=-100
      MaterialExpressionEditorY=580
      MaterialExpressionGuid=974C453EA5683876482E9FBDF22FCE85
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionAppendVector'MaterialExpressionAppendVector_26'"
   NodePosX=-100
   NodePosY=580
   NodeGuid=CD9C880B1602DE96188425FADDFB0292
   CustomProperties Pin (PinId=6F3782764C60D9CA0D6CA2D6125A958A,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_22 575AB16213B58DD46C346FEBE00A1ABC,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=23118955EC8D1A6FA2DF31552DA57B23,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_25 7EC0DCB755F1C6B29996E0CC37A35455,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=4A43E403CB51D2CBDEA812D0E0DE3029,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_34 C67AF146B08018C12E514611C58D436C,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_27"
   Begin Object Class=/Script/Engine.MaterialExpressionConstant Name="MaterialExpressionConstant_27"
   End Object
   Begin Object Name="MaterialExpressionConstant_27"
      R=31.7
      MaterialExpressionEditorX=-1440
      MaterialExpressionEditorY=1160
      MaterialExpressionGuid=C5A311E2D75918AB8CE9F26733EAE761
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionConstant'MaterialExpressionConstant_27'"
   NodePosX=-1440
   NodePosY=1160
   NodeGuid=8DFDC5BC7168BD183BA54510E8D6B77A
   CustomProperties Pin (PinId=DFFFA1FD01DED55794BDF42D898280EB,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_28 3EDFB12E27984ED969DBACC84084DE58,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_28"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_28"
   End Object
   Begin Object Name="MaterialExpressionMultiply_28"
      A=(Expression="/Script/Engine.MaterialExpressionPerInstanceRandom'MaterialGraphNode_11.MaterialExpressionPerInstanceRandom_11'")
      B=(Expression="/Script/Engine.MaterialExpressionConstant'MaterialGraphNode_27.MaterialExpressionConstant_27'")
      MaterialExpressionEditorX=-1200
      MaterialExpressionEditorY=1180
      MaterialExpressionGuid=D1AAF51A2A24FD0DBCA528858EDCE36D
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_28'"
   NodePosX=-1200
   NodePosY=1180
   NodeGuid=7108851D88C3B45B1DEB92F15930D517
   CustomProperties Pin (PinId=A3CCE5E75F8EE1B0920B54D398F1FEDC,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_11 9C7F72AC407FDBD133F377FB5A55DA73,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=3EDFB12E27984ED969DBACC84084DE58,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_27 DFFFA1FD01DED55794BDF42D898280EB,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=8187F11B07B45D7DB9CB8FED3647D8FC,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_29 51D0CEEBB42E29F418772C6B18908FD4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_29"
   Begin Object Class=/Script/Engine.MaterialExpressionFrac Name="MaterialExpressionFrac_29"
   End Object
   Begin Object Name="MaterialExpressionFrac_29"
      Input=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_28.MaterialExpressionMultiply_28'")
      MaterialExpressionEditorX=-980
      MaterialExpressionEditorY=1180
      MaterialExpressionGuid=EC3BECA8D40320DEE2D5294DB0FA5B67
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionFrac'MaterialExpressionFrac_29'"
   NodePosX=-980
   NodePosY=1180
   NodeGuid=6AC39102CD68CAABED863723BC02EE72
   CustomProperties Pin (PinId=51D0CEEBB42E29F418772C6B18908FD4,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_28 8187F11B07B45D7DB9CB8FED3647D8FC,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=222368EC8AA6431C8F7B2482FB1E5750,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_30 19A25E02BD863C69520BF4D352896975,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_30"
   Begin Object Class=/Script/Engine.MaterialExpressionAppendVector Name="MaterialExpressionAppendVector_30"
   End Object
   Begin Object Name="MaterialExpressionAppendVector_30"
      A=(Expression="/Script/Engine.MaterialExpressionPerInstanceRandom'MaterialGraphNode_11.MaterialExpressionPerInstanceRandom_11'")
      B=(Expression="/Script/Engine.MaterialExpressionFrac'MaterialGraphNode_29.MaterialExpressionFrac_29'")
      MaterialExpressionEditorX=-760
      MaterialExpressionEditorY=1180
      MaterialExpressionGuid=B3F6093B4C2B2A882FECA4A0CBD852D6
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionAppendVector'MaterialExpressionAppendVector_30'"
   NodePosX=-760
   NodePosY=1180
   NodeGuid=1A021A54FFF1F2E2EBE77341CB0030EC
   CustomProperties Pin (PinId=EDC3A9D6DE42C0FA78FBA1D86D8760EE,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_11 9C7F72AC407FDBD133F377FB5A55DA73,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=19A25E02BD863C69520BF4D352896975,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_29 222368EC8AA6431C8F7B2482FB1E5750,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=4725E1B50BEE197875C61EB145A52251,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_31 2EAA9A5BA59692A7354249956AC61C81,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_31"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_31"
   End Object
   Begin Object Name="MaterialExpressionMultiply_31"
      A=(Expression="/Script/Engine.MaterialExpressionAppendVector'MaterialGraphNode_30.MaterialExpressionAppendVector_30'")
      B=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_6.MaterialExpressionScalarParameter_6'")
      MaterialExpressionEditorX=-520
      MaterialExpressionEditorY=1180
      MaterialExpressionGuid=6F49BC8D56DB69804AF496C53EFCD2E3
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_31'"
   NodePosX=-520
   NodePosY=1180
   NodeGuid=76D49F995F34D86BDECC39056AEB9761
   CustomProperties Pin (PinId=2EAA9A5BA59692A7354249956AC61C81,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_30 4725E1B50BEE197875C61EB145A52251,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A26C2A82E3D81C0E6B120B6D553CD00D,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_6 185FEE3512950F8BA3F623FB30C21E34,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=36ED5C64AD915CFE221C1A6103326319,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_33 CFB50A4883E83D07859D1776D6A1A03A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_32"
   Begin Object Class=/Script/Engine.MaterialExpressionAppendVector Name="MaterialExpressionAppendVector_32"
   End Object
   Begin Object Name="MaterialExpressionAppendVector_32"
      A=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_4.MaterialExpressionScalarParameter_4'")
      B=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_5.MaterialExpressionScalarParameter_5'")
      MaterialExpressionEditorX=-520
      MaterialExpressionEditorY=60
      MaterialExpressionGuid=808F5E664E12BE6069AB4681654DA105
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionAppendVector'MaterialExpressionAppendVector_32'"
   NodePosX=-520
   NodePosY=60
   NodeGuid=E1CE63E2964C0AA46993A4001390A35D
   CustomProperties Pin (PinId=F2B4919C2DE308DBA72AAAFDB999BB33,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_4 1FF235DE50F90B96C510211F962BB7F4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=C793DE4C28DD315351B657CCAA31DE10,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_5 1F730D3DEB877BD5C9383D846F68E582,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=5724F1CB264DD713D295FAFA2E0B93F9,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_33 A6ACB1B1E5F563FFEFE09AC863E597EA,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_33"
   Begin Object Class=/Script/Engine.MaterialExpressionAdd Name="MaterialExpressionAdd_33"
   End Object
   Begin Object Name="MaterialExpressionAdd_33"
      A=(Expression="/Script/Engine.MaterialExpressionAppendVector'MaterialGraphNode_32.MaterialExpressionAppendVector_32'")
      B=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_31.MaterialExpressionMultiply_31'")
      MaterialExpressionEditorX=-260
      MaterialExpressionEditorY=1040
      MaterialExpressionGuid=9E8F8F2FC28D53AE60F62C7AEF1FBB55
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionAdd'MaterialExpressionAdd_33'"
   NodePosX=-260
   NodePosY=1040
   NodeGuid=3139DCAA96FB1C9BAC7CC6DBD0A4F3AC
   CustomProperties Pin (PinId=A6ACB1B1E5F563FFEFE09AC863E597EA,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_32 5724F1CB264DD713D295FAFA2E0B93F9,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=CFB50A4883E83D07859D1776D6A1A03A,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_31 36ED5C64AD915CFE221C1A6103326319,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=64E26DFBECE14B80A106F31A1C486218,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_35 FC9C219AF025B5D0E2FF34E354BF07AC,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_34"
   Begin Object Class=/Script/Engine.MaterialExpressionAdd Name="MaterialExpressionAdd_34"
   End Object
   Begin Object Name="MaterialExpressionAdd_34"
      A=(Expression="/Script/Engine.MaterialExpressionAppendVector'MaterialGraphNode_26.MaterialExpressionAppendVector_26'")
      B=(Expression="/Script/Engine.MaterialExpressionConstant2Vector'MaterialGraphNode_8.MaterialExpressionConstant2Vector_8'")
      MaterialExpressionEditorX=180
      MaterialExpressionEditorY=580
      MaterialExpressionGuid=C2CD81CCB5EE8403B84C1EAE5685873F
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionAdd'MaterialExpressionAdd_34'"
   NodePosX=180
   NodePosY=580
   NodeGuid=726D91616A971F0A9E83BE1FE245263A
   CustomProperties Pin (PinId=C67AF146B08018C12E514611C58D436C,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_26 4A43E403CB51D2CBDEA812D0E0DE3029,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A9ED94DBFF991121A6C65B15CA0CACD5,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_8 28B6AF48E4AB5E4886580D77496D5501,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=7A4A0CCBC5675B28B5BAE8870A49EB29,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_35 BB7E5F8A3C4CCDF063DBC4B6A9ED5DF3,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_35"
   Begin Object Class=/Script/Engine.MaterialExpressionAdd Name="MaterialExpressionAdd_35"
   End Object
   Begin Object Name="MaterialExpressionAdd_35"
      A=(Expression="/Script/Engine.MaterialExpressionAdd'MaterialGraphNode_34.MaterialExpressionAdd_34'")
      B=(Expression="/Script/Engine.MaterialExpressionAdd'MaterialGraphNode_33.MaterialExpressionAdd_33'")
      MaterialExpressionEditorX=420
      MaterialExpressionEditorY=720
      MaterialExpressionGuid=C710029558B8D5F4F3E5068935C6F846
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionAdd'MaterialExpressionAdd_35'"
   NodePosX=420
   NodePosY=720
   NodeGuid=E21A9025049B9836878BB7ECC1BE9B72
   CustomProperties Pin (PinId=BB7E5F8A3C4CCDF063DBC4B6A9ED5DF3,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_34 7A4A0CCBC5675B28B5BAE8870A49EB29,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=FC9C219AF025B5D0E2FF34E354BF07AC,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_33 64E26DFBECE14B80A106F31A1C486218,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=74902E3596FB583A3B18756EA4A0DEBD,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object
Nodes: Multiply (x8), Add (x5), ScalarParameter (x5), AppendVector (x3), Comment (x2), ComponentMask (x2), Constant (x2), Subtract (x2), Constant2Vector, Cosine, Divide, Frac, Material, PerInstanceRandom, Sine, TextureCoordinate
