Description

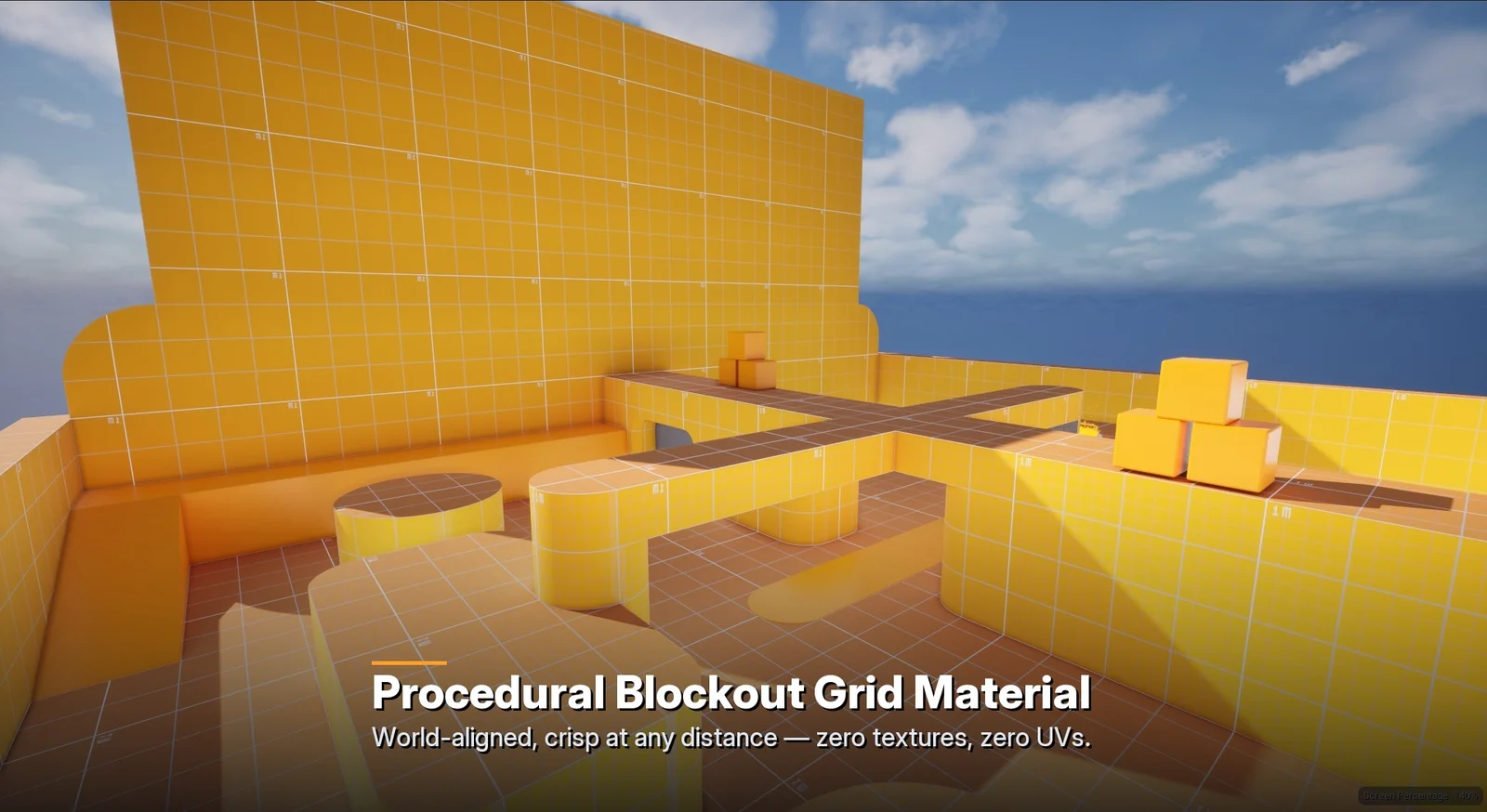

Procedural Blockout Grid World-aligned, fully procedural, zero textures.
A clean, production-grade grid for greyboxing and level layout. Lines are generated in world space and stay crisp at any distance, no UVs. Drop it on anything, floors, walls, ceilings, ramps, curves, modular pieces and the cell size stays consistent everywhere, so you can count cells to read scale at a glance.

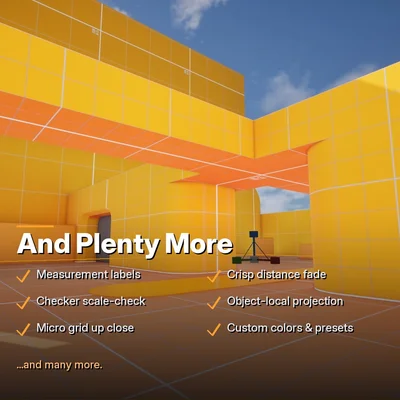

Features
Multi-scale grid: Major + minor lines, plus an optional near-camera micro grid
Auto measurement labels: Every major tile prints its real size (1m, 10m, anything you set)

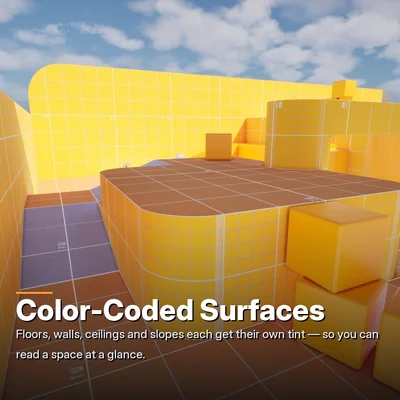

Color-coded surfaces: Floors, walls, ceilings and slopes each get their own tint
Checker scale-check: Stretched or mis-scaled surfaces jump right out
Distance fade: Minor lines drop away so big shapes read clean
World-aligned, or object-local to follow a rotated piece
Fully customizable: Recolor, rescale and switch modes from a Material Instance
Opaque · Default Lit · Nanite & TSR-safe · zero textures
How to use
Create a Material
Paste the graph (Ctrl+V) and connect the five labeled output nodes to the result node.
Hit Apply, drop it on your blockout. Make a Material Instance to tweak the parameters
material graph
Want this graph on your blog or forum?
1 comment

H
Haze5d ago
Comment test
source
View T3D source (273 KB)expand
Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_0"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C0"
   End Object
   Begin Object Name="MaterialExpressionComment_C0"
      SizeX=540
      SizeY=460
      Text="01 Base Surface"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-2700
      MaterialExpressionEditorY=-2640
      MaterialExpressionGuid=83FEE7038C4216FF71B713D25AA6EA31
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C0'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-2700
   NodePosY=-2640
   NodeWidth=540
   NodeHeight=460
   NodeComment="01 Base Surface"
   NodeGuid=D0FE5BD83DA6C5C377888F000B2DC387
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_1"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C1"
   End Object
   Begin Object Name="MaterialExpressionComment_C1"
      SizeX=540
      SizeY=640
      Text="02 Major Grid"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-2700
      MaterialExpressionEditorY=-1740
      MaterialExpressionGuid=A318A89C01A695D371D95163B13D662E
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C1'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-2700
   NodePosY=-1740
   NodeWidth=540
   NodeHeight=640
   NodeComment="02 Major Grid"
   NodeGuid=570840589B5250BDE2896AAF2C64DAC6
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_2"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C2"
   End Object
   Begin Object Name="MaterialExpressionComment_C2"
      SizeX=540
      SizeY=640
      Text="03 Minor Grid"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-2700
      MaterialExpressionEditorY=-1060
      MaterialExpressionGuid=6776C7F6BD3ACEFB21CB3684D8C7EF2F
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C2'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-2700
   NodePosY=-1060
   NodeWidth=540
   NodeHeight=640
   NodeComment="03 Minor Grid"
   NodeGuid=C1C129140F2B64FB349C4DBB87088915
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_3"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C3"
   End Object
   Begin Object Name="MaterialExpressionComment_C3"
      SizeX=540
      SizeY=460
      Text="04 Readability"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-2700
      MaterialExpressionEditorY=-380
      MaterialExpressionGuid=04DBA3BF166AEE4CB2911A472D07DAAC
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C3'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-2700
   NodePosY=-380
   NodeWidth=540
   NodeHeight=460
   NodeComment="04 Readability"
   NodeGuid=51EE7E40782A1CAE868EBF290C350F95
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_4"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C4"
   End Object
   Begin Object Name="MaterialExpressionComment_C4"
      SizeX=540
      SizeY=280
      Text="05 Projection"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-2700
      MaterialExpressionEditorY=120
      MaterialExpressionGuid=EB971298CA43FA3CA730F8FEB26126DF
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C4'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-2700
   NodePosY=120
   NodeWidth=540
   NodeHeight=280
   NodeComment="05 Projection"
   NodeGuid=4839B539106E9CD7311ABE4FE4D205D2
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_5"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C5"
   End Object
   Begin Object Name="MaterialExpressionComment_C5"
      SizeX=540
      SizeY=640
      Text="06 Distance Fade"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-2700
      MaterialExpressionEditorY=440
      MaterialExpressionGuid=6CF6D21A807BCB397923122A2083E70A
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C5'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-2700
   NodePosY=440
   NodeWidth=540
   NodeHeight=640
   NodeComment="06 Distance Fade"
   NodeGuid=B83D5CC6A5391B06563B6DA12414D72C
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_6"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C6"
   End Object
   Begin Object Name="MaterialExpressionComment_C6"
      SizeX=540
      SizeY=1000
      Text="07 Orientation Tint"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-3420
      MaterialExpressionEditorY=-2700
      MaterialExpressionGuid=E82553F7729D6A8DF0AFC2C0B498DC61
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C6'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-3420
   NodePosY=-2700
   NodeWidth=540
   NodeHeight=1000
   NodeComment="07 Orientation Tint"
   NodeGuid=CBE0FA05500D29C416DA587A3A2E4F32
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_7"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C7"
   End Object
   Begin Object Name="MaterialExpressionComment_C7"
      SizeX=540
      SizeY=640
      Text="08 Checker"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-3420
      MaterialExpressionEditorY=-1640
      MaterialExpressionGuid=AA2201C3E1F681D30D0E7B59E0D17DFA
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C7'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-3420
   NodePosY=-1640
   NodeWidth=540
   NodeHeight=640
   NodeComment="08 Checker"
   NodeGuid=8E769E4556004EF817136CBE3B04218A
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_8"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C8"
   End Object
   Begin Object Name="MaterialExpressionComment_C8"
      SizeX=540
      SizeY=640
      Text="09 Edge Readability"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-3420
      MaterialExpressionEditorY=-940
      MaterialExpressionGuid=3E268BC8C18D60F9D7C2AA619B50859B
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C8'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-3420
   NodePosY=-940
   NodeWidth=540
   NodeHeight=640
   NodeComment="09 Edge Readability"
   NodeGuid=B78839122BA34241F38A7DA46AC63445
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_9"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C9"
   End Object
   Begin Object Name="MaterialExpressionComment_C9"
      SizeX=540
      SizeY=1000
      Text="10 Micro Grid"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-3420
      MaterialExpressionEditorY=-240
      MaterialExpressionGuid=9C406A73FEF2827EF9172AE64B7F8CEC
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C9'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-3420
   NodePosY=-240
   NodeWidth=540
   NodeHeight=1000
   NodeComment="10 Micro Grid"
   NodeGuid=CF3ABC9FED667515224C4C845A808C98
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_10"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C10"
   End Object
   Begin Object Name="MaterialExpressionComment_C10"
      SizeX=540
      SizeY=640
      Text="11 Slope / Walkability"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-900
      MaterialExpressionEditorY=-530
      MaterialExpressionGuid=13A8AD346B27C758A58CF1E025D7CEDE
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C10'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-900
   NodePosY=-530
   NodeWidth=540
   NodeHeight=640
   NodeComment="11 Slope / Walkability"
   NodeGuid=24F98811F63B53AE1764EF44AF30AFA9
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_11"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C11"
   End Object
   Begin Object Name="MaterialExpressionComment_C11"
      SizeX=540
      SizeY=460
      Text="12 Labels"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-900
      MaterialExpressionEditorY=170
      MaterialExpressionGuid=256AB955A5D3D0861AFA6F462BD06C21
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C11'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-900
   NodePosY=170
   NodeWidth=540
   NodeHeight=460
   NodeComment="12 Labels"
   NodeGuid=F1C9E264C87ACFFC4B655DB5D7CF9C5E
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_12"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C12"
   End Object
   Begin Object Name="MaterialExpressionComment_C12"
      SizeX=300
      SizeY=240
      Text="Emissive Color"
      CommentColor=(R=0.033105,G=1.000000,B=0.132868,A=1.000000)
      MaterialExpressionEditorX=1500
      MaterialExpressionEditorY=-2080
      MaterialExpressionGuid=EA329C2942D3349F62D6A51796809720
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C12'"
   CommentColor=(R=0.033105,G=1.000000,B=0.132868,A=1.000000)
   NodePosX=1500
   NodePosY=-2080
   NodeWidth=300
   NodeHeight=240
   NodeComment="Emissive Color"
   NodeGuid=B97D929D50EE1318AEB2A74A62FFBCB6
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_13"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C13"
   End Object
   Begin Object Name="MaterialExpressionComment_C13"
      SizeX=300
      SizeY=260
      Text="Roughness"
      CommentColor=(R=0.033105,G=1.000000,B=0.132868,A=1.000000)
      MaterialExpressionEditorX=1500
      MaterialExpressionEditorY=-1780
      MaterialExpressionGuid=59EC842ADFD6A13D1DA2F450BD2432D9
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C13'"
   CommentColor=(R=0.033105,G=1.000000,B=0.132868,A=1.000000)
   NodePosX=1500
   NodePosY=-1780
   NodeWidth=300
   NodeHeight=260
   NodeComment="Roughness"
   NodeGuid=D630F007F5ECE12ACF736B5842805C1A
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_14"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C14"
   End Object
   Begin Object Name="MaterialExpressionComment_C14"
      SizeX=300
      SizeY=220
      Text="Metallic"
      CommentColor=(R=0.033105,G=1.000000,B=0.132868,A=1.000000)
      MaterialExpressionEditorX=1500
      MaterialExpressionEditorY=-1480
      MaterialExpressionGuid=BC08DCB229174FD370A4D9E0D2BC8865
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C14'"
   CommentColor=(R=0.033105,G=1.000000,B=0.132868,A=1.000000)
   NodePosX=1500
   NodePosY=-1480
   NodeWidth=300
   NodeHeight=220
   NodeComment="Metallic"
   NodeGuid=1FEBF6F836F2DF5F5DFD65D7172C789F
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_15"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C15"
   End Object
   Begin Object Name="MaterialExpressionComment_C15"
      SizeX=300
      SizeY=220
      Text="Specular"
      CommentColor=(R=0.033105,G=1.000000,B=0.132868,A=1.000000)
      MaterialExpressionEditorX=1500
      MaterialExpressionEditorY=-1220
      MaterialExpressionGuid=B368BAE778EA8D86A472E6F517101D5F
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C15'"
   CommentColor=(R=0.033105,G=1.000000,B=0.132868,A=1.000000)
   NodePosX=1500
   NodePosY=-1220
   NodeWidth=300
   NodeHeight=220
   NodeComment="Specular"
   NodeGuid=EB8F50628A4B6D7C6CB0AFA261F662D2
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_16"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C16"
   End Object
   Begin Object Name="MaterialExpressionComment_C16"
      SizeX=320
      SizeY=300
      Text="Base Color"
      CommentColor=(R=0.033105,G=1.000000,B=0.132868,A=1.000000)
      MaterialExpressionEditorX=1500
      MaterialExpressionEditorY=-940
      MaterialExpressionGuid=4EC1C1C2B51989F2F6566446943E3140
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C16'"
   CommentColor=(R=0.033105,G=1.000000,B=0.132868,A=1.000000)
   NodePosX=1500
   NodePosY=-940
   NodeWidth=320
   NodeHeight=300
   NodeComment="Base Color"
   NodeGuid=A3BACBD9E0259CA68788A410000475A7
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_17"
   Begin Object Class=/Script/Engine.MaterialExpressionVectorParameter Name="MaterialExpressionVectorParameter_17"
   End Object
   Begin Object Name="MaterialExpressionVectorParameter_17"
      ParameterName="BaseColor"
      DefaultValue=(R=0.16,G=0.17,B=0.19,A=1)
      Group="01 Base Surface"
      Desc="Fill colour of the surface between grid lines. Default is a neutral mid grey."
      MaterialExpressionEditorX=-2660
      MaterialExpressionEditorY=-2540
      MaterialExpressionGuid=C9BC2D499BB661348F2E7EF7CB174EDD
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVectorParameter'MaterialExpressionVectorParameter_17'"
   NodePosX=-2660
   NodePosY=-2540
   NodeGuid=96A5ABECD5466D2611FE58CC0BE7EFE2
   CustomProperties Pin (PinId=9B63F05690AFE0F0561BD97BFC073B5F,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_72 ACB7C2F499D08C0B2FB76883A11EEDC9,MaterialGraphNode_73 454E4D0FE4942D4F351404A149C66222,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=429AC7CB0F72C2FA7DBEF1A67BF76CB3,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=DEE4C2EC5A37322E5C034E1CCD3FAC25,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=13040050E41E0410DBFECF201EF48878,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=B7F232956A5173F2C607D8FCC974647D,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_18"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_18"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_18"
      ParameterName="BaseRoughness"
      DefaultValue=0.85
      SliderMin=0
      SliderMax=1
      Group="01 Base Surface"
      Desc="Roughness of the base surface. High = matte, so lighting does not distract from the grid."
      MaterialExpressionEditorX=-2660
      MaterialExpressionEditorY=-2360
      MaterialExpressionGuid=DC5B554F6D8C2D3546970DEBDF733180
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_18'"
   NodePosX=-2660
   NodePosY=-2360
   NodeGuid=F344838B90F1D6530C2C2C243CA3EE08
   CustomProperties Pin (PinId=403999A248644B549E4AD72EE3EF888B,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_97 CDF6E1BB1EE2909C1251FCBCE33B3B62,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_19"
   Begin Object Class=/Script/Engine.MaterialExpressionVectorParameter Name="MaterialExpressionVectorParameter_19"
   End Object
   Begin Object Name="MaterialExpressionVectorParameter_19"
      ParameterName="MajorColor"
      DefaultValue=(R=0.82,G=0.86,B=0.95,A=1)
      Group="02 Major Grid"
      Desc="Colour of the major (every-Nth) grid lines. Default is a bright cool white so big divisions read first."
      MaterialExpressionEditorX=-2660
      MaterialExpressionEditorY=-1640
      MaterialExpressionGuid=B008FE6EB1D5AF81E40CAC56103C5F0C
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVectorParameter'MaterialExpressionVectorParameter_19'"
   NodePosX=-2660
   NodePosY=-1640
   NodeGuid=3F1B4AA3641C8CB8BB052F4422491E05
   CustomProperties Pin (PinId=BF8215532A23DCDE062BEA7A49A098CA,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_101 BE4AD083518C86B869E7E7DE45B4DFE3,MaterialGraphNode_86 2E8D2AC121962DBAAFC9B94228587AF7,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=0B9D3B7290B66093445A20AD0A89067C,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=4BE41A16EB9F51B012637B6C970C4074,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=DA12D9FEDB67337FC032B84DC1B35EEF,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=972C69D687E6F67CE481E77777F35991,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_20"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_20"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_20"
      ParameterName="MinorCellsPerMajor"
      DefaultValue=10
      SliderMin=2
      SliderMax=20
      Group="02 Major Grid"
      Desc="How many minor cells sit between two major lines. 10 minor cells of 1 m gives a 10 m major grid."
      MaterialExpressionEditorX=-2660
      MaterialExpressionEditorY=-1460
      MaterialExpressionGuid=429C92735A27252B5615753F1687E3A4
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_20'"
   NodePosX=-2660
   NodePosY=-1460
   NodeGuid=5B56509297F725897A2922D9324664DA
   CustomProperties Pin (PinId=D3F2CBF299B9E29989796050A09F6506,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_62 203BC6107D72FEF16C8E084C3323A66F,MaterialGraphNode_Custom_64 6C78F49975369EF9A13931154C812B3C,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_21"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_21"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_21"
      ParameterName="MajorLineWidth"
      DefaultValue=4
      SliderMin=0.5
      SliderMax=30
      Group="02 Major Grid"
      Desc="Major line thickness in world centimetres. Clamps to at least one pixel at distance so it never disappears."
      MaterialExpressionEditorX=-2660
      MaterialExpressionEditorY=-1280
      MaterialExpressionGuid=BF5D03535BF56AD280AD9D712BA0AAB8
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_21'"
   NodePosX=-2660
   NodePosY=-1280
   NodeGuid=FEEAFCD5DDEEC43DFC412D4A4C87833B
   CustomProperties Pin (PinId=C406BA53AA8552EC0F10369906F09E7B,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_64 65AA0E49BDF26D6268CE467794FF880D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_22"
   Begin Object Class=/Script/Engine.MaterialExpressionVectorParameter Name="MaterialExpressionVectorParameter_22"
   End Object
   Begin Object Name="MaterialExpressionVectorParameter_22"
      ParameterName="MinorColor"
      DefaultValue=(R=0.42,G=0.45,B=0.52,A=1)
      Group="03 Minor Grid"
      Desc="Colour of the minor grid lines. Default sits between the base and major so the hierarchy reads cleanly."
      MaterialExpressionEditorX=-2660
      MaterialExpressionEditorY=-960
      MaterialExpressionGuid=CB094ED35582F174D5B448FFE4629A7D
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVectorParameter'MaterialExpressionVectorParameter_22'"
   NodePosX=-2660
   NodePosY=-960
   NodeGuid=70DC22EE7F9A704E1698EFE90FD8C8E0
   CustomProperties Pin (PinId=5ED7132960BF88DC18F7C018070BD536,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_82 3B5F4E4CE4D57383497F16F5935A10A3,MaterialGraphNode_84 D24849CAD2D0CB10E2E498B628AFA351,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=0A58B16560DC8EE2D74A1DFFACF4D0D8,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=0733F0889D75EDAEFAF110FD194B1780,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=20E57CE403A4E91A625B1E63E8B9BA13,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A272548DD78ADF1668C86656DE6AD12A,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_23"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_23"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_23"
      ParameterName="MinorCellSize"
      DefaultValue=100
      SliderMin=10
      SliderMax=1000
      Group="03 Minor Grid"
      Desc="Size of one minor cell in world centimetres. 100 = a 1 m grid. This is the base scale designers count against."
      MaterialExpressionEditorX=-2660
      MaterialExpressionEditorY=-780
      MaterialExpressionGuid=021A0607BD6C329050B9C56093F39F21
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_23'"
   NodePosX=-2660
   NodePosY=-780
   NodeGuid=5D7FE549E030FC981CA28B36395C6A8A
   CustomProperties Pin (PinId=45D0BD93FEF9C4337B73A45276AEBB19,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_62 F47CC515C35AD5406B68C33E9D4C78C6,MaterialGraphNode_63 CFF6711ECBE198F032CB9E10DC7C76F3,MaterialGraphNode_Custom_64 498F8EE39892246E10BD75C370177F2A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_24"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_24"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_24"
      ParameterName="MinorLineWidth"
      DefaultValue=2
      SliderMin=0.25
      SliderMax=20
      Group="03 Minor Grid"
      Desc="Minor line thickness in world centimetres. Kept thinner than the major lines so they sit underneath them."
      MaterialExpressionEditorX=-2660
      MaterialExpressionEditorY=-600
      MaterialExpressionGuid=20134BD52A5E4AC7F54A8D1B13662D1F
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_24'"
   NodePosX=-2660
   NodePosY=-600
   NodeGuid=FA25282F8ADD62B56065F3EA379CB140
   CustomProperties Pin (PinId=DA289C012AEA40CB76B9D5FCCE8DC28C,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_64 3A73F2175E1BFF6A7F876B6CF25DBED3,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_25"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_25"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_25"
      ParameterName="LineEmissiveLift"
      DefaultValue=0.35
      SliderMin=0
      SliderMax=3
      Group="04 Readability"
      Desc="Emissive lift on the grid lines so they stay readable in shadowed blockout areas. 0 = lit only."
      MaterialExpressionEditorX=-2660
      MaterialExpressionEditorY=-280
      MaterialExpressionGuid=1014C6FC7FFDC99AF0051376572A3F29
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_25'"
   NodePosX=-2660
   NodePosY=-280
   NodeGuid=9DB0996EB1CAF96F4565F31912536286
   CustomProperties Pin (PinId=FFC80E12EE45A9606C04E72046FE337E,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_88 FF366EC664B3FAFB35802397D9F1C474,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_26"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_26"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_26"
      ParameterName="LineRoughness"
      DefaultValue=0.5
      SliderMin=0
      SliderMax=1
      Group="04 Readability"
      Desc="Roughness on the grid lines only. Slightly glossier than the base gives lines a subtle catch-light."
      MaterialExpressionEditorX=-2660
      MaterialExpressionEditorY=-100
      MaterialExpressionGuid=DDAF35F324C8F5681AA81C8C6DE58F51
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_26'"
   NodePosX=-2660
   NodePosY=-100
   NodeGuid=B02EE2802F31DE421DB64CC4E071135E
   CustomProperties Pin (PinId=16B733991D56609678537197E005452A,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_97 787A330B8A98C5DFCDBF56FD74B44185,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_27"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_27"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_27"
      ParameterName="ProjectionSharpness"
      DefaultValue=6
      SliderMin=1
      SliderMax=16
      Group="05 Projection"
      Desc="Triplanar blend tightness. Higher = crisper switch between the floor and wall grids at edges; lower = softer blend on curves."
      MaterialExpressionEditorX=-2660
      MaterialExpressionEditorY=220
      MaterialExpressionGuid=8D1DC8EA073E7BD52ED553C88CA6F673
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_27'"
   NodePosX=-2660
   NodePosY=220
   NodeGuid=8675D2E54B3802FBF06E5A3E4C262ED6
   CustomProperties Pin (PinId=17132D54C2CD2DD0B645121FEDB27154,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_64 E4C44D4C8E783A16480F2133264DFA80,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_28"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_28"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_28"
      ParameterName="MinorFadeStart"
      DefaultValue=1500
      SliderMin=100
      SliderMax=10000
      Group="06 Distance Fade"
      Desc="Distance from camera (cm) where minor lines begin fading out. Major lines never fade."
      MaterialExpressionEditorX=-2660
      MaterialExpressionEditorY=540
      MaterialExpressionGuid=9F797F93C8476B7DF26534D5D4419358
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_28'"
   NodePosX=-2660
   NodePosY=540
   NodeGuid=FBB967D59C5B996AD21C333A7D40A661
   CustomProperties Pin (PinId=AF39369DE4A86FA160EA9F5555502267,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_64 190825FAA66C48F4B5B671E9646E677E,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_29"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_29"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_29"
      ParameterName="MinorFadeEnd"
      DefaultValue=6000
      SliderMin=200
      SliderMax=30000
      Group="06 Distance Fade"
      Desc="Distance from camera (cm) where minor lines are fully gone, leaving only the major grid on far surfaces."
      MaterialExpressionEditorX=-2660
      MaterialExpressionEditorY=720
      MaterialExpressionGuid=E7DAAFAA9C0A5CFAC1583866B5BC404A
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_29'"
   NodePosX=-2660
   NodePosY=720
   NodeGuid=46534938C62892F3A97B026A7E859574
   CustomProperties Pin (PinId=FC4729EA8A720467D83CE3628C107CD9,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_64 CF45E8E6490E2CC7190D7953907F9BFD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_30"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_30"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_30"
      ParameterName="FadeCurve"
      DefaultValue=1.5
      SliderMin=0.2
      SliderMax=6
      Group="06 Distance Fade"
      Desc="Shape of the minor fade. 1 = linear, higher = lines hold longer then drop off quickly."
      MaterialExpressionEditorX=-2660
      MaterialExpressionEditorY=900
      MaterialExpressionGuid=EC874BBF0A6871FEF7CC4BC58558F7B4
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_30'"
   NodePosX=-2660
   NodePosY=900
   NodeGuid=588DBFE3625DFC00B41EC34DB37D4CE7
   CustomProperties Pin (PinId=50D725E33F3B813E67F1649F3A78A833,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_64 25F65E929BE81E31C7AB7D5AA2634F17,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_31"
   Begin Object Class=/Script/Engine.MaterialExpressionVectorParameter Name="MaterialExpressionVectorParameter_31"
   End Object
   Begin Object Name="MaterialExpressionVectorParameter_31"
      ParameterName="FloorTint"
      DefaultValue=(R=0.15,G=0.19,B=0.16,A=1)
      Group="07 Orientation Tint"
      Desc="Base-fill tint for upward-facing surfaces (floors). Only used when EnableOrientationTint is on."
      MaterialExpressionEditorX=-3380
      MaterialExpressionEditorY=-2600
      MaterialExpressionGuid=E33D84BF8EDFADF6FCE396FDA7506540
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVectorParameter'MaterialExpressionVectorParameter_31'"
   NodePosX=-3380
   NodePosY=-2600
   NodeGuid=BA6EC27D2B4EE7F9A81026AD07B2A211
   CustomProperties Pin (PinId=B12F4E86F9CF7142ED07ABAC74FE75F2,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_67 6992FCABC9BC44402B80088EABDDE4F9,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=61EAAD6E7A76BAD69772A609E7874FD9,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=74D611942DADB3D88D60B9DF84832F46,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=128BBB8BB750DC1E99DDE3ACF45F61D4,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=D94DEE01F834AD5158CEA882CC4AE29C,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_32"
   Begin Object Class=/Script/Engine.MaterialExpressionVectorParameter Name="MaterialExpressionVectorParameter_32"
   End Object
   Begin Object Name="MaterialExpressionVectorParameter_32"
      ParameterName="WallTint"
      DefaultValue=(R=0.16,G=0.17,B=0.2,A=1)
      Group="07 Orientation Tint"
      Desc="Base-fill tint for vertical surfaces (walls)."
      MaterialExpressionEditorX=-3380
      MaterialExpressionEditorY=-2420
      MaterialExpressionGuid=E42E6DF4D2674E1108C8C68E04BFBD2A
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVectorParameter'MaterialExpressionVectorParameter_32'"
   NodePosX=-3380
   NodePosY=-2420
   NodeGuid=DF86FF5A989C58C36CC141327ED2BE10
   CustomProperties Pin (PinId=AA519F3F8402A6941576F543552E4648,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_68 F26F6EF4C9ABDBD3757853A6A12519E5,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=253F6E36C31015EE12D83C2B71C04981,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=3A764DD7AD35B4FA4F873AE0EFA51308,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A065C195B68DF19A27AE9831626426E5,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=4C3BD0218289B8A5236B9F65F7D0B1EE,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_33"
   Begin Object Class=/Script/Engine.MaterialExpressionVectorParameter Name="MaterialExpressionVectorParameter_33"
   End Object
   Begin Object Name="MaterialExpressionVectorParameter_33"
      ParameterName="CeilingTint"
      DefaultValue=(R=0.19,G=0.17,B=0.15,A=1)
      Group="07 Orientation Tint"
      Desc="Base-fill tint for downward-facing surfaces (ceilings)."
      MaterialExpressionEditorX=-3380
      MaterialExpressionEditorY=-2240
      MaterialExpressionGuid=2F9118D79BF7B916893EDB39381CF591
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVectorParameter'MaterialExpressionVectorParameter_33'"
   NodePosX=-3380
   NodePosY=-2240
   NodeGuid=A6BCF40675BF3F90E30929199C9759AA
   CustomProperties Pin (PinId=2D54DB954F04E0BBFC03E150838B7216,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_69 0B32D28875C180CF6ED4FD80B39457FD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=4FFFF63FA49B0D94DAE133BD0FE17A5E,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=D4E5D8B05FDC3FCC588B7BB0B636774B,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=B11D70A7D7EA1A880750410E5779EE35,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=7A5C29CBD070441DFC08C997D92DBB4A,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_34"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_34"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_34"
      ParameterName="TintStrength"
      DefaultValue=0.3
      SliderMin=0
      SliderMax=1
      Group="07 Orientation Tint"
      Desc="How strongly the orientation tint replaces the base colour. Keep subtle so the grid still reads."
      MaterialExpressionEditorX=-3380
      MaterialExpressionEditorY=-2060
      MaterialExpressionGuid=7DD477F3F78414539476B11116F54A78
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_34'"
   NodePosX=-3380
   NodePosY=-2060
   NodeGuid=F9DFDD4987B5516C4D9CAFEB20147E8D
   CustomProperties Pin (PinId=630E313CB45FCD7CA7C0A74DF447EE9A,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_72 0015F22702846896AE3CA644873C721A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_35"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_35"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_35"
      ParameterName="OrientationSharpness"
      DefaultValue=0.6
      SliderMin=0.1
      SliderMax=0.95
      Group="07 Orientation Tint"
      Desc="World-up threshold splitting floor/ceiling from wall. Higher = only near-flat surfaces count as floor/ceiling, more reads as wall."
      MaterialExpressionEditorX=-3380
      MaterialExpressionEditorY=-1880
      MaterialExpressionGuid=B65E9F8808C20BC2100B18CF9898FC91
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_35'"
   NodePosX=-3380
   NodePosY=-1880
   NodeGuid=0784AEE603ECF0E8A8A5C6EC309080C0
   CustomProperties Pin (PinId=CBB1CC7CFD68665D84D56E8E17FC1AEF,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_64 030CF53736762E1078DF8F05332DBC54,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_36"
   Begin Object Class=/Script/Engine.MaterialExpressionVectorParameter Name="MaterialExpressionVectorParameter_36"
   End Object
   Begin Object Name="MaterialExpressionVectorParameter_36"
      ParameterName="CheckerColorA"
      DefaultValue=(R=0.22,G=0.23,B=0.25,A=1)
      Group="08 Checker"
      Desc="Light square colour for the checker base fill. Only used when EnableChecker is on."
      MaterialExpressionEditorX=-3380
      MaterialExpressionEditorY=-1540
      MaterialExpressionGuid=65ED0875C00F3EB4F667A2C67E6CD484
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVectorParameter'MaterialExpressionVectorParameter_36'"
   NodePosX=-3380
   NodePosY=-1540
   NodeGuid=0D034D51D17EDBE74A2FA89F14B4B983
   CustomProperties Pin (PinId=B8BA020EFD2F588CB0BC92E321D3DBB2,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_74 3E6A7C3AE066DA8E0F43EE3549958A57,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=72F74C1E534116ADFCE65FA2B16E0613,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=39033C0F8230A687E34510B24AFA28C3,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=E78BE32249B89E201BBD7415DEF94CFD,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=2558F9864C4E98201D2549F1DBEEFB44,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_37"
   Begin Object Class=/Script/Engine.MaterialExpressionVectorParameter Name="MaterialExpressionVectorParameter_37"
   End Object
   Begin Object Name="MaterialExpressionVectorParameter_37"
      ParameterName="CheckerColorB"
      DefaultValue=(R=0.1,G=0.11,B=0.12,A=1)
      Group="08 Checker"
      Desc="Dark square colour for the checker base fill."
      MaterialExpressionEditorX=-3380
      MaterialExpressionEditorY=-1360
      MaterialExpressionGuid=476F9EEE3BC6CE5232D2C7CEAD6D039E
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVectorParameter'MaterialExpressionVectorParameter_37'"
   NodePosX=-3380
   NodePosY=-1360
   NodeGuid=FDEB1CB871D6CB8E453A2B91928CA7DA
   CustomProperties Pin (PinId=A7A8AB875A64F7D85782BD1AB37762C2,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_74 808999C579804C8FBE379CC30F5DDEB9,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=756ABC5014D306D3992269B8ECF5EE61,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=93C9F536ED89369C1C4C7E4F60B76700,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=3DF6AF8C979D1A3D7CC10AC24493C743,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=D0C0B4D39BBFC6029F73693B894CCD5B,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_38"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_38"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_38"
      ParameterName="CheckerSize"
      DefaultValue=100
      SliderMin=10
      SliderMax=1000
      Group="08 Checker"
      Desc="Checker square size in world centimetres. Set equal to MinorCellSize to align squares with the grid."
      MaterialExpressionEditorX=-3380
      MaterialExpressionEditorY=-1180
      MaterialExpressionGuid=0915CB29F2E72D78207ED8547B08E00E
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_38'"
   NodePosX=-3380
   NodePosY=-1180
   NodeGuid=64D62DD7E1864E8D251B23F84F6CA20E
   CustomProperties Pin (PinId=785EFA100EEC227BF3F2AE1D8CBA853D,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_64 370B1281542BD1B03E84B0E8574DBA87,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_39"
   Begin Object Class=/Script/Engine.MaterialExpressionVectorParameter Name="MaterialExpressionVectorParameter_39"
   End Object
   Begin Object Name="MaterialExpressionVectorParameter_39"
      ParameterName="RimColor"
      DefaultValue=(R=0.6,G=0.7,B=0.9,A=1)
      Group="09 Edge Readability"
      Desc="Colour of the Fresnel edge glow. Only used when EnableEdge is on."
      MaterialExpressionEditorX=-3380
      MaterialExpressionEditorY=-840
      MaterialExpressionGuid=E130DD6F8FB0A4E86D34EC1D8A9285E3
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVectorParameter'MaterialExpressionVectorParameter_39'"
   NodePosX=-3380
   NodePosY=-840
   NodeGuid=4675A5F29AA0BF82A7310415F2D2FA54
   CustomProperties Pin (PinId=1957AD62E1F48E0965EED1429B1BA8E7,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_90 3437ADD7EEFCAA117E3566A56BABEAF1,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=DF84413F60328D39727B2A5EC505DB03,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=0D2CAC4F0C888C3A2F11CAD6F32834D9,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=34DFD3720246AF65ABFC8C8FCB831D9B,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=05C195C7A3401665F222BC5D9BD05D34,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_40"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_40"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_40"
      ParameterName="RimStrength"
      DefaultValue=0.5
      SliderMin=0
      SliderMax=3
      Group="09 Edge Readability"
      Desc="Intensity of the edge glow added to emissive. Keep low — this is a readability aid, not a hero glow."
      MaterialExpressionEditorX=-3380
      MaterialExpressionEditorY=-660
      MaterialExpressionGuid=1EB45BC18AE9AF70392AEBCC514DE582
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_40'"
   NodePosX=-3380
   NodePosY=-660
   NodeGuid=775253456E31DCEEA28FBCFFEB55A028
   CustomProperties Pin (PinId=58955BC69C43B1CE6895AE5D479B32E6,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_91 D49D14D48857549329E96C24DB4E3CEF,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_41"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_41"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_41"
      ParameterName="RimPower"
      DefaultValue=4
      SliderMin=1
      SliderMax=8
      Group="09 Edge Readability"
      Desc="Fresnel exponent. Higher = thinner glow hugging the silhouette."
      MaterialExpressionEditorX=-3380
      MaterialExpressionEditorY=-480
      MaterialExpressionGuid=5E9991769BC0FFD22E55EC26F4E3EC73
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_41'"
   NodePosX=-3380
   NodePosY=-480
   NodeGuid=9DAD03A765A74EDF80223412216D1A20
   CustomProperties Pin (PinId=2D3F66F9419C3D457C0599708F04BB7A,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_89 3A42D7FA4BFF46469B5C97361764BEEA,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_42"
   Begin Object Class=/Script/Engine.MaterialExpressionVectorParameter Name="MaterialExpressionVectorParameter_42"
   End Object
   Begin Object Name="MaterialExpressionVectorParameter_42"
      ParameterName="MicroColor"
      DefaultValue=(R=0.3,G=0.32,B=0.37,A=1)
      Group="10 Micro Grid"
      Desc="Colour of the micro grid lines (finest subdivision). Only used when EnableMicro is on."
      MaterialExpressionEditorX=-3380
      MaterialExpressionEditorY=-140
      MaterialExpressionGuid=ED29BB9576327616DB4876225AA63856
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVectorParameter'MaterialExpressionVectorParameter_42'"
   NodePosX=-3380
   NodePosY=-140
   NodeGuid=F0EB627C1BCB33714BF4A6F569833FCE
   CustomProperties Pin (PinId=2BD54AA1E01B94A3C1080E2D1670F3D9,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_79 82AC50F738672A1DB64908629D8E1675,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=C4224F217F155EDB9E4A9CCA3EF63BEC,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=C49EDEE87C650FA49062FE4D8BF37B07,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A7E1FE16C4A802569DF254963F994C9A,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=2A05DE84C1433496ED75214305560692,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_43"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_43"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_43"
      ParameterName="MicroSubdiv"
      DefaultValue=4
      SliderMin=2
      SliderMax=10
      Group="10 Micro Grid"
      Desc="Micro cells per minor cell. 4 splits a 1 m minor cell into 0.25 m micro cells."
      MaterialExpressionEditorX=-3380
      MaterialExpressionEditorY=40
      MaterialExpressionGuid=2018AA48BA2B4536AC94CB8DDD7A03F1
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_43'"
   NodePosX=-3380
   NodePosY=40
   NodeGuid=9B111517F1FA1C8B8D9E34AD36680CA5
   CustomProperties Pin (PinId=18E680A819AC3372506CAB845FDBF42A,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_64 EDD0BFF3D12D51309F8C97CCCD0B1159,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_44"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_44"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_44"
      ParameterName="MicroLineWidth"
      DefaultValue=1
      SliderMin=0.1
      SliderMax=10
      Group="10 Micro Grid"
      Desc="Micro line thickness in world centimetres. Keep thin — these are the finest lines."
      MaterialExpressionEditorX=-3380
      MaterialExpressionEditorY=220
      MaterialExpressionGuid=C9DE1216083C78C0272955196D9EB10D
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_44'"
   NodePosX=-3380
   NodePosY=220
   NodeGuid=5983459B6C483B0B5B28BC6A57AC0E91
   CustomProperties Pin (PinId=3A0353F549A72E694E500687208E834A,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_64 49EC40414B4F4C28C93D1E1A3287834D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_45"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_45"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_45"
      ParameterName="MicroFadeStart"
      DefaultValue=200
      SliderMin=50
      SliderMax=3000
      Group="10 Micro Grid"
      Desc="Distance (cm) where micro lines begin fading. Micro only shows close to the camera."
      MaterialExpressionEditorX=-3380
      MaterialExpressionEditorY=400
      MaterialExpressionGuid=6001718B2032183D756EBBDFCE7B6817
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_45'"
   NodePosX=-3380
   NodePosY=400
   NodeGuid=F5E0DE46757396C6B6DF08167D67ABFE
   CustomProperties Pin (PinId=ADF414EC2B06E9FD2B2ECC4322B43BB9,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_64 0F440A8C0E80A08479A52368A8F7C1B0,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_46"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_46"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_46"
      ParameterName="MicroFadeEnd"
      DefaultValue=600
      SliderMin=100
      SliderMax=6000
      Group="10 Micro Grid"
      Desc="Distance (cm) where micro lines are fully gone."
      MaterialExpressionEditorX=-3380
      MaterialExpressionEditorY=580
      MaterialExpressionGuid=1D9B82A5F61984ABF98320A2D5F07859
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_46'"
   NodePosX=-3380
   NodePosY=580
   NodeGuid=1C75D9B6757608D2D107427C00B8478C
   CustomProperties Pin (PinId=21F93395E461D9E70A3FC2FC4585D5AF,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_64 81729439E95348CA8FBC946E74B7E532,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_47"
   Begin Object Class=/Script/Engine.MaterialExpressionVectorParameter Name="MaterialExpressionVectorParameter_47"
   End Object
   Begin Object Name="MaterialExpressionVectorParameter_47"
      ParameterName="SteepColor"
      DefaultValue=(R=0.8,G=0.15,B=0.12,A=1)
      Group="11 Slope / Walkability"
      Desc="Warning colour painted on up-facing surfaces steeper than WalkableAngle. Only used when EnableSlope is on."
      MaterialExpressionEditorX=-860
      MaterialExpressionEditorY=-430
      MaterialExpressionGuid=A1187890FDEA70FAF9FAE520C6096935
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVectorParameter'MaterialExpressionVectorParameter_47'"
   NodePosX=-860
   NodePosY=-430
   NodeGuid=0CE1D133C23BDE7D3623DF518ACD0EC9
   CustomProperties Pin (PinId=B3F15BDCBC40A67904E790E36D582D75,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_77 EB100815FB0816DA3B3BCCBBF2057C66,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=43F99A0FA58B32C6CD8D7DE81297CF23,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=BB0DD1CE9FBD26EC2E88C6FB4C094B21,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=8CC0C78B29C92700C58DFAF4BD1E86E4,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=96A64617E5CF41DED4E3E7A083C0A500,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_48"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_48"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_48"
      ParameterName="WalkableAngle"
      DefaultValue=45
      SliderMin=10
      SliderMax=80
      Group="11 Slope / Walkability"
      Desc="Max slope (degrees from flat) considered walkable. Ramps steeper than this get the warning colour."
      MaterialExpressionEditorX=-860
      MaterialExpressionEditorY=-250
      MaterialExpressionGuid=3BBBBE58F262F19ADBF915FF90F801F2
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_48'"
   NodePosX=-860
   NodePosY=-250
   NodeGuid=6DA04F8276575517C1E208793C20A52A
   CustomProperties Pin (PinId=29A1470A96D7DEDB04CE503230F543E3,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_64 4F0E6C929AE0A3A8888350F6E91D7367,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_49"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_49"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_49"
      ParameterName="SlopeStrength"
      DefaultValue=0.6
      SliderMin=0
      SliderMax=1
      Group="11 Slope / Walkability"
      Desc="How strongly the warning colour overlays steep surfaces."
      MaterialExpressionEditorX=-860
      MaterialExpressionEditorY=-70
      MaterialExpressionGuid=07C954A8028A046219DE6A0251C929FD
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_49'"
   NodePosX=-860
   NodePosY=-70
   NodeGuid=DDAA18C16A0CB883FC02D212D56C510B
   CustomProperties Pin (PinId=6B109DC999CD16C46808C91A8848187B,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_76 7653C860607A96DF57D298358A374483,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_50"
   Begin Object Class=/Script/Engine.MaterialExpressionVectorParameter Name="MaterialExpressionVectorParameter_50"
   End Object
   Begin Object Name="MaterialExpressionVectorParameter_50"
      ParameterName="LabelColor"
      DefaultValue=(R=0.92,G=0.94,B=1,A=1)
      Group="12 Labels"
      Desc="Colour of the measurement label text. Only used when EnableLabels is on."
      MaterialExpressionEditorX=-860
      MaterialExpressionEditorY=270
      MaterialExpressionGuid=C1715B2448EEAF4BF7C7554720A841A4
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVectorParameter'MaterialExpressionVectorParameter_50'"
   NodePosX=-860
   NodePosY=270
   NodeGuid=7C6A3C60840035AFD698F4B10930A4B9
   CustomProperties Pin (PinId=74FB90B17CB707A2AFC29C3FC7BF8C29,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_102 79C277B007094FA2C9FB33394682A9FB,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=99B1323927A17E0C756B3B0F70A7EBA3,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=FC104DED6358E13A5595651E2282CC28,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=BA86CA562797A4B2C52A89F5A78555A1,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=8A895D9671EBAB8A63AEAF16C53A6F22,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_51"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_51"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_51"
      ParameterName="LabelSize"
      DefaultValue=0.12
      SliderMin=0.03
      SliderMax=0.45
      Group="12 Labels"
      Desc="Label height as a fraction of the major cell. Larger = bigger text in the corner."
      MaterialExpressionEditorX=-860
      MaterialExpressionEditorY=450
      MaterialExpressionGuid=942C7E618421D922105D921FE15DEFAE
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Blockout_Grid'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_51'"
   NodePosX=-860
   NodePosY=450
   NodeGuid=0D231B8A4E3E4487120B21F740630C48
   CustomProperties Pin (PinId=4779DB50713AB461B326065A76457C7C,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNo
…
Source truncated for rendering. Use Copy to grab the full 273 KB.
Nodes: ScalarParameter (x25), Comment (x17), VectorParameter (x12), Multiply (x10), StaticSwitchParameter (x9), LinearInterpolate (x8), NamedRerouteUsage (x6), Add (x4), NamedRerouteDeclaration (x2), Transform (x2), CameraPositionWS, Custom, Distance, Fresnel, Material, Max, ObjectPositionWS, Subtract, VertexNormalWS, WorldPosition
