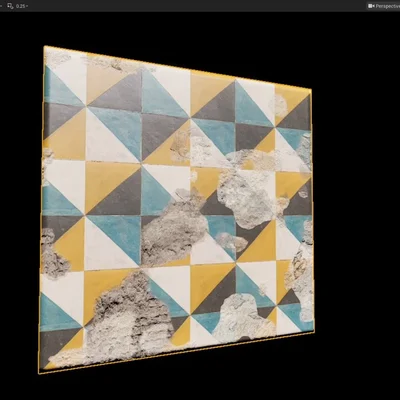

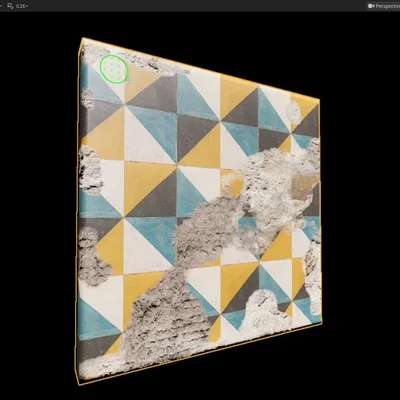

preview · 1 / 3
Description

Vertex Blend 4-Layer
A production-grade environment master for UE5.7 Substrate. Paint up to four full material layers straight onto your mesh and blend them by height, not a flat lerp, so dirt settles into cracks, plaster breaks to reveal brick, and damage reads like real wear.
Built for concrete, plaster, rock, metal, sci-fi panels, ruins, floors, walls and modular kits.
Features

4 layers, height-aware blend. Layer 0 is the clean base shown wherever nothing is painted; vertex Red / Green / Blue paint Layers 1, 2 and 3 over it. The higher surface wins each contested pixel, with a tunable sharpness/softness window.
Weights are normalised so coverage never over or under-blends.
Two paint sources. Mesh vertex colour by default, or flip on a packed RGBA mask texture — the Nanite-per-instance-friendly route.
Per-layer on/off toggles. Run it as a 2- or 3-layer surface and the unused layers' textures compile out completely: a trimmed instance is as cheap as a dedicated shader.
Two depth modes. Nanite tessellation displacement for true geometry, or a textureless fake-depth mode (cavity darkening, crack roughness, depth normals) for non-Nanite meshes: switchable per instance.
Full per-layer control. Tint, tiling, height contrast/offset/influence and displacement scale on every layer, plus an optional shared detail normal and a procedural micro-normal for close-up tooth.
Substrate Slab, single closure, Opaque. Metalness workflow converted the physical way.
Setup

Substrate must be on (Project Settings ▸ Rendering ▸ Substrate).
Paste into a blank Material. Blend Mode: Opaque, Two Sided: Off.
Shared samplers: select every texture node and set Sampler Source = Shared: Wrap (this material uses 16+ textures and needs it to compile).
Wire the Front Material frame node into the Material's Front Material pin.
Vertex paint: fill the mesh black first, then paint R/G/B for Layers 1–3 or turn on UsePackedMask and assign an RGBA mask.
For displacement (optional)

Add to Config/DefaultEngine.ini (then restart the editor): r.Nanite.AllowTessellation=1 and r.Nanite.Tessellation=1
Mesh must be Nanite; material Enable Tessellation on, Displacement Magnitude > 0, Displacement Center = 0.
Bake the mesh transform so its scale is 1 (Nanite displacement scales with it).
material graph
Want this graph on your blog or forum?
0 comments

No comments yet. Be the first.
source
View T3D source (392 KB)expand
Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_0"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C0"
   End Object
   Begin Object Name="MaterialExpressionComment_C0"
      SizeX=676
      SizeY=870
      Text="00 Global / Mode"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-60
      MaterialExpressionEditorY=-340
      MaterialExpressionGuid=9D3BFFF441B7EA8A7122759CFB12ECF7
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C0'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-60
   NodePosY=-340
   NodeWidth=676
   NodeHeight=870
   NodeComment="00 Global / Mode"
   NodeGuid=90A7B7FB90FEF4669CF41198B1FDECC5
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_1"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C1"
   End Object
   Begin Object Name="MaterialExpressionComment_C1"
      SizeX=1356
      SizeY=750
      Text="01 Layer 0 Base"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=3360
      MaterialExpressionEditorY=1640
      MaterialExpressionGuid=89AADEC3074E048F16D09C4478249149
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C1'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=3360
   NodePosY=1640
   NodeWidth=1356
   NodeHeight=750
   NodeComment="01 Layer 0 Base"
   NodeGuid=7C07F94D5DBC6025AB6A55B919EA4C8C
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_2"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C2"
   End Object
   Begin Object Name="MaterialExpressionComment_C2"
      SizeX=1356
      SizeY=750
      Text="02 Layer 1 (Red)"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=3360
      MaterialExpressionEditorY=-2320
      MaterialExpressionGuid=05042F95344306F03D70A2E49B725D22
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C2'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=3360
   NodePosY=-2320
   NodeWidth=1356
   NodeHeight=750
   NodeComment="02 Layer 1 (Red)"
   NodeGuid=8342FC1023ADEE74DCA7E0C163BACBAF
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_3"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C3"
   End Object
   Begin Object Name="MaterialExpressionComment_C3"
      SizeX=1356
      SizeY=750
      Text="03 Layer 2 (Green)"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=3360
      MaterialExpressionEditorY=-1520
      MaterialExpressionGuid=67C0B054600EFC31F7916A892F12CAAD
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C3'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=3360
   NodePosY=-1520
   NodeWidth=1356
   NodeHeight=750
   NodeComment="03 Layer 2 (Green)"
   NodeGuid=D967267302FC436EF51E83FEABBC7383
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_4"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C4"
   End Object
   Begin Object Name="MaterialExpressionComment_C4"
      SizeX=1356
      SizeY=750
      Text="04 Layer 3 (Blue / Damage)"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=3360
      MaterialExpressionEditorY=-720
      MaterialExpressionGuid=87FC54D14CC66B9156380AB91BA7A317
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C4'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=3360
   NodePosY=-720
   NodeWidth=1356
   NodeHeight=750
   NodeComment="04 Layer 3 (Blue / Damage)"
   NodeGuid=91F3CDEC22254F753384E0E76F13A751
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_5"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C5"
   End Object
   Begin Object Name="MaterialExpressionComment_C5"
      SizeX=420
      SizeY=682
      Text="05 Height Blend"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=3360
      MaterialExpressionEditorY=100
      MaterialExpressionGuid=748129F5E8DBAAC59528D07763FAB06E
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C5'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=3360
   NodePosY=100
   NodeWidth=420
   NodeHeight=682
   NodeComment="05 Height Blend"
   NodeGuid=7418B1EE3B605019EA0894918614861C
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_6"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C6"
   End Object
   Begin Object Name="MaterialExpressionComment_C6"
      SizeX=676
      SizeY=760
      Text="11 Detail Normal"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=3360
      MaterialExpressionEditorY=820
      MaterialExpressionGuid=7936B011CF9E295FAC6D6390C9ADA5B5
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C6'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=3360
   NodePosY=820
   NodeWidth=676
   NodeHeight=760
   NodeComment="11 Detail Normal"
   NodeGuid=701E7D85FDC46D981BC4B9CBF5CD8BE0
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_7"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C7"
   End Object
   Begin Object Name="MaterialExpressionComment_C7"
      SizeX=1016
      SizeY=442
      Text="06 Displacement"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-60
      MaterialExpressionEditorY=600
      MaterialExpressionGuid=2E62C09807A52FD6645ABCFD63AA9079
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C7'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-60
   NodePosY=600
   NodeWidth=1016
   NodeHeight=442
   NodeComment="06 Displacement"
   NodeGuid=DE2FC842B7C72FA25FBECE00F4C88D90
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_8"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C8"
   End Object
   Begin Object Name="MaterialExpressionComment_C8"
      SizeX=420
      SizeY=400
      Text="07 Surface Depth"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=1080
      MaterialExpressionEditorY=240
      MaterialExpressionGuid=B4398B22032FB907A9FB436D7213CABF
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C8'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=1080
   NodePosY=240
   NodeWidth=420
   NodeHeight=400
   NodeComment="07 Surface Depth"
   NodeGuid=5F19E5A6BB8E049BD6AE5057197E5511
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_9"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C9"
   End Object
   Begin Object Name="MaterialExpressionComment_C9"
      SizeX=420
      SizeY=554
      Text="Front Material"
      CommentColor=(R=0.033105,G=1.000000,B=0.132868,A=1.000000)
      MaterialExpressionEditorX=6540
      MaterialExpressionEditorY=-600
      MaterialExpressionGuid=CACC2D67D712FA355641820D51015F77
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C9'"
   CommentColor=(R=0.033105,G=1.000000,B=0.132868,A=1.000000)
   NodePosX=6540
   NodePosY=-600
   NodeWidth=420
   NodeHeight=554
   NodeComment="Front Material"
   NodeGuid=49098C3B32A642726475E6958F26968E
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_10"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C10"
   End Object
   Begin Object Name="MaterialExpressionComment_C10"
      SizeX=420
      SizeY=202
      Text="Displacement"
      CommentColor=(R=0.033105,G=1.000000,B=0.132868,A=1.000000)
      MaterialExpressionEditorX=3360
      MaterialExpressionEditorY=2460
      MaterialExpressionGuid=CD075750D6B7B077DBD30EDB79892BC6
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C10'"
   CommentColor=(R=0.033105,G=1.000000,B=0.132868,A=1.000000)
   NodePosX=3360
   NodePosY=2460
   NodeWidth=420
   NodeHeight=202
   NodeComment="Displacement"
   NodeGuid=DA44CB036FCA6C79E815C34FB42100E1
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_11"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_11"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_11"
      ParameterName="UVScale"
      DefaultValue=1
      SliderMin=0.05
      SliderMax=20
      Group="00 Global / Mode"
      Desc="Global UV multiplier applied on top of every layer's own tiling. Higher = smaller features across the whole material."
      MaterialExpressionEditorX=0
      MaterialExpressionEditorY=-280
      MaterialExpressionGuid=41B2E69BCF8C8E3496780E88A81A7D1E
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_11'"
   NodePosX=0
   NodePosY=-280
   NodeGuid=DCAEA9CE1057E16C8EC82F8E86B90EE6
   CustomProperties Pin (PinId=DC468B9B641BD972554D1D2CC328DBF1,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_82 94EF19BD899B81091038B29CED904666,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_12"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_12"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_12"
      ParameterName="Brightness"
      DefaultValue=1
      SliderMin=0
      SliderMax=2
      Group="00 Global / Mode"
      Desc="Master multiplier on the blended albedo. 1 = as authored."
      MaterialExpressionEditorX=0
      MaterialExpressionEditorY=-160
      MaterialExpressionGuid=08EBEBD503A1DD0E62A89A8AE08797D0
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_12'"
   NodePosX=0
   NodePosY=-160
   NodeGuid=60FAA497CCE61133C4C2EFA0A08F17C5
   CustomProperties Pin (PinId=2A00BCD863B1891868AADBDE3E99756A,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 47C111DFFB4128C919EF3A7CB297EA2F,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_13"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_13"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_13"
      ParameterName="Specular"
      DefaultValue=0.5
      SliderMin=0
      SliderMax=1
      Group="00 Global / Mode"
      Desc="Dielectric specular level for non-metal areas (non-metal F0 = 0.08 * Specular). 0.5 = the standard ~4% reflectance. Metal areas take their F0 from the albedo instead."
      MaterialExpressionEditorX=0
      MaterialExpressionEditorY=-40
      MaterialExpressionGuid=7274635D8C9C159D88DF5F8E89E12EFD
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_13'"
   NodePosX=0
   NodePosY=-40
   NodeGuid=A06C300B292F3A755E8CDF9AB86A6C3C
   CustomProperties Pin (PinId=6A116E1EFE1DA423270C21C8A2EB5AAB,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 5C99BF3E72F24A7B4F5AACC5FDB26497,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_14"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_14"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_14"
      ParameterName="RoughnessScale"
      DefaultValue=1
      SliderMin=0
      SliderMax=2
      Group="00 Global / Mode"
      Desc="Master multiplier on the blended roughness. 1 = as authored; lower = glossier overall."
      MaterialExpressionEditorX=0
      MaterialExpressionEditorY=180
      MaterialExpressionGuid=C1201FC018B8DC9CC2F23BB8A47FC060
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_14'"
   NodePosX=0
   NodePosY=180
   NodeGuid=FC277EE502D71CA589CBE26F418768B0
   CustomProperties Pin (PinId=C4CA70313EB053A1F803D32068A0C021,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 F6B2F6700034C3F469199C1AC0DE7DA1,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_15"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_15"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_15"
      ParameterName="NormalIntensity"
      DefaultValue=1
      SliderMin=0
      SliderMax=3
      Group="00 Global / Mode"
      Desc="Master strength of the added detail + procedural micro normal relief. The per-layer baked normals are unaffected. 0 = layer normals only."
      MaterialExpressionEditorX=0
      MaterialExpressionEditorY=80
      MaterialExpressionGuid=D354B2190005C060A2EE52A71AD491D8
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_15'"
   NodePosX=0
   NodePosY=80
   NodeGuid=3A91B0999399314CE352F8681E3CD052
   CustomProperties Pin (PinId=84CDA22C71F39D62B306043D55E499DC,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 14C4F9D1F6DC3EC1614EA0118BBE907C,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_16"
   Begin Object Class=/Script/Engine.MaterialExpressionStaticSwitchParameter Name="MaterialExpressionStaticSwitchParameter_16"
   End Object
   Begin Object Name="MaterialExpressionStaticSwitchParameter_16"
      ParameterName="UsePackedMask"
      DefaultValue=False
      Group="00 Global / Mode"
      Desc="Use a packed RGBA mask texture (PaintMask) as the layer mask instead of vertex colours. Off = vertex paint (R/G/B = Layers 1/2/3). On = baked / Nanite-per-instance-friendly mask."
      A=(Expression="/Script/Engine.MaterialExpressionTextureSampleParameter2D'MaterialGraphNode_17.MaterialExpressionTextureSampleParameter2D_17'")
      B=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_84.MaterialExpressionComponentMask_84'")
      MaterialExpressionEditorX=340
      MaterialExpressionEditorY=300
      MaterialExpressionGuid=8FD924C188F1D861D29AC4F4EEFF2878
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionStaticSwitchParameter'MaterialExpressionStaticSwitchParameter_16'"
   NodePosX=340
   NodePosY=300
   NodeGuid=73CDC24FC9C84A3D1688A857D143EED6
   CustomProperties Pin (PinId=6F39803589A7E8968A07EF1BC13E8714,PinName="True",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_17 32DDE7CACC87BE0ED0D5F9F3008750F6,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A6057DAF14B066FE4F6361CD92EEA7AA,PinName="False",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_84 E4745C7E605A42DA8B039CDC3FEEA97B,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=2C434C1A3CA13B825177A264ACDEECED,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 B309130DF2FC2FA905A6498341585E76,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_17"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureSampleParameter2D Name="MaterialExpressionTextureSampleParameter2D_17"
   End Object
   Begin Object Name="MaterialExpressionTextureSampleParameter2D_17"
      ParameterName="PaintMask"
      Group="00 Global / Mode"
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      SamplerType=SAMPLERTYPE_SAMPLERTYPE_Linear
      Desc="Optional packed mask (R/G/B = Layer 1/2/3 coverage), sampled on UV0. Only used when UsePackedMask is on. Set Sampler Source = Shared: Wrap after paste."
      Coordinates=(Expression="/Script/Engine.MaterialExpressionTextureCoordinate'MaterialGraphNode_81.MaterialExpressionTextureCoordinate_81'")
      MaterialExpressionEditorX=0
      MaterialExpressionEditorY=300
      MaterialExpressionGuid=A2FCF965F1173ECFEBC97145F86B8350
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureSampleParameter2D'MaterialExpressionTextureSampleParameter2D_17'"
   NodePosX=0
   NodePosY=300
   NodeGuid=8C078EBFC9003E8C82C245559F65994F
   CustomProperties Pin (PinId=C54443E8686D56CAB75493215D2742ED,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_81 6DE261CF2943FCC032C72EF008C15BC6,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=2557FDE75685760817B69A38F1C41ABB,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=32DDE7CACC87BE0ED0D5F9F3008750F6,PinName="RGB",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 6F39803589A7E8968A07EF1BC13E8714,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=DBCA0A8252BA668F906C0E7C595650B6,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=C505D039BD7E38F0CED6C97EFDC2816C,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=80D8D7260A9557124C847490BC530C04,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=8A296315934E7F72BECA1727A0CAF1A8,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=AD85D2C12499B94BE0D1F258DF0AFFE5,PinName="RGBA",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_18"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureSampleParameter2D Name="MaterialExpressionTextureSampleParameter2D_18"
   End Object
   Begin Object Name="MaterialExpressionTextureSampleParameter2D_18"
      ParameterName="L0_BaseColor"
      Group="01 Layer 0 Base"
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      SamplerType=SAMPLERTYPE_SAMPLERTYPE_Color
      Desc="Layer 0 base colour (albedo). The clean default surface shown wherever nothing is painted - e.g. clean concrete, base rock, plaster, clean panel."
      Coordinates=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_90.MaterialExpressionMultiply_90'")
      MaterialExpressionEditorX=4440
      MaterialExpressionEditorY=2000
      MaterialExpressionGuid=F383465B4D40F7BD402175759823DE28
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureSampleParameter2D'MaterialExpressionTextureSampleParameter2D_18'"
   NodePosX=4440
   NodePosY=2000
   NodeGuid=4C3B41FF5875824C925BE234F979F5BC
   CustomProperties Pin (PinId=B9C04CAD0115F6626C04F563D9DC18B5,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_90 7CE9278946A49298BE45C5233F243C47,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=874CD928EE827A662B1FB4B660509A39,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=E19089755712F87F45B023FDB28E70B1,PinName="RGB",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 429392B384463A96A4030E977AD553FB,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=524C00966BFABDC57A5BC07FC2D1599D,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=B5AA32F3283A145703ECEB056FE61FD6,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=60BB3341A3DF64D5938B3251BE17BD96,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=63F813406210F808175FC7DAB43156B5,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=AABAE9612F7A215D92A2A99ED627327E,PinName="RGBA",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_19"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureSampleParameter2D Name="MaterialExpressionTextureSampleParameter2D_19"
   End Object
   Begin Object Name="MaterialExpressionTextureSampleParameter2D_19"
      ParameterName="L0_Normal"
      Group="01 Layer 0 Base"
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      SamplerType=SAMPLERTYPE_SAMPLERTYPE_Normal
      Desc="Layer 0 tangent-space normal map."
      Coordinates=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_90.MaterialExpressionMultiply_90'")
      MaterialExpressionEditorX=3420
      MaterialExpressionEditorY=1700
      MaterialExpressionGuid=6A5AA690DC7C603E443149FA10B06E98
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureSampleParameter2D'MaterialExpressionTextureSampleParameter2D_19'"
   NodePosX=3420
   NodePosY=1700
   NodeGuid=27B3CFDB86587F29B9DD4F659AA6D0C2
   CustomProperties Pin (PinId=370608C7A10122BB85D78117C37E4689,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_90 7CE9278946A49298BE45C5233F243C47,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=89A8E906BD82EA3A012730BC41684C02,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=268683296AD3A7A28B29F82D98BBC1B2,PinName="RGB",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 A8CC246FA365BA7F3623F6C83E2D96FB,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=584AA9698980E1A88B091D3DBE71470F,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=31004BF563077086398B8BB9DE8A6CDC,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=EC293AF14C31EC3F17B1C37B79AFDDA2,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=2C7014325A204A17F7CEA827FD6C4658,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=64E4A2FC6F5D6D523F36B36171A3DF12,PinName="RGBA",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_20"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureSampleParameter2D Name="MaterialExpressionTextureSampleParameter2D_20"
   End Object
   Begin Object Name="MaterialExpressionTextureSampleParameter2D_20"
      ParameterName="L0_ORM"
      Group="01 Layer 0 Base"
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      SamplerType=SAMPLERTYPE_SAMPLERTYPE_Linear
      Desc="Layer 0 packed ORM: R = Ambient Occlusion, G = Roughness, B = Metallic."
      Coordinates=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_90.MaterialExpressionMultiply_90'")
      MaterialExpressionEditorX=3420
      MaterialExpressionEditorY=1940
      MaterialExpressionGuid=F4F1387336DB7D6D9EA4C7F6F9155D40
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureSampleParameter2D'MaterialExpressionTextureSampleParameter2D_20'"
   NodePosX=3420
   NodePosY=1940
   NodeGuid=900D4CBC35CFBDC1AD6649DE7515479F
   CustomProperties Pin (PinId=C842B52D9EDDB38FC24EE419FB2B36A6,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_90 7CE9278946A49298BE45C5233F243C47,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=8338937B9A18ACD8C5AC1BC6BF6E9117,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=F95DC9A956D95BFDA926D2B20868AB37,PinName="RGB",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 E01FB08A9B88860FE9E5DBA3A02E3782,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A28B0511ED8164954964916692E2BA0C,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=681B8CA85E0F1C38995383A570DBFF26,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=CA02197D3784376A99CFAC1395013A0E,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=972CFD3C4532E951B5CF06372D00A0C5,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=BEDD9C2531E08EF4B87D78DEB1F0EC2E,PinName="RGBA",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_21"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureSampleParameter2D Name="MaterialExpressionTextureSampleParameter2D_21"
   End Object
   Begin Object Name="MaterialExpressionTextureSampleParameter2D_21"
      ParameterName="L0_Height"
      Group="01 Layer 0 Base"
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      SamplerType=SAMPLERTYPE_SAMPLERTYPE_Linear
      Desc="Layer 0 height / displacement map (grayscale, R channel). Drives the height-aware blend and, later, displacement."
      Coordinates=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_90.MaterialExpressionMultiply_90'")
      MaterialExpressionEditorX=3420
      MaterialExpressionEditorY=2160
      MaterialExpressionGuid=A6739E5365C605027D206BA9849B0479
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureSampleParameter2D'MaterialExpressionTextureSampleParameter2D_21'"
   NodePosX=3420
   NodePosY=2160
   NodeGuid=6045025A1E80B1862B27A86A8E2CF548
   CustomProperties Pin (PinId=2ECDCD14CB76260DFD00DEE42867558F,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_90 7CE9278946A49298BE45C5233F243C47,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=436A662DA6A5E9958BB4DAAC45409506,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A7E524D2892D0A35CE7A082B1C1DE774,PinName="RGB",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=2902F9C100B19460A8692FF59FD3E778,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 218D4F6C768E717F396CD5A661177A32,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=6FB737BEBCFD3E7ABB163473F6ECEE54,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=FAC36EDEF7F8281569409DC891D5FBEB,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=E3702E5203479AA20796D28551E333DE,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=563F5B74FB94D77F276799A98D36919F,PinName="RGBA",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_22"
   Begin Object Class=/Script/Engine.MaterialExpressionVectorParameter Name="MaterialExpressionVectorParameter_22"
   End Object
   Begin Object Name="MaterialExpressionVectorParameter_22"
      ParameterName="L0_Tint"
      DefaultValue=(R=1,G=1,B=1,A=1)
      Group="01 Layer 0 Base"
      Desc="Multiplier tint on Layer 0 albedo. White = unchanged."
      MaterialExpressionEditorX=3760
      MaterialExpressionEditorY=1840
      MaterialExpressionGuid=7E5A6857181F46FE91A656C18253F42A
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVectorParameter'MaterialExpressionVectorParameter_22'"
   NodePosX=3760
   NodePosY=1840
   NodeGuid=C8FC25583ABDA948A924FEE7F5893B77
   CustomProperties Pin (PinId=8D458FED5AAE6F2078B8863C81DB2012,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_95 8106E48F66904D196B00376B4FBD49D7,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=7519A12158AB41A862A362D3FEE2883E,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=E7980D205E0965B45B8DBFA49FFB185D,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=4FD7138A28B3214720321BADB18B33C4,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=9017D7DA4FDAA78082A71DB7B0BCFC34,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_23"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_23"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_23"
      ParameterName="L0_Tiling"
      DefaultValue=1
      SliderMin=0.05
      SliderMax=50
      Group="01 Layer 0 Base"
      Desc="Layer 0 UV tiling (multiplied by the global UVScale)."
      MaterialExpressionEditorX=3760
      MaterialExpressionEditorY=2040
      MaterialExpressionGuid=4BF8A9D70CB9E16E73751F77D9E77DF6
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_23'"
   NodePosX=3760
   NodePosY=2040
   NodeGuid=50924ABAEDBF697818B534B46BAF910A
   CustomProperties Pin (PinId=A36E3FD456B3B8C56D9D9CBDD8A23E18,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_90 4D955FF8E357EBF8A139BADDB95009EF,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_24"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_24"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_24"
      ParameterName="L0_HeightContrast"
      DefaultValue=1
      SliderMin=0
      SliderMax=4
      Group="01 Layer 0 Base"
      Desc="Contrast on Layer 0's height around 0.5 before blending. Use to match height ranges between layers so the blend doesn't favour one map's flatter or punchier relief."
      MaterialExpressionEditorX=3760
      MaterialExpressionEditorY=2160
      MaterialExpressionGuid=1E20B0AF3D86DEAD8A142E9E0F1D16C7
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_24'"
   NodePosX=3760
   NodePosY=2160
   NodeGuid=D858D61E6F96235BFEF6965558A22076
   CustomProperties Pin (PinId=8AC5A4F7ED02920AD9BE6272D4D25C63,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 4568CC94C61320D7E150353CBC26EFF6,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_25"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_25"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_25"
      ParameterName="L0_HeightOffset"
      DefaultValue=0
      SliderMin=-1
      SliderMax=1
      Group="01 Layer 0 Base"
      Desc="Raises or lowers Layer 0's whole height range. Push up to make this layer win more contested pixels, down to recede under the others."
      MaterialExpressionEditorX=4100
      MaterialExpressionEditorY=1940
      MaterialExpressionGuid=FC56082E09E28246709667CA84AC174A
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_25'"
   NodePosX=4100
   NodePosY=1940
   NodeGuid=D1E78C621DBB434C96D5472358B3BDFF
   CustomProperties Pin (PinId=71F5F03E51EA97FF93611C040CC25DCF,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 D1160E8F70497DD46234DB5D1FBA06DD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_26"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_26"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_26"
      ParameterName="L0_HeightInfluence"
      DefaultValue=0.5
      SliderMin=0
      SliderMax=2
      Group="01 Layer 0 Base"
      Desc="How strongly Layer 0's height (not just its paint) drives the blend. 0 = paint coverage only; higher = relief carves the transitions."
      MaterialExpressionEditorX=4100
      MaterialExpressionEditorY=2040
      MaterialExpressionGuid=604E29C013E15ECB01C57A0FA7125129
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_26'"
   NodePosX=4100
   NodePosY=2040
   NodeGuid=60E5324B9A2B8B084E330F17705D00F6
   CustomProperties Pin (PinId=B455D368ECE8374967266813FC027DAE,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 54E3F9335D58397F57F20B04FC06EBD0,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_27"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_27"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_27"
      ParameterName="L0_DispScale"
      DefaultValue=1
      SliderMin=0
      SliderMax=4
      Group="01 Layer 0 Base"
      Desc="Layer 0 displacement multiplier (Nanite mode only). Scales how far this layer pushes the surface. 0 = this layer stays flat."
      MaterialExpressionEditorX=4440
      MaterialExpressionEditorY=1880
      MaterialExpressionGuid=BDCA1674572D50D9D80D3EBD9DCCCB15
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_27'"
   NodePosX=4440
   NodePosY=1880
   NodeGuid=A342A8495247FFB5B9A9D393FB8A3250
   CustomProperties Pin (PinId=8793165111E7DD2DF5F387AE233923FC,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 B3F373EB98D3AAF6927BC880D7C86DB7,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_28"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureSampleParameter2D Name="MaterialExpressionTextureSampleParameter2D_28"
   End Object
   Begin Object Name="MaterialExpressionTextureSampleParameter2D_28"
      ParameterName="L1_BaseColor"
      Group="02 Layer 1 (Red)"
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      SamplerType=SAMPLERTYPE_SAMPLERTYPE_Color
      Desc="Layer 1 base colour, painted by vertex Red - e.g. dirt, dust, sand, mud, moss, rust, darker/weathered concrete."
      Coordinates=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_91.MaterialExpressionMultiply_91'")
      MaterialExpressionEditorX=3420
      MaterialExpressionEditorY=-2260
      MaterialExpressionGuid=BDA8D58A3190E5BAF3C6631A8F281718
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureSampleParameter2D'MaterialExpressionTextureSampleParameter2D_28'"
   NodePosX=3420
   NodePosY=-2260
   NodeGuid=41BE4114A88888762A0DD2ACF3D30D98
   CustomProperties Pin (PinId=BC93459D9A17CC790A76E61B69047DAC,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_91 7F234BE5C5A4BA580DCA4DEC2A78861A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=28EC68DDCBE546A144D7B3BB721ABB78,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=15BFC6BA7CAAB75A8FFADA0DF6222BBD,PinName="RGB",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_99 A0D0242992CC1BAD45CAE61DCD8A1898,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=894A6C8BBA1B937CBF515E3DE086BF72,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A6DE726D0054424172E14FCD57985D10,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=9EF6027AF81198BA5813E35DC48D44B7,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=761A2B38D68AC7A80AF07081F9BEE71E,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=79C2DF6F76428F8603DC860AADB08ADF,PinName="RGBA",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_29"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureSampleParameter2D Name="MaterialExpressionTextureSampleParameter2D_29"
   End Object
   Begin Object Name="MaterialExpressionTextureSampleParameter2D_29"
      ParameterName="L1_Normal"
      Group="02 Layer 1 (Red)"
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      SamplerType=SAMPLERTYPE_SAMPLERTYPE_Normal
      Desc="Layer 1 tangent-space normal map."
      Coordinates=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_91.MaterialExpressionMultiply_91'")
      MaterialExpressionEditorX=3420
      MaterialExpressionEditorY=-2020
      MaterialExpressionGuid=C719B892712297135F3F0EEC1D53719A
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureSampleParameter2D'MaterialExpressionTextureSampleParameter2D_29'"
   NodePosX=3420
   NodePosY=-2020
   NodeGuid=4761A98DA0B90D2B3C35F7FC467B4677
   CustomProperties Pin (PinId=C1B7C6BB9443A8DFDBDCFAC89F730778,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_91 7F234BE5C5A4BA580DCA4DEC2A78861A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=0D2D993DF5599AAF43500DC6C5E8EF4F,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=CE367BE2A5B4204F72D495A2F8BC960B,PinName="RGB",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_100 59C87576BEF91EB10B59175F404EE576,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=164F9915DDFDD3F0D291EF0EFA408E87,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=C960397B9DF4798FCFBD8D9ABFA4D833,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A6F330EF77BCA8F79FCA7684FD78873F,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=4BCA457AB4E0D14852D3816482B1B911,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=48BDAB2B31CE7BC0BAC3BB57E38AA2FC,PinName="RGBA",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_30"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureSampleParameter2D Name="MaterialExpressionTextureSampleParameter2D_30"
   End Object
   Begin Object Name="MaterialExpressionTextureSampleParameter2D_30"
      ParameterName="L1_ORM"
      Group="02 Layer 1 (Red)"
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      SamplerType=SAMPLERTYPE_SAMPLERTYPE_Linear
      Desc="Layer 1 packed ORM: R = AO, G = Roughness, B = Metallic."
      Coordinates=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_91.MaterialExpressionMultiply_91'")
      MaterialExpressionEditorX=3420
      MaterialExpressionEditorY=-1800
      MaterialExpressionGuid=DAF84C12232E4EAEF4F69247E948DBBA
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureSampleParameter2D'MaterialExpressionTextureSampleParameter2D_30'"
   NodePosX=3420
   NodePosY=-1800
   NodeGuid=A430E7B11CD79616C1EF3A0EB1584ACB
   CustomProperties Pin (PinId=F67AF4FE810493E170BCE4C64C114F0C,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_91 7F234BE5C5A4BA580DCA4DEC2A78861A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=E9D0358577801337AF80F885F705D891,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=FA7B3EFFCB0614443A7FB2DE9C581A04,PinName="RGB",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_101 2D22FC3628AB61EEB0373949845A4566,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=54138E18DB40C2983EE8930E018ECB86,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=2EBECBE8FB5BF679F82897AC42BBBDF2,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=69126A3B1493B786B552CBC1633D51FE,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=3F6EA96292913528F953F2ADA001CA41,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=61F8F88667C522AFF4BACB092DA721AD,PinName="RGBA",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_31"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureSampleParameter2D Name="MaterialExpressionTextureSampleParameter2D_31"
   End Object
   Begin Object Name="MaterialExpressionTextureSampleParameter2D_31"
      ParameterName="L1_Height"
      Group="02 Layer 1 (Red)"
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      SamplerType=SAMPLERTYPE_SAMPLERTYPE_Linear
      Desc="Layer 1 height map (grayscale, R)."
      Coordinates=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_91.MaterialExpressionMultiply_91'")
      MaterialExpressionEditorX=3760
      MaterialExpressionEditorY=-2180
      MaterialExpressionGuid=A5EDD7F986D41AB31D991F12B8D587DF
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureSampleParameter2D'MaterialExpressionTextureSampleParameter2D_31'"
   NodePosX=3760
   NodePosY=-2180
   NodeGuid=C4D013E28327AF46C2139CD297D7270D
   CustomProperties Pin (PinId=7DE8F6C2ACD4566A9478C5E35B26979D,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_91 7F234BE5C5A4BA580DCA4DEC2A78861A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=91935D485FA07C74AD46C48A3DA6CAA1,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=FD8BA83E6D9A9CB37500D32091DA3133,PinName="RGB",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=9A8525DA644E53A5E46E6083093757C9,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_102 3378E041A01B50A42A5D40D7E38797FC,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=7D1541A72C736DC9C0C061274DDA3177,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=88BD3AF3405AC708716A3BA6ABE7A293,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=DFE0BF27BB0A5AF8FEF2DF390D89223D,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A8AF64F190CF5ED2C25F809B999CF70F,PinName="RGBA",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_32"
   Begin Object Class=/Script/Engine.MaterialExpressionVectorParameter Name="MaterialExpressionVectorParameter_32"
   End Object
   Begin Object Name="MaterialExpressionVectorParameter_32"
      ParameterName="L1_Tint"
      DefaultValue=(R=1,G=1,B=1,A=1)
      Group="02 Layer 1 (Red)"
      Desc="Multiplier tint on Layer 1 albedo."
      MaterialExpressionEditorX=3760
      MaterialExpressionEditorY=-1960
      MaterialExpressionGuid=B2AD468C6688753936F23DE44D71B689
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVectorParameter'MaterialExpressionVectorParameter_32'"
   NodePosX=3760
   NodePosY=-1960
   NodeGuid=98626712715EB18094EA180B5DE4A414
   CustomProperties Pin (PinId=3ADC4C5E9F6AE6784E9CBC95C1B33AE2,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_96 FD3B8D76555E0C7886875403A89535D2,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=1E8FADC9B88FE29E4F52A29E405AE607,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=75E8753E9AD9815BAAE4D4DDBB0FAF25,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=AEF7D6BDD6FF9534E5D4DBC3B8DA13C4,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=11F26C33B02370A761C1947FBFD8C249,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_33"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_33"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_33"
      ParameterName="L1_Tiling"
      DefaultValue=1
      SliderMin=0.05
      SliderMax=50
      Group="02 Layer 1 (Red)"
      Desc="Layer 1 UV tiling (x global UVScale)."
      MaterialExpressionEditorX=3760
      MaterialExpressionEditorY=-1760
      MaterialExpressionGuid=7022D030D06D0FD3B59CC56FD00842CB
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_33'"
   NodePosX=3760
   NodePosY=-1760
   NodeGuid=A1E25140E3613BD7F3F6F5E6CE506CFA
   CustomProperties Pin (PinId=89CADBDD752EB1646864C3F7C0C83A27,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_91 E1E89E8095F179928B64815E1EF22A5B,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_34"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_34"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_34"
      ParameterName="L1_HeightContrast"
      DefaultValue=1
      SliderMin=0
      SliderMax=4
      Group="02 Layer 1 (Red)"
      Desc="Contrast on Layer 1's height around 0.5 before blending."
      MaterialExpressionEditorX=4100
      MaterialExpressionEditorY=-2020
      MaterialExpressionGuid=E21CC26379DB202449E84733C9C304E2
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_34'"
   NodePosX=4100
   NodePosY=-2020
   NodeGuid=753FF960D7C0C8B3175E125DCE43BE18
   CustomProperties Pin (PinId=410C0EBEE77D7AB50C87B71E83B2F6B7,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 8C2810B0E9F5C8C8B34B8A36AF2C325E,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_35"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_35"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_35"
      ParameterName="L1_HeightOffset"
      DefaultValue=0
      SliderMin=-1
      SliderMax=1
      Group="02 Layer 1 (Red)"
      Desc="Raises/lowers Layer 1's height range relative to the others."
      MaterialExpressionEditorX=4100
      MaterialExpressionEditorY=-1920
      MaterialExpressionGuid=5CDAA654D675753E88AF42EC1CDF4959
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_35'"
   NodePosX=4100
   NodePosY=-1920
   NodeGuid=A22E074D535897506B70F7971FB4CEE7
   CustomProperties Pin (PinId=B2E2F637CE0B2441F76ABA470D3A18CA,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 68D62E1628743896E8393CA3DE41B85C,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_36"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_36"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_36"
      ParameterName="L1_HeightInfluence"
      DefaultValue=0.5
      SliderMin=0
      SliderMax=2
      Group="02 Layer 1 (Red)"
      Desc="How strongly Layer 1's height drives the transition (dirt settling into low areas)."
      MaterialExpressionEditorX=4440
      MaterialExpressionEditorY=-2020
      MaterialExpressionGuid=FBCD5FC663B06B80BDDAD96AE9F65EC5
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_36'"
   NodePosX=4440
   NodePosY=-2020
   NodeGuid=1750E4B5F0267999526AC599289281B6
   CustomProperties Pin (PinId=AADA108F06F9A9320A650A63B55CB1FC,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 3241A2361C07B5929FAF159FB11C7405,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_37"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_37"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_37"
      ParameterName="L1_DispScale"
      DefaultValue=1
      SliderMin=0
      SliderMax=4
      Group="02 Layer 1 (Red)"
      Desc="Layer 1 displacement multiplier (Nanite mode only). Scales how far this layer pushes the surface. 0 = this layer stays flat."
      MaterialExpressionEditorX=4440
      MaterialExpressionEditorY=-1920
      MaterialExpressionGuid=398C64E8DD24E6452CA640C184998E57
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_37'"
   NodePosX=4440
   NodePosY=-1920
   NodeGuid=693730FAA52D7EB46147509BF25BD30A
   CustomProperties Pin (PinId=299FECBFCA445BDAFBE0AC1A6446D146,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Custom_114 1E5EC88B143FE2987F2BDA5B573EF34D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=Fal
…
Source truncated for rendering. Use Copy to grab the full 392 KB.
Nodes: ScalarParameter (x43), StaticSwitchParameter (x20), TextureSampleParameter2D (x18), Comment (x11), Multiply (x7), ComponentMask (x5), VectorParameter (x4), Constant3Vector (x3), Constant (x2), Custom, Material, SubstrateSlabBSDF, TextureCoordinate, VertexColor
