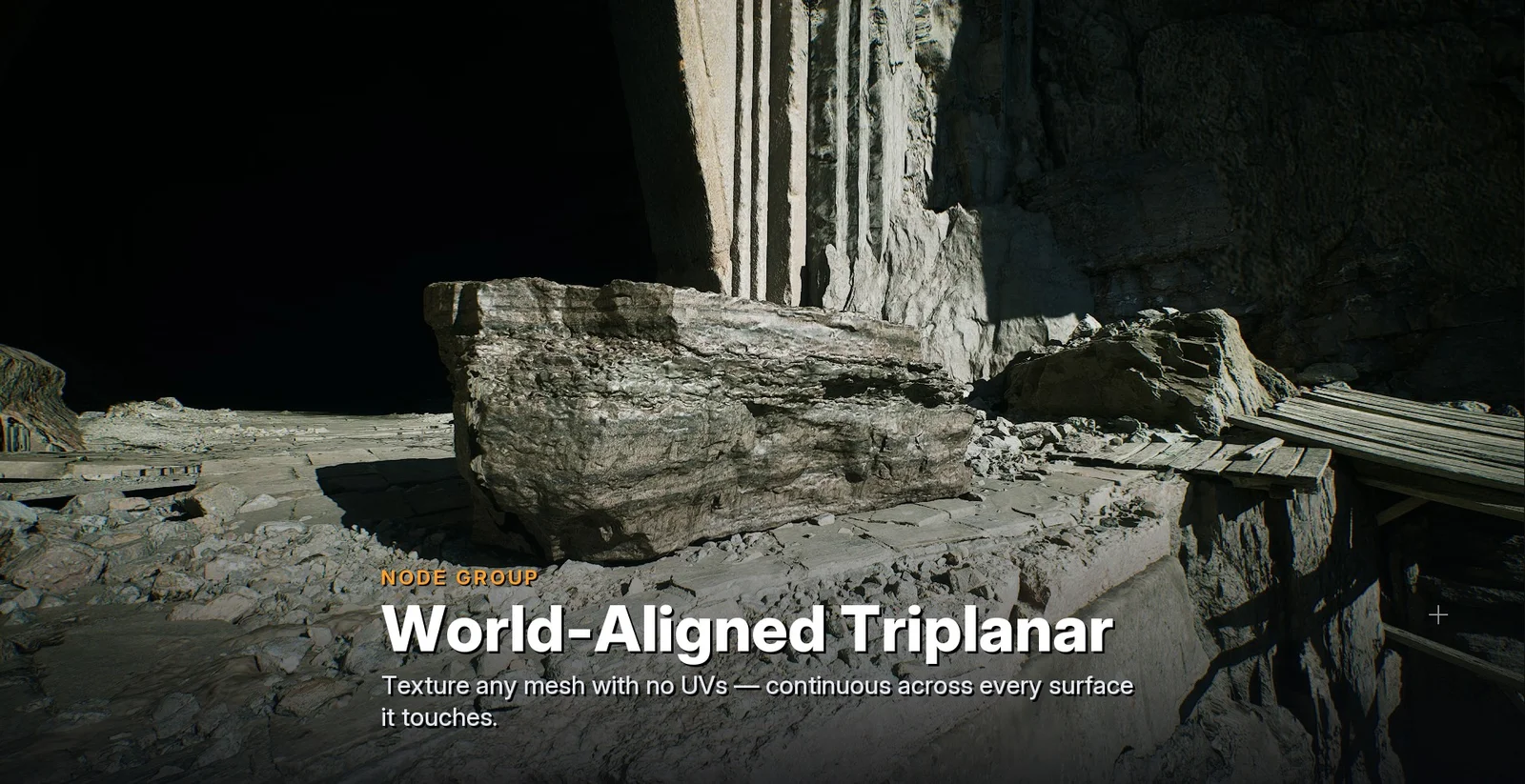

World-Aligned Triplanar

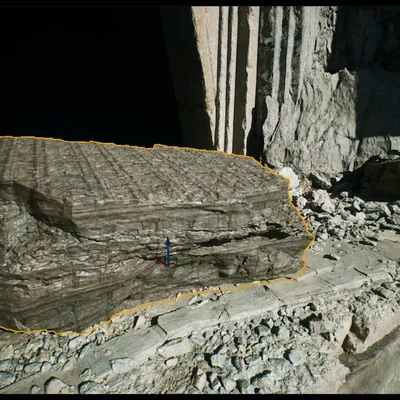

preview · 1 / 2

Description

A paste-in node group that makes any texture in your material triplanar in world space, no UVs required. Drop it in wherever you'd sample a texture and it projects cleanly onto any mesh. Because it's anchored to the world, the texture stays continuous where separate meshes meet, a wall, floor and prop all share one unbroken surface — making it ideal for terrain, large surfaces, modular environments and fast blockouts.

material graph

Preview only · open in editor for full material editing

Want this graph on your blog or forum?

0 comments

Sign in to join the discussion.

No comments yet. Be the first.

source
View T3D source (81 KB)expand
Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_0"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C0"
   End Object
   Begin Object Name="MaterialExpressionComment_C0"
      SizeX=540
      SizeY=620
      Text="Triplanar"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-1640
      MaterialExpressionEditorY=-720
      MaterialExpressionGuid=EFF198F689755F319EB74B379B5ACE28
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C0'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-1640
   NodePosY=-720
   NodeWidth=540
   NodeHeight=620
   NodeComment="Triplanar"
   NodeGuid=B60EF657453195E6901A7D1AA8E72E54
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_1"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C1"
   End Object
   Begin Object Name="MaterialExpressionComment_C1"
      SizeX=320
      SizeY=240
      Text="Result → Base Color (or any input)"
      CommentColor=(R=0.162029,G=0.417885,B=0.063010,A=1.000000)
      MaterialExpressionEditorX=687
      MaterialExpressionEditorY=100
      MaterialExpressionGuid=12ECD03A4767A6472421E3C71D71C969
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C1'"
   CommentColor=(R=0.162029,G=0.417885,B=0.063010,A=1.000000)
   NodePosX=687
   NodePosY=100
   NodeWidth=320
   NodeHeight=240
   NodeComment="Result → Base Color (or any input)"
   NodeGuid=C8FED1DB79957CB199A0E46EC5A8DFE8
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_2"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureObjectParameter Name="MaterialExpressionTextureObjectParameter_2"
   End Object
   Begin Object Name="MaterialExpressionTextureObjectParameter_2"
      ParameterName="Texture"
      Group="Triplanar"
      SortPriority=0
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      Desc="Texture projected on all three world axes. Feeds the three axis samples through the Tex reroute, so set it once. A tiling texture works best."
      MaterialExpressionEditorX=-1600
      MaterialExpressionEditorY=-620
      MaterialExpressionGuid=17DC55CF2FBD65C562E82DD57B9D013E
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureObjectParameter'MaterialExpressionTextureObjectParameter_2'"
   NodePosX=-1600
   NodePosY=-620
   NodeGuid=EC3F128EA8275AD11E7CBE4598560DEF
   CustomProperties Pin (PinId=0CB00EDC1DD75368AC6B64E9583826A5,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=B8AED9E28060889B77647E48F289ED16,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=011518397492BE4045CE7C3897079502,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_5 91449542926409D112970D81B8BC7DA0,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_3"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_3"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_3"
      ParameterName="Tiling"
      DefaultValue=0.1
      SliderMin=0.001
      SliderMax=1
      Group="Triplanar"
      SortPriority=1
      Desc="Projection scale applied to world position before sampling. Higher = the texture repeats more often / smaller features."
      MaterialExpressionEditorX=-1600
      MaterialExpressionEditorY=-420
      MaterialExpressionGuid=13512E41A6254F044F11E70F04483C3B
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_3'"
   NodePosX=-1600
   NodePosY=-420
   NodeGuid=9267CFFA8A42AC3C074F408FCBB926D8
   CustomProperties Pin (PinId=A202EAC769E7935B4E4D606A52C1FBB3,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_7 77541140E01B00B713876294B7DFD841,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_4"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_4"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_4"
      ParameterName="BlendSharpness"
      DefaultValue=6
      SliderMin=1
      SliderMax=16
      Group="Triplanar"
      SortPriority=2
      Desc="How tightly the three axis projections switch at edges. Higher = crisper seams between faces; lower = a softer blend that suits curved surfaces."
      MaterialExpressionEditorX=-1600
      MaterialExpressionEditorY=-240
      MaterialExpressionGuid=ADA3D2C549E9A91B95AA5514D5334B63
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_4'"
   NodePosX=-1600
   NodePosY=-240
   NodeGuid=13E54247B12BD34A37650D29491CB1E6
   CustomProperties Pin (PinId=35C32AFE3CB9DC549E46775541AA2F30,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_19 3357B97FD5463B3E4EEB34BD0EBD6FD1,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_5"
   Begin Object Class=/Script/Engine.MaterialExpressionNamedRerouteDeclaration Name="MaterialExpressionNamedRerouteDeclaration_5"
   End Object
   Begin Object Name="MaterialExpressionNamedRerouteDeclaration_5"
      Name="Tex"
      NodeColor=(R=0.850000,G=0.500000,B=0.200000,A=1.000000)
      VariableGuid=B7E2A4C18F9D4326A1C05E7B3F8D6420
      Desc="Bus signal: the shared texture object sampled on all three axes."
      Input=(Expression="/Script/Engine.MaterialExpressionTextureObjectParameter'MaterialGraphNode_2.MaterialExpressionTextureObjectParameter_2'")
      MaterialExpressionEditorX=-1020
      MaterialExpressionEditorY=-620
      MaterialExpressionGuid=BA0EDE54D6DEE96F086CA71EFFF58C13
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionNamedRerouteDeclaration'MaterialExpressionNamedRerouteDeclaration_5'"
   NodePosX=-1020
   NodePosY=-620
   NodeGuid=593F1843E9F2A4BCC51089B0347DA698
   CustomProperties Pin (PinId=91449542926409D112970D81B8BC7DA0,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_2 011518397492BE4045CE7C3897079502,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=BC354BE23F4E702E7BF01F2DA02799A3,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_6"
   Begin Object Class=/Script/Engine.MaterialExpressionWorldPosition Name="MaterialExpressionWorldPosition_6"
   End Object
   Begin Object Name="MaterialExpressionWorldPosition_6"
      MaterialExpressionEditorX=-1600
      MaterialExpressionEditorY=40
      MaterialExpressionGuid=C962F67E9AE64B2C58EF9FC41CAFCD2B
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionWorldPosition'MaterialExpressionWorldPosition_6'"
   NodePosX=-1600
   NodePosY=40
   NodeGuid=0ABC03391C4A283DE8DFD2FABB1C4C95
   CustomProperties Pin (PinId=0C44AB6B30A6B6B4B249327B88DD5FB4,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_7 037540267C5FFF1BAEAE8C0243F7F61B,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_7"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_7"
   End Object
   Begin Object Name="MaterialExpressionMultiply_7"
      A=(Expression="/Script/Engine.MaterialExpressionWorldPosition'MaterialGraphNode_6.MaterialExpressionWorldPosition_6'")
      B=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_3.MaterialExpressionScalarParameter_3'")
      MaterialExpressionEditorX=-1240
      MaterialExpressionEditorY=80
      MaterialExpressionGuid=13ED39D98C51E9D9FA472510BC2428F3
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_7'"
   NodePosX=-1240
   NodePosY=80
   NodeGuid=9283DFC0F56AAACB4836D9BE8B148BAD
   CustomProperties Pin (PinId=037540267C5FFF1BAEAE8C0243F7F61B,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_6 0C44AB6B30A6B6B4B249327B88DD5FB4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=77541140E01B00B713876294B7DFD841,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_3 A202EAC769E7935B4E4D606A52C1FBB3,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=4E2D08A9530D7F50AB6DC4BDEF4AA055,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_8 30560CBDAABF2E45B9A1F7E233F68241,MaterialGraphNode_9 9D53B580495CC8230F42995D78741EC9,MaterialGraphNode_10 A33F180A5425E89E69394B67774F1887,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_8"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_8"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_8"
      R=False
      G=True
      B=True
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_7.MaterialExpressionMultiply_7'")
      MaterialExpressionEditorX=-940
      MaterialExpressionEditorY=-120
      MaterialExpressionGuid=B60761E6B739DB46E1E0DD7AE068354B
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_8'"
   NodePosX=-940
   NodePosY=-120
   NodeGuid=1EEBF1B232C0B737004F5836A8D05482
   CustomProperties Pin (PinId=30560CBDAABF2E45B9A1F7E233F68241,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_7 4E2D08A9530D7F50AB6DC4BDEF4AA055,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=1B9E8061EDE0CEB5EFC24ADB05D086F9,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_14 0E74F74ABFB279FE0A467045AD13AEEA,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_9"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_9"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_9"
      R=True
      G=False
      B=True
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_7.MaterialExpressionMultiply_7'")
      MaterialExpressionEditorX=-940
      MaterialExpressionEditorY=80
      MaterialExpressionGuid=9F9248E49D0EC398490BFCD8BF2106B9
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_9'"
   NodePosX=-940
   NodePosY=80
   NodeGuid=87EEA7867CFF7E7FBE2F38F577892DB1
   CustomProperties Pin (PinId=9D53B580495CC8230F42995D78741EC9,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_7 4E2D08A9530D7F50AB6DC4BDEF4AA055,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=ED1DFD004B872FA6A0CF676A605E3CDA,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_15 FFB65CC4231A63EE95016B3FE8B7C5AB,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_10"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_10"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_10"
      R=True
      G=True
      B=False
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_7.MaterialExpressionMultiply_7'")
      MaterialExpressionEditorX=-940
      MaterialExpressionEditorY=280
      MaterialExpressionGuid=645DCC7EE04D75E2CB331660E8961484
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_10'"
   NodePosX=-940
   NodePosY=280
   NodeGuid=34B9DCDF9AEAB89CEC61BD88582B990A
   CustomProperties Pin (PinId=A33F180A5425E89E69394B67774F1887,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_7 4E2D08A9530D7F50AB6DC4BDEF4AA055,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=991DDB1DB7AE54F4653AAB51519E31B5,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 BE06446856B2E4E3EE65E1F61C9C0389,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_11"
   Begin Object Class=/Script/Engine.MaterialExpressionNamedRerouteUsage Name="MaterialExpressionNamedRerouteUsage_11"
   End Object
   Begin Object Name="MaterialExpressionNamedRerouteUsage_11"
      DeclarationGuid=B7E2A4C18F9D4326A1C05E7B3F8D6420
      MaterialExpressionEditorX=-660
      MaterialExpressionEditorY=-220
      MaterialExpressionGuid=5D59970E59D19EA1B13394664ABE44F0
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionNamedRerouteUsage'MaterialExpressionNamedRerouteUsage_11'"
   NodePosX=-660
   NodePosY=-220
   NodeGuid=AC6ED83A8CD3AAFE62CE79F5D73E166F
   CustomProperties Pin (PinId=3150AC3EB04D16A30D07310D752A9B0F,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_14 C78A94562AE92BC23B55403D09079730,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_12"
   Begin Object Class=/Script/Engine.MaterialExpressionNamedRerouteUsage Name="MaterialExpressionNamedRerouteUsage_12"
   End Object
   Begin Object Name="MaterialExpressionNamedRerouteUsage_12"
      DeclarationGuid=B7E2A4C18F9D4326A1C05E7B3F8D6420
      MaterialExpressionEditorX=-660
      MaterialExpressionEditorY=-20
      MaterialExpressionGuid=6F8537C5763796748EAA86A245DC9E96
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionNamedRerouteUsage'MaterialExpressionNamedRerouteUsage_12'"
   NodePosX=-660
   NodePosY=-20
   NodeGuid=9A57A22F765906FA942AAF922133F1C7
   CustomProperties Pin (PinId=7EB67F9010BCE32F9B459F918D381250,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_15 8949ADE7A40E6B2001E3CE5145DBECA4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_13"
   Begin Object Class=/Script/Engine.MaterialExpressionNamedRerouteUsage Name="MaterialExpressionNamedRerouteUsage_13"
   End Object
   Begin Object Name="MaterialExpressionNamedRerouteUsage_13"
      DeclarationGuid=B7E2A4C18F9D4326A1C05E7B3F8D6420
      MaterialExpressionEditorX=-660
      MaterialExpressionEditorY=180
      MaterialExpressionGuid=0C1027A76E05538F1518F17C76B77514
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionNamedRerouteUsage'MaterialExpressionNamedRerouteUsage_13'"
   NodePosX=-660
   NodePosY=180
   NodeGuid=8AD0044CBBC2287CB5A5A9DA60A9B5F8
   CustomProperties Pin (PinId=67E66ADC7C7FB08C4C89B8C9CA467CBB,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 0D8624C9D4DC378469EBC45C8BA66244,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_14"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureSample Name="MaterialExpressionTextureSample_14"
   End Object
   Begin Object Name="MaterialExpressionTextureSample_14"
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      SamplerType=SAMPLERTYPE_SAMPLERTYPE_Color
      Coordinates=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_8.MaterialExpressionComponentMask_8'")
      TextureObject=(Expression="/Script/Engine.MaterialExpressionNamedRerouteUsage'MaterialGraphNode_11.MaterialExpressionNamedRerouteUsage_11'")
      MaterialExpressionEditorX=-440
      MaterialExpressionEditorY=-120
      MaterialExpressionGuid=CE44266A86DF614D6491EF66F975F925
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureSample'MaterialExpressionTextureSample_14'"
   NodePosX=-440
   NodePosY=-120
   NodeGuid=8B5DD66780925D15F4F2DB3088143B3D
   CustomProperties Pin (PinId=0E74F74ABFB279FE0A467045AD13AEEA,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_8 1B9E8061EDE0CEB5EFC24ADB05D086F9,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=C78A94562AE92BC23B55403D09079730,PinName="Tex",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_11 3150AC3EB04D16A30D07310D752A9B0F,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=7BE25812C8E0D029603170FAE93943C2,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=D1B7AB3ED0DC3954E8762499A899831F,PinName="RGB",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_26 1E8A6AA6CA02CBFB6C7CFF15B7E91500,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=525915D88A089A1627AA9C07BF50585F,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=AB3089AABB52513872DDAC22D0D27FB9,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=09799409FE27A995801BA4756DCF7DC5,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=0FBAF448A2ACBFB295462924F35739E4,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=08FDBBE03823E3F5891A31DF33B0179E,PinName="RGBA",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_15"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureSample Name="MaterialExpressionTextureSample_15"
   End Object
   Begin Object Name="MaterialExpressionTextureSample_15"
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      SamplerType=SAMPLERTYPE_SAMPLERTYPE_Color
      Coordinates=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_9.MaterialExpressionComponentMask_9'")
      TextureObject=(Expression="/Script/Engine.MaterialExpressionNamedRerouteUsage'MaterialGraphNode_12.MaterialExpressionNamedRerouteUsage_12'")
      MaterialExpressionEditorX=-440
      MaterialExpressionEditorY=80
      MaterialExpressionGuid=3A877C4BF82647D139E18A5B423DF9B9
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureSample'MaterialExpressionTextureSample_15'"
   NodePosX=-440
   NodePosY=80
   NodeGuid=5CDFCFF8C70B51C5D91D8BE57C08BE86
   CustomProperties Pin (PinId=FFB65CC4231A63EE95016B3FE8B7C5AB,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_9 ED1DFD004B872FA6A0CF676A605E3CDA,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=8949ADE7A40E6B2001E3CE5145DBECA4,PinName="Tex",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_12 7EB67F9010BCE32F9B459F918D381250,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=EC9E8CF78CC48452FABE5E27CA2B5A0F,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=D73ABA1ED59723F0D63A48576A2D6F65,PinName="RGB",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_27 C4C78E892D208B4194D293C63DB05D22,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=01E9C67FC75B91704E45C908530CF26C,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=B7F9A9CE74D7B690CF0DF8A787FF6248,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A77DD0BFB6C9D945084148B433823AB4,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=1CC6D386527547A976F59D9403D01773,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=BD599A12AD7E2C2653665C3099E0B8EA,PinName="RGBA",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_16"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureSample Name="MaterialExpressionTextureSample_16"
   End Object
   Begin Object Name="MaterialExpressionTextureSample_16"
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      SamplerType=SAMPLERTYPE_SAMPLERTYPE_Color
      Coordinates=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_10.MaterialExpressionComponentMask_10'")
      TextureObject=(Expression="/Script/Engine.MaterialExpressionNamedRerouteUsage'MaterialGraphNode_13.MaterialExpressionNamedRerouteUsage_13'")
      MaterialExpressionEditorX=-440
      MaterialExpressionEditorY=280
      MaterialExpressionGuid=6F8A82E8D701DBE68A970ABF10D9427D
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureSample'MaterialExpressionTextureSample_16'"
   NodePosX=-440
   NodePosY=280
   NodeGuid=6AF89C1A44F1566B9FAA8E1A8242194C
   CustomProperties Pin (PinId=BE06446856B2E4E3EE65E1F61C9C0389,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_10 991DDB1DB7AE54F4653AAB51519E31B5,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=0D8624C9D4DC378469EBC45C8BA66244,PinName="Tex",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_13 67E66ADC7C7FB08C4C89B8C9CA467CBB,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=73A7361E265179510B7C7A128204C876,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A0A7C2B60F6B13EB1B626EE3A35750DE,PinName="RGB",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_28 43B7F3B85CF5C3EB09FF7A0E1BA701C1,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=FBE15F4E2FCB3F29319995D01EF2C1E8,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=8FE66E074B61CEDB25C4BC81BA6BF73F,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=50E5B7C526B8D96B8E69C586C9793F58,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=F23B6CB34B7F7522D01B70A041BEBF30,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=B6FE4BC6A024DE3F4CE902EE68BD00A2,PinName="RGBA",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_17"
   Begin Object Class=/Script/Engine.MaterialExpressionVertexNormalWS Name="MaterialExpressionVertexNormalWS_17"
   End Object
   Begin Object Name="MaterialExpressionVertexNormalWS_17"
      MaterialExpressionEditorX=-1280
      MaterialExpressionEditorY=560
      MaterialExpressionGuid=D4884B55C8836467189AFB62709232CD
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVertexNormalWS'MaterialExpressionVertexNormalWS_17'"
   NodePosX=-1280
   NodePosY=560
   NodeGuid=68E4E8E63FF3F7BB4633AC85C07A7A89
   CustomProperties Pin (PinId=E6E2DAB58172FB8CB56F2380D13E215A,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_18 55685518FC153277634A9FD085A3FDE7,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_18"
   Begin Object Class=/Script/Engine.MaterialExpressionAbs Name="MaterialExpressionAbs_18"
   End Object
   Begin Object Name="MaterialExpressionAbs_18"
      Input=(Expression="/Script/Engine.MaterialExpressionVertexNormalWS'MaterialGraphNode_17.MaterialExpressionVertexNormalWS_17'")
      MaterialExpressionEditorX=-1000
      MaterialExpressionEditorY=560
      MaterialExpressionGuid=ACBBA257018617041A20EFA5973A5EC1
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionAbs'MaterialExpressionAbs_18'"
   NodePosX=-1000
   NodePosY=560
   NodeGuid=CF71C9B1193F097E1DA59BEF64B6DEFB
   CustomProperties Pin (PinId=55685518FC153277634A9FD085A3FDE7,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_17 E6E2DAB58172FB8CB56F2380D13E215A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=09158EC060B692D8C24758008A2859D4,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_19 0FD444CFA201DE261BF9E2407B5A7B36,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_19"
   Begin Object Class=/Script/Engine.MaterialExpressionPower Name="MaterialExpressionPower_19"
   End Object
   Begin Object Name="MaterialExpressionPower_19"
      Base=(Expression="/Script/Engine.MaterialExpressionAbs'MaterialGraphNode_18.MaterialExpressionAbs_18'")
      Exponent=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_4.MaterialExpressionScalarParameter_4'")
      MaterialExpressionEditorX=-760
      MaterialExpressionEditorY=540
      MaterialExpressionGuid=E85D1315D634B17E0AC780E5CF5828B6
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionPower'MaterialExpressionPower_19'"
   NodePosX=-760
   NodePosY=540
   NodeGuid=B9D3C050FC7C2C0B2A494556C23E9C93
   CustomProperties Pin (PinId=0FD444CFA201DE261BF9E2407B5A7B36,PinName="Base",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_18 09158EC060B692D8C24758008A2859D4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=3357B97FD5463B3E4EEB34BD0EBD6FD1,PinName="Exp",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_4 35C32AFE3CB9DC549E46775541AA2F30,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=31468ABF137F1E9F4FD749B12B218AFA,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_21 B12BB699F81BE8F6DFC957092BCDE77A,MaterialGraphNode_22 A3FE108B90D6801C61CF49F80ACCBDE9,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_20"
   Begin Object Class=/Script/Engine.MaterialExpressionConstant3Vector Name="MaterialExpressionConstant3Vector_20"
   End Object
   Begin Object Name="MaterialExpressionConstant3Vector_20"
      Constant=(R=1,G=1,B=1,A=0)
      MaterialExpressionEditorX=-760
      MaterialExpressionEditorY=720
      MaterialExpressionGuid=A17A3F666D36DDA4BAC8A560B1319970
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionConstant3Vector'MaterialExpressionConstant3Vector_20'"
   NodePosX=-760
   NodePosY=720
   NodeGuid=896BAE29D703D98F2C6F760B0DA65CCA
   CustomProperties Pin (PinId=D2B323C72B2B44F0ACD8230AAF465802,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_21 E688C6374BE21EB42BFCC8AA3026F801,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_21"
   Begin Object Class=/Script/Engine.MaterialExpressionDotProduct Name="MaterialExpressionDotProduct_21"
   End Object
   Begin Object Name="MaterialExpressionDotProduct_21"
      A=(Expression="/Script/Engine.MaterialExpressionPower'MaterialGraphNode_19.MaterialExpressionPower_19'")
      B=(Expression="/Script/Engine.MaterialExpressionConstant3Vector'MaterialGraphNode_20.MaterialExpressionConstant3Vector_20'")
      MaterialExpressionEditorX=-520
      MaterialExpressionEditorY=600
      MaterialExpressionGuid=97FD06BCF0064AAC494D4216C9F077C3
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionDotProduct'MaterialExpressionDotProduct_21'"
   NodePosX=-520
   NodePosY=600
   NodeGuid=6A2E862AA0E40DA1AB355C9CCD485939
   CustomProperties Pin (PinId=B12BB699F81BE8F6DFC957092BCDE77A,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_19 31468ABF137F1E9F4FD749B12B218AFA,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=E688C6374BE21EB42BFCC8AA3026F801,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_20 D2B323C72B2B44F0ACD8230AAF465802,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=ECA9629DA4E7821C138BEA59047688D9,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_22 2AA3290900F86B87C92CF5E0243C9148,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_22"
   Begin Object Class=/Script/Engine.MaterialExpressionDivide Name="MaterialExpressionDivide_22"
   End Object
   Begin Object Name="MaterialExpressionDivide_22"
      A=(Expression="/Script/Engine.MaterialExpressionPower'MaterialGraphNode_19.MaterialExpressionPower_19'")
      B=(Expression="/Script/Engine.MaterialExpressionDotProduct'MaterialGraphNode_21.MaterialExpressionDotProduct_21'")
      MaterialExpressionEditorX=-300
      MaterialExpressionEditorY=540
      MaterialExpressionGuid=E8866D45A64B8C726B0CEAC90C81F222
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionDivide'MaterialExpressionDivide_22'"
   NodePosX=-300
   NodePosY=540
   NodeGuid=4C0388C72CC0293ED31281587067B090
   CustomProperties Pin (PinId=A3FE108B90D6801C61CF49F80ACCBDE9,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_19 31468ABF137F1E9F4FD749B12B218AFA,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=2AA3290900F86B87C92CF5E0243C9148,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_21 ECA9629DA4E7821C138BEA59047688D9,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=C6A720B6F3828BEA72D628DEDEBC6763,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_23 FC078907E58662D2F488AE5FDEA8F630,MaterialGraphNode_24 0D712ECF4857CC39FDF7FD895C948886,MaterialGraphNode_25 E79C17451F0CBDAF246BDDEACCD8A193,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_23"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_23"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_23"
      R=True
      G=False
      B=False
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionDivide'MaterialGraphNode_22.MaterialExpressionDivide_22'")
      MaterialExpressionEditorX=-60
      MaterialExpressionEditorY=440
      MaterialExpressionGuid=E4EA7732E2F326C06B1906E62295BF06
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_23'"
   NodePosX=-60
   NodePosY=440
   NodeGuid=3501F67E806C924D2FA498F1C3BDC25E
   CustomProperties Pin (PinId=FC078907E58662D2F488AE5FDEA8F630,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_22 C6A720B6F3828BEA72D628DEDEBC6763,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=1FC8B6B6871E87A6B95E1F147D442673,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_26 C8123EACB6E375F45E6B64172BDA21F7,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_24"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_24"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_24"
      R=False
      G=True
      B=False
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionDivide'MaterialGraphNode_22.MaterialExpressionDivide_22'")
      MaterialExpressionEditorX=-60
      MaterialExpressionEditorY=600
      MaterialExpressionGuid=7365D1206138323A61B259268B16BD0E
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_24'"
   NodePosX=-60
   NodePosY=600
   NodeGuid=F056F2A525CC581C4052FBA469B548CC
   CustomProperties Pin (PinId=0D712ECF4857CC39FDF7FD895C948886,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_22 C6A720B6F3828BEA72D628DEDEBC6763,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=F4BF3B3C6D68C81CD9D43682E70D8158,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_27 125D1F94ACCE6FC8DACF1B0E77BC8526,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_25"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_25"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_25"
      R=False
      G=False
      B=True
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionDivide'MaterialGraphNode_22.MaterialExpressionDivide_22'")
      MaterialExpressionEditorX=-60
      MaterialExpressionEditorY=760
      MaterialExpressionGuid=F62A52FE043747FFB2688E6206DA58CE
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_25'"
   NodePosX=-60
   NodePosY=760
   NodeGuid=BBC491BAE3366CEED47F255503BD7BA6
   CustomProperties Pin (PinId=E79C17451F0CBDAF246BDDEACCD8A193,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_22 C6A720B6F3828BEA72D628DEDEBC6763,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=1BD0EDBC5787C84BF09F119F75F32174,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_28 09FD9EA4553DFD3CC7E14E2B65776367,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_26"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_26"
   End Object
   Begin Object Name="MaterialExpressionMultiply_26"
      A=(Expression="/Script/Engine.MaterialExpressionTextureSample'MaterialGraphNode_14.MaterialExpressionTextureSample_14'")
      B=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_23.MaterialExpressionComponentMask_23'")
      MaterialExpressionEditorX=220
      MaterialExpressionEditorY=-40
      MaterialExpressionGuid=961873F6EBE146723155E7B5D351BFAD
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_26'"
   NodePosX=220
   NodePosY=-40
   NodeGuid=B8BD104052E13150562AD7D689D493A9
   CustomProperties Pin (PinId=1E8A6AA6CA02CBFB6C7CFF15B7E91500,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_14 D1B7AB3ED0DC3954E8762499A899831F,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=C8123EACB6E375F45E6B64172BDA21F7,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_23 1FC8B6B6871E87A6B95E1F147D442673,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=1B8C6EAF53354ADFC7107BE6E7C4715E,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_29 A0097FEAACD3A95143CD69E1BA4F3CE7,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_27"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_27"
   End Object
   Begin Object Name="MaterialExpressionMultiply_27"
      A=(Expression="/Script/Engine.MaterialExpressionTextureSample'MaterialGraphNode_15.MaterialExpressionTextureSample_15'")
      B=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_24.MaterialExpressionComponentMask_24'")
      MaterialExpressionEditorX=220
      MaterialExpressionEditorY=160
      MaterialExpressionGuid=694C4FC842F3405C69F39F52C2E4CF7C
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_27'"
   NodePosX=220
   NodePosY=160
   NodeGuid=D07BF988BB634B0F56EB3883D986778F
   CustomProperties Pin (PinId=C4C78E892D208B4194D293C63DB05D22,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_15 D73ABA1ED59723F0D63A48576A2D6F65,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=125D1F94ACCE6FC8DACF1B0E77BC8526,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_24 F4BF3B3C6D68C81CD9D43682E70D8158,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=B0498BE005EF522FE102FBB72C2FBDA7,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_29 5022D0A800EE84319266A28C55D933DC,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_28"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_28"
   End Object
   Begin Object Name="MaterialExpressionMultiply_28"
      A=(Expression="/Script/Engine.MaterialExpressionTextureSample'MaterialGraphNode_16.MaterialExpressionTextureSample_16'")
      B=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_25.MaterialExpressionComponentMask_25'")
      MaterialExpressionEditorX=220
      MaterialExpressionEditorY=360
      MaterialExpressionGuid=2F6829C8D573A70F2CDEE6A6A082C36D
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_28'"
   NodePosX=220
   NodePosY=360
   NodeGuid=BDDACA9499FE36E49BF73A760F66637C
   CustomProperties Pin (PinId=43B7F3B85CF5C3EB09FF7A0E1BA701C1,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 A0A7C2B60F6B13EB1B626EE3A35750DE,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=09FD9EA4553DFD3CC7E14E2B65776367,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_25 1BD0EDBC5787C84BF09F119F75F32174,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=26D6BD0F58D5E3811D9614DD9C98F02A,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_30 A5BC89AF9BF2ECC5C60550E2D5AEDCC1,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_29"
   Begin Object Class=/Script/Engine.MaterialExpressionAdd Name="MaterialExpressionAdd_29"
   End Object
   Begin Object Name="MaterialExpressionAdd_29"
      A=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_26.MaterialExpressionMultiply_26'")
      B=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_27.MaterialExpressionMultiply_27'")
      MaterialExpressionEditorX=480
      MaterialExpressionEditorY=80
      MaterialExpressionGuid=807D4FD5F46CD5CB3E716BA8F5AFFF6A
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionAdd'MaterialExpressionAdd_29'"
   NodePosX=480
   NodePosY=80
   NodeGuid=6AD165C73D6684960BD1B9D791C74094
   CustomProperties Pin (PinId=A0097FEAACD3A95143CD69E1BA4F3CE7,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_26 1B8C6EAF53354ADFC7107BE6E7C4715E,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=5022D0A800EE84319266A28C55D933DC,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_27 B0498BE005EF522FE102FBB72C2FBDA7,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=EE73A554BE19928F7A70945DB4C9824F,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_30 213E4A6B6BCCFE754AB52CE80FBA472B,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_30"
   Begin Object Class=/Script/Engine.MaterialExpressionAdd Name="MaterialExpressionAdd_30"
   End Object
   Begin Object Name="MaterialExpressionAdd_30"
      A=(Expression="/Script/Engine.MaterialExpressionAdd'MaterialGraphNode_29.MaterialExpressionAdd_29'")
      B=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_28.MaterialExpressionMultiply_28'")
      MaterialExpressionEditorX=727
      MaterialExpressionEditorY=180
      MaterialExpressionGuid=A1E812B53C63BE909DA37022A7072144
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionAdd'MaterialExpressionAdd_30'"
   NodePosX=727
   NodePosY=180
   NodeGuid=07383A2AACDA606848B29A329E03D851
   CustomProperties Pin (PinId=213E4A6B6BCCFE754AB52CE80FBA472B,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_29 EE73A554BE19928F7A70945DB4C9824F,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A5BC89AF9BF2ECC5C60550E2D5AEDCC1,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_28 26D6BD0F58D5E3811D9614DD9C98F02A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=2E8D9CEF9E2ED3592B06A88E5782AE6B,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Root_31 6FA8170F7661CF3E842E555D15747489,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Root Name="MaterialGraphNode_Root_31"
   Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   NodePosX=1127
   NodePosY=124
   NodeGuid=47DC751548ABFF441461426F9178AB6E
   CustomProperties Pin (PinId=6FA8170F7661CF3E842E555D15747489,PinName="Base Color",PinType.PinCategory="materialinput",PinType.PinSubCategory="rgba",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_30 2E8D9CEF9E2ED3592B06A88E5782AE6B,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Nodes: ComponentMask (x6), Multiply (x4), NamedRerouteUsage (x3), TextureSample (x3), Add (x2), Comment (x2), ScalarParameter (x2), Abs, Constant3Vector, Divide, DotProduct, Material, NamedRerouteDeclaration, Power, TextureObjectParameter, VertexNormalWS, WorldPosition

more from @hazesee all

Water Puddle

@hazeUE 5.7

Caustics (Light Function)

@hazeUE 5.5+

Holographic Signs

@hazeUE 5.6+

More like this

browse all

Cheap Triplanar

@eeveeUE 5.6+

Object-Aligned Triplanar

@hazeUE 5.6+

Caustics (Light Function)

@hazeUE 5.5+

World-Aligned Triplanar

@hazefounder
Nanite-friendly
UE 5.6UE 5.7
4
license

CC0 1.0: Public Domain

Public domain: use it however you like, no credit required.

dependencies

Zero dependencies

Pastes and works in any UE 5.3+ project. No textures, no material functions, no MPCs.

tags
#procedural#triplanar#no-uvs#node-group#world-space#world-aligned#texture-projection#environment
ue compatibility
UE 5.3UE 5.4UE 5.5UE 5.6UE 5.7

Details

Last update
10 days ago
Published
12 days ago
Nodes
32
