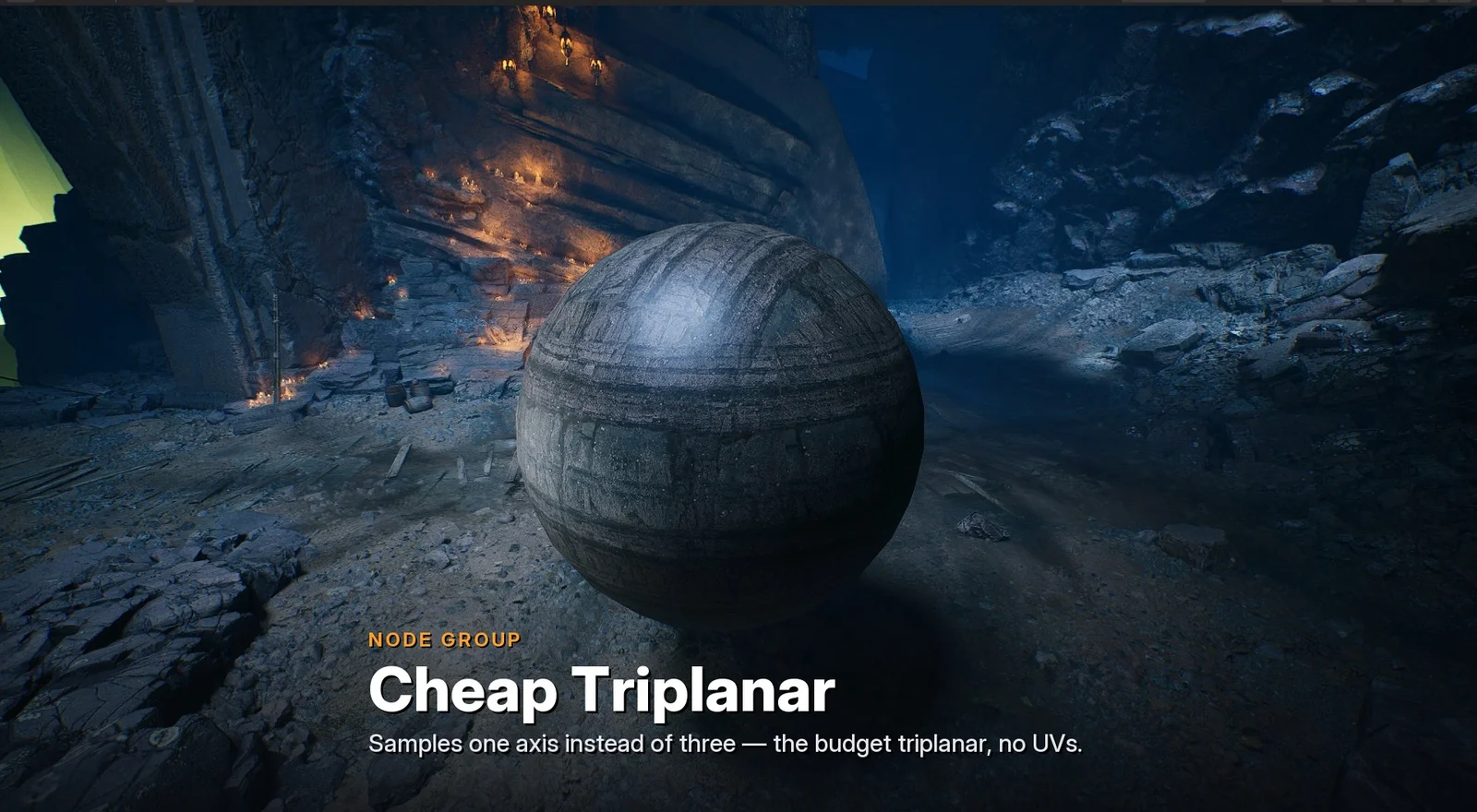

Cheap Triplanar

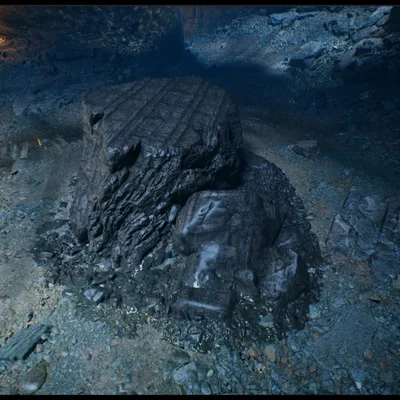

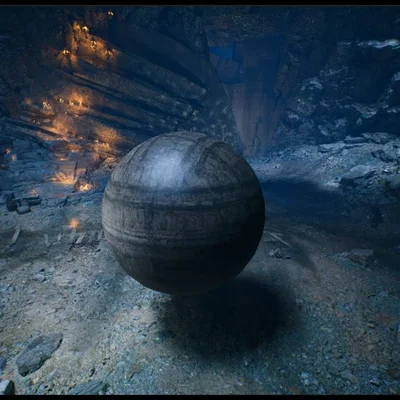

preview · 1 / 3

Description

Lightweight cheap triplanar. Instead of sampling three axes and blending, it picks the axis each surface faces most and samples once, for about a third of the texture cost. Perfect for the layers where cost adds up and seams don't matter: grunge, dirt, dust, camo and masks stacked over a base. World anchored, so it stays continuous across separate meshes. Set the Texture and Tiling, wire the result into any input.

material graph

Preview only · open in editor for full material editing

Want this graph on your blog or forum?

0 comments

Sign in to join the discussion.

No comments yet. Be the first.

source
View T3D source (49 KB)expand
Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_0"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C0"
   End Object
   Begin Object Name="MaterialExpressionComment_C0"
      SizeX=540
      SizeY=440
      Text="Triplanar"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-1640
      MaterialExpressionEditorY=-700
      MaterialExpressionGuid=196F47F1727E9D7C8207C198D804E7E0
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C0'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-1640
   NodePosY=-700
   NodeWidth=540
   NodeHeight=440
   NodeComment="Triplanar"
   NodeGuid=5254CF6C2FEE1C08C8A0B01D32B56BEB
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_1"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C1"
   End Object
   Begin Object Name="MaterialExpressionComment_C1"
      SizeX=340
      SizeY=260
      Text="Result → Base Color (or any input)"
      CommentColor=(R=0.162029,G=0.417885,B=0.063010,A=1.000000)
      MaterialExpressionEditorX=80
      MaterialExpressionEditorY=40
      MaterialExpressionGuid=3FF7C99EF6498359FD4CC075BB7D41F1
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C1'"
   CommentColor=(R=0.162029,G=0.417885,B=0.063010,A=1.000000)
   NodePosX=80
   NodePosY=40
   NodeWidth=340
   NodeHeight=260
   NodeComment="Result → Base Color (or any input)"
   NodeGuid=267BE8AB3D6DCA3484F8887BE46B314A
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_2"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureObjectParameter Name="MaterialExpressionTextureObjectParameter_2"
   End Object
   Begin Object Name="MaterialExpressionTextureObjectParameter_2"
      ParameterName="Texture"
      Group="Triplanar"
      SortPriority=0
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      Desc="Texture projected onto the mesh. A tiling texture works best."
      MaterialExpressionEditorX=-1600
      MaterialExpressionEditorY=-600
      MaterialExpressionGuid=00FDE48D5B5D590BC23AC499A6D085AF
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureObjectParameter'MaterialExpressionTextureObjectParameter_2'"
   NodePosX=-1600
   NodePosY=-600
   NodeGuid=8873D4C9FADDF01C13859ADA9E8B4F18
   CustomProperties Pin (PinId=A60802B957EB0C99DE3CDE831F023253,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=3B810249BE003F36588C3353BBA6E2DF,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=3D4D5730AB40472A69D94D0C54318C76,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_17 2FAB24BB4692806056B6174824AEEBB4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_3"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_3"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_3"
      ParameterName="Tiling"
      DefaultValue=0.1
      SliderMin=0.001
      SliderMax=1
      Group="Triplanar"
      SortPriority=1
      Desc="Projection scale applied to world position before sampling. Higher = the texture repeats more often / smaller features."
      MaterialExpressionEditorX=-1600
      MaterialExpressionEditorY=-400
      MaterialExpressionGuid=8F440D0D17AD587E80A68804D2F74E6F
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_3'"
   NodePosX=-1600
   NodePosY=-400
   NodeGuid=C24643963460B29A36FAC3F6306B79D6
   CustomProperties Pin (PinId=0EC3420E6BA2AF8B3723F265E232200B,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_5 EF722F4C9490C34DF51661507246F15A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_4"
   Begin Object Class=/Script/Engine.MaterialExpressionWorldPosition Name="MaterialExpressionWorldPosition_4"
   End Object
   Begin Object Name="MaterialExpressionWorldPosition_4"
      MaterialExpressionEditorX=-1600
      MaterialExpressionEditorY=40
      MaterialExpressionGuid=9D96C07A063562409E80E2BAFDB0236D
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionWorldPosition'MaterialExpressionWorldPosition_4'"
   NodePosX=-1600
   NodePosY=40
   NodeGuid=54F66FD2B8E7898A397BA54C7E101971
   CustomProperties Pin (PinId=3477536288CDC2BD35A8D451C57D0864,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_5 447F03DAAEA993FB5601AF34B94FF25C,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_5"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_5"
   End Object
   Begin Object Name="MaterialExpressionMultiply_5"
      A=(Expression="/Script/Engine.MaterialExpressionWorldPosition'MaterialGraphNode_4.MaterialExpressionWorldPosition_4'")
      B=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_3.MaterialExpressionScalarParameter_3'")
      MaterialExpressionEditorX=-1300
      MaterialExpressionEditorY=80
      MaterialExpressionGuid=B067316D2228D31902BA2C7BFAEAC1B5
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_5'"
   NodePosX=-1300
   NodePosY=80
   NodeGuid=ACE7BE1288E31FF7FD2750D0E6A4B923
   CustomProperties Pin (PinId=447F03DAAEA993FB5601AF34B94FF25C,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_4 3477536288CDC2BD35A8D451C57D0864,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=EF722F4C9490C34DF51661507246F15A,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_3 0EC3420E6BA2AF8B3723F265E232200B,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=63DC829A237DEC346CD54A180D094054,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_6 F2F8459984035B4EB5C629C550CF5D06,MaterialGraphNode_7 6016A00B36A8F88EE0D7E18EE202E8AB,MaterialGraphNode_8 47BF742A1FBAED00E04F299BB0543D4B,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_6"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_6"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_6"
      R=False
      G=True
      B=True
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_5.MaterialExpressionMultiply_5'")
      MaterialExpressionEditorX=-1040
      MaterialExpressionEditorY=-120
      MaterialExpressionGuid=768433E5FFDDD55CA805EB4E2A3CF9C4
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_6'"
   NodePosX=-1040
   NodePosY=-120
   NodeGuid=208322C2C3CA085F64503BE74CBF06F2
   CustomProperties Pin (PinId=F2F8459984035B4EB5C629C550CF5D06,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_5 63DC829A237DEC346CD54A180D094054,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=B120A2972200743FEE196AF9F3C53EEC,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 F5980DB7F4A1905533AC4CD83122685B,MaterialGraphNode_16 40546F38F3939BBC1DA50A2A5C7AF290,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_7"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_7"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_7"
      R=True
      G=False
      B=True
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_5.MaterialExpressionMultiply_5'")
      MaterialExpressionEditorX=-1040
      MaterialExpressionEditorY=60
      MaterialExpressionGuid=68BE28E1883F0C9DA4C54B32A9FB718D
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_7'"
   NodePosX=-1040
   NodePosY=60
   NodeGuid=F3BCF4ED6ED525293583172B703B0689
   CustomProperties Pin (PinId=6016A00B36A8F88EE0D7E18EE202E8AB,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_5 63DC829A237DEC346CD54A180D094054,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=2D7A09CCB61247630818F271D5D55694,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_15 AF4497ED8997C902ACF4F860A9FE4A0C,MaterialGraphNode_15 A0CA29E3868D92F44C899334EC29D2C8,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_8"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_8"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_8"
      R=True
      G=True
      B=False
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_5.MaterialExpressionMultiply_5'")
      MaterialExpressionEditorX=-1040
      MaterialExpressionEditorY=240
      MaterialExpressionGuid=D7E9E5E65103B803D6603BB3134924AB
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_8'"
   NodePosX=-1040
   NodePosY=240
   NodeGuid=6BF82F5E82550D01D4CC119E93E3AF15
   CustomProperties Pin (PinId=47BF742A1FBAED00E04F299BB0543D4B,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_5 63DC829A237DEC346CD54A180D094054,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=5BD5DA555D061199E1D059DDE84C09DA,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_15 E021C2C72D812BFD7B54263B23649993,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_9"
   Begin Object Class=/Script/Engine.MaterialExpressionVertexNormalWS Name="MaterialExpressionVertexNormalWS_9"
   End Object
   Begin Object Name="MaterialExpressionVertexNormalWS_9"
      MaterialExpressionEditorX=-1600
      MaterialExpressionEditorY=540
      MaterialExpressionGuid=6872AADC4448BBAD654B4116EF528ED0
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVertexNormalWS'MaterialExpressionVertexNormalWS_9'"
   NodePosX=-1600
   NodePosY=540
   NodeGuid=B9DEB01AE06BD9AF29CE19B7335AB62E
   CustomProperties Pin (PinId=1A648DF7188DA57760A7E5B427299C24,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_10 0691314AEAECC262983AC528CAEAF990,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_10"
   Begin Object Class=/Script/Engine.MaterialExpressionAbs Name="MaterialExpressionAbs_10"
   End Object
   Begin Object Name="MaterialExpressionAbs_10"
      Input=(Expression="/Script/Engine.MaterialExpressionVertexNormalWS'MaterialGraphNode_9.MaterialExpressionVertexNormalWS_9'")
      MaterialExpressionEditorX=-1340
      MaterialExpressionEditorY=540
      MaterialExpressionGuid=A978E83C06582D92798BC0AAC3406941
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionAbs'MaterialExpressionAbs_10'"
   NodePosX=-1340
   NodePosY=540
   NodeGuid=10D2588A8EBEB2B35CC58C81EA6533B5
   CustomProperties Pin (PinId=0691314AEAECC262983AC528CAEAF990,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_9 1A648DF7188DA57760A7E5B427299C24,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=E1BCB2F0D831378C107B623625F703C0,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_11 41DFCDDF6AC1F9E99362338D952B5AC1,MaterialGraphNode_12 A9136BE55ED3495EDA9AD357F628D894,MaterialGraphNode_13 A84C99A096458F612F37FDAD28047A34,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_11"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_11"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_11"
      R=True
      G=False
      B=False
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionAbs'MaterialGraphNode_10.MaterialExpressionAbs_10'")
      MaterialExpressionEditorX=-1100
      MaterialExpressionEditorY=440
      MaterialExpressionGuid=F1E69701D7E36797F0DC67B27713EFDF
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_11'"
   NodePosX=-1100
   NodePosY=440
   NodeGuid=4E90A9678339FB44BC9EFCAD69B1CC2B
   CustomProperties Pin (PinId=41DFCDDF6AC1F9E99362338D952B5AC1,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_10 E1BCB2F0D831378C107B623625F703C0,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=F427326DC3782D7A6E68B8FA4197CF62,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 91B8A4319A869D7029ED693B809EE3C8,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_12"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_12"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_12"
      R=False
      G=True
      B=False
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionAbs'MaterialGraphNode_10.MaterialExpressionAbs_10'")
      MaterialExpressionEditorX=-1100
      MaterialExpressionEditorY=600
      MaterialExpressionGuid=A92C0662F7A181093E4EA9D6C309370D
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_12'"
   NodePosX=-1100
   NodePosY=600
   NodeGuid=0FEF7DE0F8F1DEAE657190771A668A6D
   CustomProperties Pin (PinId=A9136BE55ED3495EDA9AD357F628D894,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_10 E1BCB2F0D831378C107B623625F703C0,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=EABF10E34F406F1B05EB6759E7481D16,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_14 F6E19D5A32BE490AD4FDF8499DF272CF,MaterialGraphNode_15 326B61CECEECCB33FB6E44D6FF82AFED,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_13"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_13"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_13"
      R=False
      G=False
      B=True
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionAbs'MaterialGraphNode_10.MaterialExpressionAbs_10'")
      MaterialExpressionEditorX=-1100
      MaterialExpressionEditorY=760
      MaterialExpressionGuid=27D8D5B29199E1E85C03699C210F9FB0
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_13'"
   NodePosX=-1100
   NodePosY=760
   NodeGuid=D2263D02D567B8547768EBF495C547E4
   CustomProperties Pin (PinId=A84C99A096458F612F37FDAD28047A34,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_10 E1BCB2F0D831378C107B623625F703C0,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=C80334B045E5FEA706798C02993A41BF,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_14 098FE438CD28C41D41B1FA3C6C319DB8,MaterialGraphNode_15 6AAA664EDBD41AD043FF23BFCD1DF4B6,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_14"
   Begin Object Class=/Script/Engine.MaterialExpressionMax Name="MaterialExpressionMax_14"
   End Object
   Begin Object Name="MaterialExpressionMax_14"
      A=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_12.MaterialExpressionComponentMask_12'")
      B=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_13.MaterialExpressionComponentMask_13'")
      MaterialExpressionEditorX=-840
      MaterialExpressionEditorY=680
      MaterialExpressionGuid=36F43087D8F8DABF742C5058EA6463CB
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMax'MaterialExpressionMax_14'"
   NodePosX=-840
   NodePosY=680
   NodeGuid=F2F277006D5099335DF40695899EC59D
   CustomProperties Pin (PinId=F6E19D5A32BE490AD4FDF8499DF272CF,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_12 EABF10E34F406F1B05EB6759E7481D16,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=098FE438CD28C41D41B1FA3C6C319DB8,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_13 C80334B045E5FEA706798C02993A41BF,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=14C7F2BA82AF7DB3884A80CF0F16180C,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 DF4B180C70B159FC0FB7BDCB819D2A9D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_15"
   Begin Object Class=/Script/Engine.MaterialExpressionIf Name="MaterialExpressionIf_15"
   End Object
   Begin Object Name="MaterialExpressionIf_15"
      A=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_12.MaterialExpressionComponentMask_12'")
      B=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_13.MaterialExpressionComponentMask_13'")
      AGreaterThanB=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_7.MaterialExpressionComponentMask_7'")
      AEqualsB=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_7.MaterialExpressionComponentMask_7'")
      ALessThanB=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_8.MaterialExpressionComponentMask_8'")
      MaterialExpressionEditorX=-560
      MaterialExpressionEditorY=360
      MaterialExpressionGuid=CE0E1348A4288A15CD1732A1A661FF41
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionIf'MaterialExpressionIf_15'"
   NodePosX=-560
   NodePosY=360
   NodeGuid=77183F461D6CCF8D82CA7A1B6A011841
   CustomProperties Pin (PinId=326B61CECEECCB33FB6E44D6FF82AFED,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_12 EABF10E34F406F1B05EB6759E7481D16,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=6AAA664EDBD41AD043FF23BFCD1DF4B6,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_13 C80334B045E5FEA706798C02993A41BF,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=AF4497ED8997C902ACF4F860A9FE4A0C,PinName="A>B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_7 2D7A09CCB61247630818F271D5D55694,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A0CA29E3868D92F44C899334EC29D2C8,PinName="A=B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_7 2D7A09CCB61247630818F271D5D55694,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=E021C2C72D812BFD7B54263B23649993,PinName="A<B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_8 5BD5DA555D061199E1D059DDE84C09DA,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A3C3A6F059C26E44AA8048699F6520C5,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 2157D88EDCA7E114061082BBCE9B8F6C,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_16"
   Begin Object Class=/Script/Engine.MaterialExpressionIf Name="MaterialExpressionIf_16"
   End Object
   Begin Object Name="MaterialExpressionIf_16"
      A=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_11.MaterialExpressionComponentMask_11'")
      B=(Expression="/Script/Engine.MaterialExpressionMax'MaterialGraphNode_14.MaterialExpressionMax_14'")
      AGreaterThanB=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_6.MaterialExpressionComponentMask_6'")
      AEqualsB=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_6.MaterialExpressionComponentMask_6'")
      ALessThanB=(Expression="/Script/Engine.MaterialExpressionIf'MaterialGraphNode_15.MaterialExpressionIf_15'")
      MaterialExpressionEditorX=-280
      MaterialExpressionEditorY=180
      MaterialExpressionGuid=3E48D0B917201BF0941E90606073A756
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionIf'MaterialExpressionIf_16'"
   NodePosX=-280
   NodePosY=180
   NodeGuid=C93DB922B4FF5F03226363205B1998EE
   CustomProperties Pin (PinId=91B8A4319A869D7029ED693B809EE3C8,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_11 F427326DC3782D7A6E68B8FA4197CF62,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=DF4B180C70B159FC0FB7BDCB819D2A9D,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_14 14C7F2BA82AF7DB3884A80CF0F16180C,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=F5980DB7F4A1905533AC4CD83122685B,PinName="A>B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_6 B120A2972200743FEE196AF9F3C53EEC,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=40546F38F3939BBC1DA50A2A5C7AF290,PinName="A=B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_6 B120A2972200743FEE196AF9F3C53EEC,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=2157D88EDCA7E114061082BBCE9B8F6C,PinName="A<B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_15 A3C3A6F059C26E44AA8048699F6520C5,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=C799CFC8E3F081F248658B1453E2D616,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_17 2DB3FBE5DF82790B105CEC48D54E4EF2,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_17"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureSample Name="MaterialExpressionTextureSample_17"
   End Object
   Begin Object Name="MaterialExpressionTextureSample_17"
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      SamplerType=SAMPLERTYPE_SAMPLERTYPE_Color
      Coordinates=(Expression="/Script/Engine.MaterialExpressionIf'MaterialGraphNode_16.MaterialExpressionIf_16'")
      TextureObject=(Expression="/Script/Engine.MaterialExpressionTextureObjectParameter'MaterialGraphNode_2.MaterialExpressionTextureObjectParameter_2'")
      MaterialExpressionEditorX=120
      MaterialExpressionEditorY=120
      MaterialExpressionGuid=1C7BEE85552EA45DDA9ABAC90EF43A7E
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureSample'MaterialExpressionTextureSample_17'"
   NodePosX=120
   NodePosY=120
   NodeGuid=694B89BB43341FE111B3C7E402E01979
   CustomProperties Pin (PinId=2DB3FBE5DF82790B105CEC48D54E4EF2,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 C799CFC8E3F081F248658B1453E2D616,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=2FAB24BB4692806056B6174824AEEBB4,PinName="Tex",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_2 3D4D5730AB40472A69D94D0C54318C76,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=0EFA4F27A44F8BA1160F2D55FD2399C2,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=6061B34F674F0B38F1242EDF470E675A,PinName="RGB",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Root_18 47E9A458073211DD9B78B69307BE1D10,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=EF490939CB6F6864C8ECCF9A057CF25D,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=80181BF3CC215C105B3C9FA2F6B5CB81,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=85D6BBD2FD1ABBA199778729C4ED317C,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=9E3A08CD2FA27F8AF87FD378DAF38E84,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=B5767063C91B18722D99F9A06B6FD261,PinName="RGBA",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Root Name="MaterialGraphNode_Root_18"
   Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   NodePosX=556
   NodePosY=12
   NodeGuid=3F1B505475D795ED85ECE3CA3851DD93
   CustomProperties Pin (PinId=47E9A458073211DD9B78B69307BE1D10,PinName="Base Color",PinType.PinCategory="materialinput",PinType.PinSubCategory="rgba",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_17 6061B34F674F0B38F1242EDF470E675A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Nodes: ComponentMask (x6), Comment (x2), If (x2), Abs, Material, Max, Multiply, ScalarParameter, TextureObjectParameter, TextureSample, VertexNormalWS, WorldPosition

more from @eeveesee all

Laser Grid / Security Barrier

@eeveeUE 5.6+

Procedural Edge Wear

@eeveeUE 5.6

More like this

browse all

World-Aligned Triplanar

@hazeUE 5.6+

Object-Aligned Triplanar

@hazeUE 5.6+

Caustics (Light Function)

@hazeUE 5.5+

Cheap Triplanar

@eevee
Nanite-friendly
UE 5.6UE 5.7
12
license

CC0 1.0: Public Domain

Public domain: use it however you like, no credit required.

dependencies

Zero dependencies

Pastes and works in any UE 5.3+ project. No textures, no material functions, no MPCs.

tags
#procedural#triplanar#no-uvs#world-space#texture-projection#performance#optimized#masks
ue compatibility
UE 5.3UE 5.4UE 5.5UE 5.6UE 5.7

Details

Last update
yesterday
Published
11 days ago
Nodes
19
