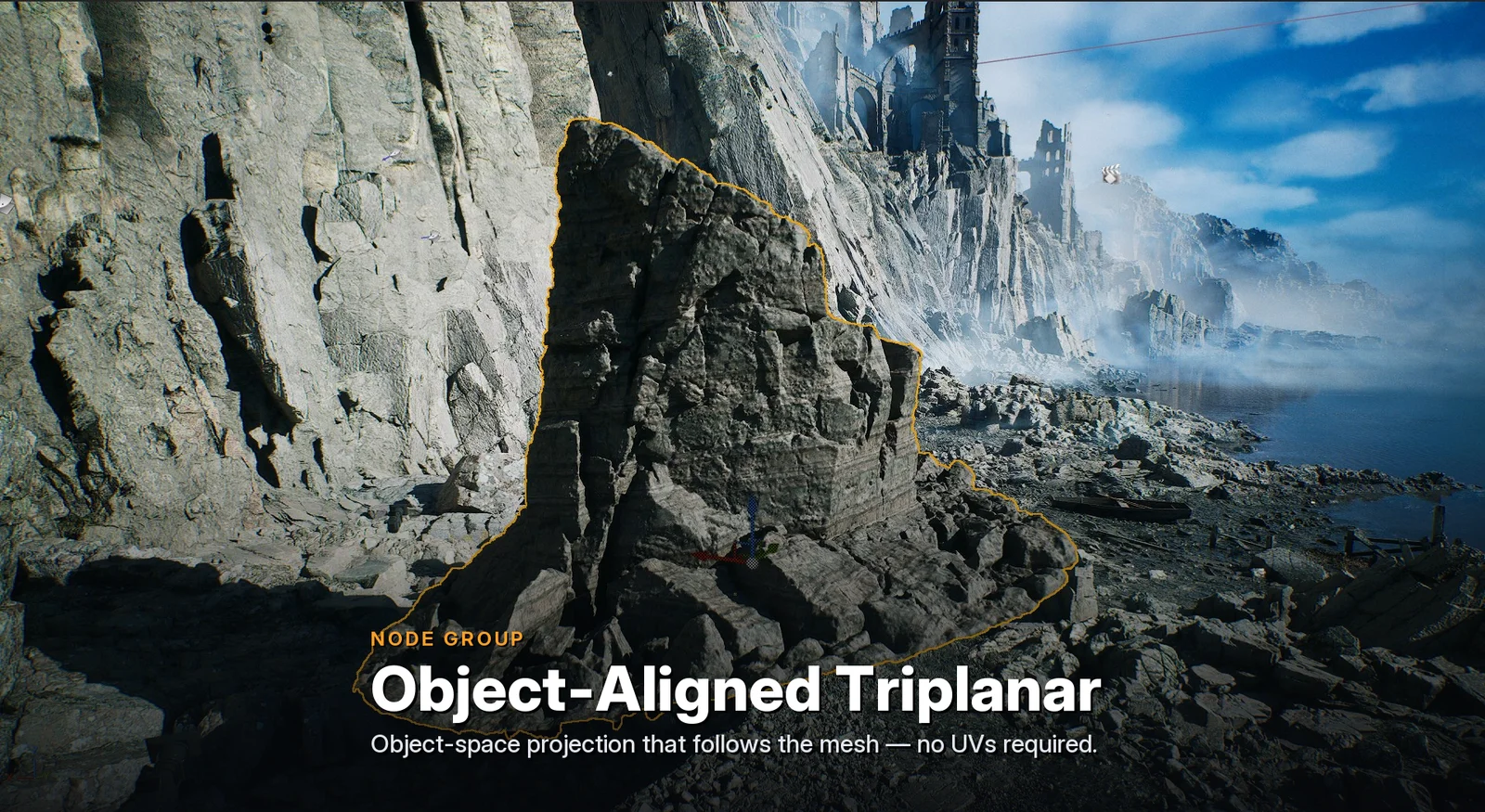

Object-Aligned Triplanar

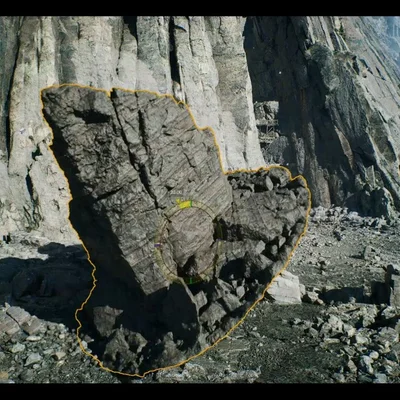

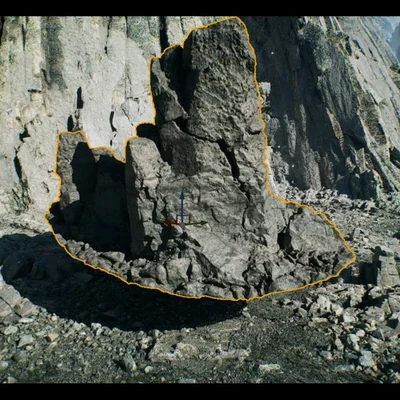

preview · 1 / 3

Description

A paste-in node group that projects a single texture onto any mesh along its three local axes, no UVs required. It's a fast way to build materials: drop it in anywhere you'd normally sample a texture and it makes that sample triplanar, so base colour, roughness, masks or detail layers can all wrap a mesh cleanly without UVs. Because it works in object space, the projection stays locked to the mesh as it's rotated or moved ideal for rocks, terrain, modular kit pieces, blockouts and kitbashed props.

material graph

Preview only · open in editor for full material editing

Want this graph on your blog or forum?

0 comments

Sign in to join the discussion.

No comments yet. Be the first.

source
View T3D source (83 KB)expand
Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_0"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C0"
   End Object
   Begin Object Name="MaterialExpressionComment_C0"
      SizeX=540
      SizeY=620
      Text="Triplanar"
      CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
      MaterialExpressionEditorX=-1640
      MaterialExpressionEditorY=-720
      MaterialExpressionGuid=3BDF5296979E144FF204EF5F670CEE66
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C0'"
   CommentColor=(R=0.104616,G=0.327778,B=0.665387,A=1.000000)
   NodePosX=-1640
   NodePosY=-720
   NodeWidth=540
   NodeHeight=620
   NodeComment="Triplanar"
   NodeGuid=12CA8D6BB4539CAB5A41277E4C4E388E
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_1"
   Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_C1"
   End Object
   Begin Object Name="MaterialExpressionComment_C1"
      SizeX=320
      SizeY=240
      Text="Result → Base Color (or any input)"
      CommentColor=(R=0.162029,G=0.417885,B=0.063010,A=1.000000)
      MaterialExpressionEditorX=679
      MaterialExpressionEditorY=187
      MaterialExpressionGuid=0EE650299D3F2314457333C9BFDA8694
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpressionComment="/Script/Engine.MaterialExpressionComment'MaterialExpressionComment_C1'"
   CommentColor=(R=0.162029,G=0.417885,B=0.063010,A=1.000000)
   NodePosX=679
   NodePosY=187
   NodeWidth=320
   NodeHeight=240
   NodeComment="Result → Base Color (or any input)"
   NodeGuid=0215AEF34F4B771BAE3759E83D144432
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_2"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureObjectParameter Name="MaterialExpressionTextureObjectParameter_2"
   End Object
   Begin Object Name="MaterialExpressionTextureObjectParameter_2"
      ParameterName="Texture"
      Group="Triplanar"
      SortPriority=0
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      Desc="Texture projected on all three local axes. Feeds the three axis samples through the Tex reroute, so set it once. A tiling texture works best."
      MaterialExpressionEditorX=-1600
      MaterialExpressionEditorY=-620
      MaterialExpressionGuid=0DBBB448B324D0EA04CC1A7A1F5CC598
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureObjectParameter'MaterialExpressionTextureObjectParameter_2'"
   NodePosX=-1600
   NodePosY=-620
   NodeGuid=BC5D04C6B7091B02CDEFDFCA8B101520
   CustomProperties Pin (PinId=034002BC5906D3448C364747278B048C,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=3A065953C9B7DC72F096E7D2AD9DC782,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=EAC26DDB9F3867D23450EA2541B30515,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_5 48141D176ED1C5494EF57523C1FBA670,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_3"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_3"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_3"
      ParameterName="Tiling"
      DefaultValue=0.1
      SliderMin=0.001
      SliderMax=1
      Group="Triplanar"
      SortPriority=1
      Desc="Projection scale applied to local position before sampling. Higher = the texture repeats more often / smaller features."
      MaterialExpressionEditorX=-1600
      MaterialExpressionEditorY=-420
      MaterialExpressionGuid=54A1EB69F6F08FE17C5F4018DA549D53
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_3'"
   NodePosX=-1600
   NodePosY=-420
   NodeGuid=9E920E5DD3AD34F01F5E4EF0BD697A28
   CustomProperties Pin (PinId=8C23DE2CD95A737577E4CB7A2D6A2834,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_7 FAF60E08F199A86B0E16B3178A458C91,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_4"
   Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_4"
   End Object
   Begin Object Name="MaterialExpressionScalarParameter_4"
      ParameterName="BlendSharpness"
      DefaultValue=6
      SliderMin=1
      SliderMax=16
      Group="Triplanar"
      SortPriority=2
      Desc="How tightly the three axis projections switch at edges. Higher = crisper seams between faces; lower = a softer blend that suits curved surfaces."
      MaterialExpressionEditorX=-1600
      MaterialExpressionEditorY=-240
      MaterialExpressionGuid=5A1B610C77232D380F3A36F14116D1B8
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionScalarParameter'MaterialExpressionScalarParameter_4'"
   NodePosX=-1600
   NodePosY=-240
   NodeGuid=D8626AB35D59687446B8004171B3B3B9
   CustomProperties Pin (PinId=112288811846F13595CC64D1C19C5009,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_20 99C2D99BF5D211DFC656F620ADE54F72,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_5"
   Begin Object Class=/Script/Engine.MaterialExpressionNamedRerouteDeclaration Name="MaterialExpressionNamedRerouteDeclaration_5"
   End Object
   Begin Object Name="MaterialExpressionNamedRerouteDeclaration_5"
      Name="Tex"
      NodeColor=(R=0.850000,G=0.500000,B=0.200000,A=1.000000)
      VariableGuid=C4A7E1F92D6B438EA0F15C8B3E7D4A26
      Desc="Bus signal: the shared texture object sampled on all three axes."
      Input=(Expression="/Script/Engine.MaterialExpressionTextureObjectParameter'MaterialGraphNode_2.MaterialExpressionTextureObjectParameter_2'")
      MaterialExpressionEditorX=-1020
      MaterialExpressionEditorY=-620
      MaterialExpressionGuid=EB14172FF4A11CDEB1783DACC7CFA09F
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionNamedRerouteDeclaration'MaterialExpressionNamedRerouteDeclaration_5'"
   NodePosX=-1020
   NodePosY=-620
   NodeGuid=FF6642C1B71C6FC1631035BD24B64C72
   CustomProperties Pin (PinId=48141D176ED1C5494EF57523C1FBA670,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_2 EAC26DDB9F3867D23450EA2541B30515,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=77EF30E0C1A4EF29CA032DD136EFE107,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_6"
   Begin Object Class=/Script/Engine.MaterialExpressionLocalPosition Name="MaterialExpressionLocalPosition_6"
   End Object
   Begin Object Name="MaterialExpressionLocalPosition_6"
      MaterialExpressionEditorX=-1600
      MaterialExpressionEditorY=40
      MaterialExpressionGuid=DAF5CAE3E55B45C563A14B19B6340A1E
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionLocalPosition'MaterialExpressionLocalPosition_6'"
   NodePosX=-1600
   NodePosY=40
   NodeGuid=8914A6495AE6AF07FC5223E28B03E972
   CustomProperties Pin (PinId=DD6301FB30FE05D40D8E0947DCB5A8FF,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_7 B72FB2058F9CBCAA460BF554B702B82B,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_7"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_7"
   End Object
   Begin Object Name="MaterialExpressionMultiply_7"
      A=(Expression="/Script/Engine.MaterialExpressionLocalPosition'MaterialGraphNode_6.MaterialExpressionLocalPosition_6'")
      B=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_3.MaterialExpressionScalarParameter_3'")
      MaterialExpressionEditorX=-1240
      MaterialExpressionEditorY=80
      MaterialExpressionGuid=5F511802E3DD2B902E968A9C12C969D4
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_7'"
   NodePosX=-1240
   NodePosY=80
   NodeGuid=D863EBBD04A532423932A960636D6232
   CustomProperties Pin (PinId=B72FB2058F9CBCAA460BF554B702B82B,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_6 DD6301FB30FE05D40D8E0947DCB5A8FF,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=FAF60E08F199A86B0E16B3178A458C91,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_3 8C23DE2CD95A737577E4CB7A2D6A2834,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=E8195D7B2ACE9F073706C78C4C5CA32E,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_8 A44172237704A2F16B3CF6811415C99B,MaterialGraphNode_9 1F1243C187E47B278137C3C8F63EBEC3,MaterialGraphNode_10 880BE8E40C12D44D8F2F3C11F2A6E721,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_8"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_8"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_8"
      R=False
      G=True
      B=True
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_7.MaterialExpressionMultiply_7'")
      MaterialExpressionEditorX=-940
      MaterialExpressionEditorY=-120
      MaterialExpressionGuid=E75BFD8C714ED1DFDECFC3941DFAD4C6
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_8'"
   NodePosX=-940
   NodePosY=-120
   NodeGuid=704CB7B3D762D6F0149AD84EA732A04D
   CustomProperties Pin (PinId=A44172237704A2F16B3CF6811415C99B,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_7 E8195D7B2ACE9F073706C78C4C5CA32E,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=AB51088F6030BBA80DFDDBDFF8564E36,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_14 ABCD95DB6F090EABE61632FFDE8EF4CA,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_9"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_9"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_9"
      R=True
      G=False
      B=True
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_7.MaterialExpressionMultiply_7'")
      MaterialExpressionEditorX=-940
      MaterialExpressionEditorY=80
      MaterialExpressionGuid=BFEA83B77E6B89D78A944FCBBED478CF
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_9'"
   NodePosX=-940
   NodePosY=80
   NodeGuid=A9A752C3D462A66BC3C02B71EEA4F113
   CustomProperties Pin (PinId=1F1243C187E47B278137C3C8F63EBEC3,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_7 E8195D7B2ACE9F073706C78C4C5CA32E,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=7CB0F7BE16E02ABD32FE702D63818251,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_15 6677ACE8C9FFBAEFB55FF0ADD59D1E53,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_10"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_10"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_10"
      R=True
      G=True
      B=False
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_7.MaterialExpressionMultiply_7'")
      MaterialExpressionEditorX=-940
      MaterialExpressionEditorY=280
      MaterialExpressionGuid=C98230CFB0F1450A2362A501D9404D2D
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_10'"
   NodePosX=-940
   NodePosY=280
   NodeGuid=BEAA9801F66A8EE7E0C246BCE453E52A
   CustomProperties Pin (PinId=880BE8E40C12D44D8F2F3C11F2A6E721,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_7 E8195D7B2ACE9F073706C78C4C5CA32E,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A263C01958A0F29DB87F42D2CED9B77A,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 CA183788C8F7EEBD050D274BA66D3614,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_11"
   Begin Object Class=/Script/Engine.MaterialExpressionNamedRerouteUsage Name="MaterialExpressionNamedRerouteUsage_11"
   End Object
   Begin Object Name="MaterialExpressionNamedRerouteUsage_11"
      DeclarationGuid=C4A7E1F92D6B438EA0F15C8B3E7D4A26
      MaterialExpressionEditorX=-660
      MaterialExpressionEditorY=-220
      MaterialExpressionGuid=072D99C32242CB086BFEEAB0DBF9CFBB
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionNamedRerouteUsage'MaterialExpressionNamedRerouteUsage_11'"
   NodePosX=-660
   NodePosY=-220
   NodeGuid=926375F0ADA1AE71D5513303A257A1AE
   CustomProperties Pin (PinId=EAEA30E7F16C16CE1CE32B381CCE594F,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_14 5D3C7A41DA5C24E27CF9AD4BB4C4D052,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_12"
   Begin Object Class=/Script/Engine.MaterialExpressionNamedRerouteUsage Name="MaterialExpressionNamedRerouteUsage_12"
   End Object
   Begin Object Name="MaterialExpressionNamedRerouteUsage_12"
      DeclarationGuid=C4A7E1F92D6B438EA0F15C8B3E7D4A26
      MaterialExpressionEditorX=-660
      MaterialExpressionEditorY=-20
      MaterialExpressionGuid=9E76F917B1B657DA014FF3EFF82C3E77
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionNamedRerouteUsage'MaterialExpressionNamedRerouteUsage_12'"
   NodePosX=-660
   NodePosY=-20
   NodeGuid=73DA51E02A1F8A1DA7D82F68CF95A9E2
   CustomProperties Pin (PinId=113508C45620819BBFB6C1FF5852AE32,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_15 AEEA62C9A20091C283DC6BD569F94925,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_13"
   Begin Object Class=/Script/Engine.MaterialExpressionNamedRerouteUsage Name="MaterialExpressionNamedRerouteUsage_13"
   End Object
   Begin Object Name="MaterialExpressionNamedRerouteUsage_13"
      DeclarationGuid=C4A7E1F92D6B438EA0F15C8B3E7D4A26
      MaterialExpressionEditorX=-660
      MaterialExpressionEditorY=180
      MaterialExpressionGuid=980086476D82694AD162AF11435380BA
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionNamedRerouteUsage'MaterialExpressionNamedRerouteUsage_13'"
   NodePosX=-660
   NodePosY=180
   NodeGuid=3862CDCCCB3072813FA2C7E2F333C2A5
   CustomProperties Pin (PinId=D35FA83353D3C836423A7A6A30CE1624,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 040C49F9FDFBB0FB49BE9C992D40BF4A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_14"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureSample Name="MaterialExpressionTextureSample_14"
   End Object
   Begin Object Name="MaterialExpressionTextureSample_14"
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      SamplerType=SAMPLERTYPE_SAMPLERTYPE_Color
      Coordinates=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_8.MaterialExpressionComponentMask_8'")
      TextureObject=(Expression="/Script/Engine.MaterialExpressionNamedRerouteUsage'MaterialGraphNode_11.MaterialExpressionNamedRerouteUsage_11'")
      MaterialExpressionEditorX=-440
      MaterialExpressionEditorY=-120
      MaterialExpressionGuid=29A284B9655A26FE16134049B117A336
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureSample'MaterialExpressionTextureSample_14'"
   NodePosX=-440
   NodePosY=-120
   NodeGuid=FC5EA0424FAF459396FBA3C560E97042
   CustomProperties Pin (PinId=ABCD95DB6F090EABE61632FFDE8EF4CA,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_8 AB51088F6030BBA80DFDDBDFF8564E36,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=5D3C7A41DA5C24E27CF9AD4BB4C4D052,PinName="Tex",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_11 EAEA30E7F16C16CE1CE32B381CCE594F,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=0435C43EAFBCB140B1DA94824595CDC4,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=6A29C1C6104FD8319A0F98B338444D74,PinName="RGB",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_27 A0C91E03B6A995B07334E2322B5A7A9B,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=69B53204AB3A145922EE3B030659B17C,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=927BFCD83A9922655BC296CDBED08538,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=4955E348B37F1F002B0A966386E148AA,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=31B4F07EC8FB3794BD67A2F54CE40A09,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=0FE71FB1840909AEB4D07EF1A6B9A36D,PinName="RGBA",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_15"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureSample Name="MaterialExpressionTextureSample_15"
   End Object
   Begin Object Name="MaterialExpressionTextureSample_15"
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      SamplerType=SAMPLERTYPE_SAMPLERTYPE_Color
      Coordinates=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_9.MaterialExpressionComponentMask_9'")
      TextureObject=(Expression="/Script/Engine.MaterialExpressionNamedRerouteUsage'MaterialGraphNode_12.MaterialExpressionNamedRerouteUsage_12'")
      MaterialExpressionEditorX=-440
      MaterialExpressionEditorY=80
      MaterialExpressionGuid=6EBFF21C6E36A7F52EE22C76CAB00A0B
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureSample'MaterialExpressionTextureSample_15'"
   NodePosX=-440
   NodePosY=80
   NodeGuid=A9D2D4CB2F786DCAB9BD3B31FA0C2E57
   CustomProperties Pin (PinId=6677ACE8C9FFBAEFB55FF0ADD59D1E53,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_9 7CB0F7BE16E02ABD32FE702D63818251,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=AEEA62C9A20091C283DC6BD569F94925,PinName="Tex",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_12 113508C45620819BBFB6C1FF5852AE32,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=00A44287507DB2A94D9FAF802ED5845C,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=63B8024DE9E532F8D7CC10241E72569D,PinName="RGB",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_28 107D31961CC2BCA0C71B5D644D3C32B6,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=73CC2801425D4829A570E1BB0C6573FD,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=5BAFBAC700AF56DAE2F51155CEF8F235,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=9FDCD4D733D1FEF0CA40696F854DF557,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=C492613C68655596CAEDBBBEF2CC8E02,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=D64315C299BB92A56F6907206802CE8D,PinName="RGBA",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_16"
   Begin Object Class=/Script/Engine.MaterialExpressionTextureSample Name="MaterialExpressionTextureSample_16"
   End Object
   Begin Object Name="MaterialExpressionTextureSample_16"
      Texture=Texture2D'/Engine/EngineResources/DefaultTexture.DefaultTexture'
      SamplerType=SAMPLERTYPE_SAMPLERTYPE_Color
      Coordinates=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_10.MaterialExpressionComponentMask_10'")
      TextureObject=(Expression="/Script/Engine.MaterialExpressionNamedRerouteUsage'MaterialGraphNode_13.MaterialExpressionNamedRerouteUsage_13'")
      MaterialExpressionEditorX=-440
      MaterialExpressionEditorY=280
      MaterialExpressionGuid=2F1E4EEE217A4FC282DD58FE0FCCE1E9
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTextureSample'MaterialExpressionTextureSample_16'"
   NodePosX=-440
   NodePosY=280
   NodeGuid=0F387203B755B192016D092DE1962D83
   CustomProperties Pin (PinId=CA183788C8F7EEBD050D274BA66D3614,PinName="UVs",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_10 A263C01958A0F29DB87F42D2CED9B77A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=040C49F9FDFBB0FB49BE9C992D40BF4A,PinName="Tex",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_13 D35FA83353D3C836423A7A6A30CE1624,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=A447C1F48FB939545F2D8467532EDDC4,PinName="ApplyViewMipBias",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=3EDBC4ADB9D0D606E63A0ECC08A13CC6,PinName="RGB",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_29 57468B05B8C00218DFBBA69E6923320F,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=4C34588263AADB4A2C856AF844D5C857,PinName="R",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=8CDD4DAE8E0673C99110E4715AD0462C,PinName="G",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=558A58C49B76D6E0F98C8CF4B9BCAACE,PinName="B",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=78B634E869246835DE6AF0A38C6E1D69,PinName="A",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=08B3D80C3236AB1DB3D15C84D2888201,PinName="RGBA",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_17"
   Begin Object Class=/Script/Engine.MaterialExpressionVertexNormalWS Name="MaterialExpressionVertexNormalWS_17"
   End Object
   Begin Object Name="MaterialExpressionVertexNormalWS_17"
      MaterialExpressionEditorX=-1600
      MaterialExpressionEditorY=560
      MaterialExpressionGuid=BA45B6E084C1ABFC62BB92B6C3E1B68A
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionVertexNormalWS'MaterialExpressionVertexNormalWS_17'"
   NodePosX=-1600
   NodePosY=560
   NodeGuid=9912BEE86C9D7EFBAE3FD875A26F9813
   CustomProperties Pin (PinId=6D499762EC67343CC455037C71FD7262,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_18 89D18890D7B06B74A0FB6DB96B0F2C47,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_18"
   Begin Object Class=/Script/Engine.MaterialExpressionTransform Name="MaterialExpressionTransform_18"
   End Object
   Begin Object Name="MaterialExpressionTransform_18"
      Input=(Expression="/Script/Engine.MaterialExpressionVertexNormalWS'MaterialGraphNode_17.MaterialExpressionVertexNormalWS_17'")
      MaterialExpressionEditorX=-1280
      MaterialExpressionEditorY=560
      MaterialExpressionGuid=8959EE3083EBE6060FAE180C51C8BB8E
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionTransform'MaterialExpressionTransform_18'"
   NodePosX=-1280
   NodePosY=560
   NodeGuid=BE30A007DCE4046FD800281DDBA3EB50
   CustomProperties Pin (PinId=89D18890D7B06B74A0FB6DB96B0F2C47,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_17 6D499762EC67343CC455037C71FD7262,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=1CC39A2A2DC451DE35E70733DCFC1AE9,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_19 EEA5B7A80846EF15B93D270571CCD4D1,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_19"
   Begin Object Class=/Script/Engine.MaterialExpressionAbs Name="MaterialExpressionAbs_19"
   End Object
   Begin Object Name="MaterialExpressionAbs_19"
      Input=(Expression="/Script/Engine.MaterialExpressionTransform'MaterialGraphNode_18.MaterialExpressionTransform_18'")
      MaterialExpressionEditorX=-1000
      MaterialExpressionEditorY=560
      MaterialExpressionGuid=A315C9253EADB8EC0E331C8F9DAA91E1
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionAbs'MaterialExpressionAbs_19'"
   NodePosX=-1000
   NodePosY=560
   NodeGuid=8671E00ACD467B749F85A86ACF9BAF1A
   CustomProperties Pin (PinId=EEA5B7A80846EF15B93D270571CCD4D1,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_18 1CC39A2A2DC451DE35E70733DCFC1AE9,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=508D3E13C60B348C8E83CD9F51BD641E,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_20 16A2AED9B8F68DDC62B2F2304E3CD7F0,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_20"
   Begin Object Class=/Script/Engine.MaterialExpressionPower Name="MaterialExpressionPower_20"
   End Object
   Begin Object Name="MaterialExpressionPower_20"
      Base=(Expression="/Script/Engine.MaterialExpressionAbs'MaterialGraphNode_19.MaterialExpressionAbs_19'")
      Exponent=(Expression="/Script/Engine.MaterialExpressionScalarParameter'MaterialGraphNode_4.MaterialExpressionScalarParameter_4'")
      MaterialExpressionEditorX=-760
      MaterialExpressionEditorY=540
      MaterialExpressionGuid=72490F54C54331B72CD6328274E99BBC
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionPower'MaterialExpressionPower_20'"
   NodePosX=-760
   NodePosY=540
   NodeGuid=D0555354DE119F4541816AD503D47878
   CustomProperties Pin (PinId=16A2AED9B8F68DDC62B2F2304E3CD7F0,PinName="Base",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_19 508D3E13C60B348C8E83CD9F51BD641E,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=99C2D99BF5D211DFC656F620ADE54F72,PinName="Exp",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_4 112288811846F13595CC64D1C19C5009,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=EED065C57A0B3D730F17B5EB30AEEBF1,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_22 974EAB45B70E317F762ED2417EE1C853,MaterialGraphNode_23 B363C1629DF87DD6E2491D812C07DCCB,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_21"
   Begin Object Class=/Script/Engine.MaterialExpressionConstant3Vector Name="MaterialExpressionConstant3Vector_21"
   End Object
   Begin Object Name="MaterialExpressionConstant3Vector_21"
      Constant=(R=1,G=1,B=1,A=0)
      MaterialExpressionEditorX=-760
      MaterialExpressionEditorY=720
      MaterialExpressionGuid=740445B044EF6F25822F241CBDA63A84
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionConstant3Vector'MaterialExpressionConstant3Vector_21'"
   NodePosX=-760
   NodePosY=720
   NodeGuid=F05FEA0968377EC49CD144B825B65255
   CustomProperties Pin (PinId=054BB29E3A7AB13BED87F7A281E2863E,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_22 D31C74E96BEEE191D45AC3D64A3783F8,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_22"
   Begin Object Class=/Script/Engine.MaterialExpressionDotProduct Name="MaterialExpressionDotProduct_22"
   End Object
   Begin Object Name="MaterialExpressionDotProduct_22"
      A=(Expression="/Script/Engine.MaterialExpressionPower'MaterialGraphNode_20.MaterialExpressionPower_20'")
      B=(Expression="/Script/Engine.MaterialExpressionConstant3Vector'MaterialGraphNode_21.MaterialExpressionConstant3Vector_21'")
      MaterialExpressionEditorX=-520
      MaterialExpressionEditorY=600
      MaterialExpressionGuid=4CE9859976809A84886C8D6E9C09B855
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionDotProduct'MaterialExpressionDotProduct_22'"
   NodePosX=-520
   NodePosY=600
   NodeGuid=BB639AA2D46810CD341C67EE8122969D
   CustomProperties Pin (PinId=974EAB45B70E317F762ED2417EE1C853,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_20 EED065C57A0B3D730F17B5EB30AEEBF1,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=D31C74E96BEEE191D45AC3D64A3783F8,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_21 054BB29E3A7AB13BED87F7A281E2863E,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=F22618F565974F1E556C28C3EBED201A,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_23 F0695A3C649B09F20684ADCA7065C3D9,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_23"
   Begin Object Class=/Script/Engine.MaterialExpressionDivide Name="MaterialExpressionDivide_23"
   End Object
   Begin Object Name="MaterialExpressionDivide_23"
      A=(Expression="/Script/Engine.MaterialExpressionPower'MaterialGraphNode_20.MaterialExpressionPower_20'")
      B=(Expression="/Script/Engine.MaterialExpressionDotProduct'MaterialGraphNode_22.MaterialExpressionDotProduct_22'")
      MaterialExpressionEditorX=-300
      MaterialExpressionEditorY=540
      MaterialExpressionGuid=1C3566969854330CB09CEAE3C7C6F3B6
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionDivide'MaterialExpressionDivide_23'"
   NodePosX=-300
   NodePosY=540
   NodeGuid=2BD26BCCFDBB2386C27196E737AF536B
   CustomProperties Pin (PinId=B363C1629DF87DD6E2491D812C07DCCB,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_20 EED065C57A0B3D730F17B5EB30AEEBF1,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=F0695A3C649B09F20684ADCA7065C3D9,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_22 F22618F565974F1E556C28C3EBED201A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=C6177B6871D4A3913907D7E5638C7F18,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_24 DC0B163C8116183CBBD8AC76B347DCE8,MaterialGraphNode_25 93B77B83F35394A74DB39C38B8E5F911,MaterialGraphNode_26 9363A6DBB2AE9D9DA41EF4E0354DAE8B,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_24"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_24"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_24"
      R=True
      G=False
      B=False
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionDivide'MaterialGraphNode_23.MaterialExpressionDivide_23'")
      MaterialExpressionEditorX=-60
      MaterialExpressionEditorY=440
      MaterialExpressionGuid=A441C0DB35E87BE5DDA175EC4FEA0D24
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_24'"
   NodePosX=-60
   NodePosY=440
   NodeGuid=CEBC1D37F2FACD1F52F970E83D493681
   CustomProperties Pin (PinId=DC0B163C8116183CBBD8AC76B347DCE8,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_23 C6177B6871D4A3913907D7E5638C7F18,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=C64F51B4DD6F7E32B67CE17D12B1B2B3,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_27 1BFAC333733BC92F4ABBC2C066566CD2,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_25"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_25"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_25"
      R=False
      G=True
      B=False
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionDivide'MaterialGraphNode_23.MaterialExpressionDivide_23'")
      MaterialExpressionEditorX=-60
      MaterialExpressionEditorY=600
      MaterialExpressionGuid=273F2410967DCB5C84A2473AEC94855B
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_25'"
   NodePosX=-60
   NodePosY=600
   NodeGuid=B3336EC48FAB70955095D34E6CC5DAD8
   CustomProperties Pin (PinId=93B77B83F35394A74DB39C38B8E5F911,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_23 C6177B6871D4A3913907D7E5638C7F18,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=31E2BCE5CDD7B8DF6A7FE8D33F0B6722,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_28 D929A5565E58EFC04043C72EA5075416,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_26"
   Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_26"
   End Object
   Begin Object Name="MaterialExpressionComponentMask_26"
      R=False
      G=False
      B=True
      A=False
      Input=(Expression="/Script/Engine.MaterialExpressionDivide'MaterialGraphNode_23.MaterialExpressionDivide_23'")
      MaterialExpressionEditorX=-60
      MaterialExpressionEditorY=760
      MaterialExpressionGuid=30FC81FA59C165E5FD68F2E53B0A9065
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionComponentMask'MaterialExpressionComponentMask_26'"
   NodePosX=-60
   NodePosY=760
   NodeGuid=6637FB3ECBEB08BD0E05079C76CD00BC
   CustomProperties Pin (PinId=9363A6DBB2AE9D9DA41EF4E0354DAE8B,PinName="Input",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_23 C6177B6871D4A3913907D7E5638C7F18,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=7A42A667081ACCF168EA9C9D039E9A24,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_29 8D063E875F8EAE4C0AFBEAD8D7ECF8B5,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_27"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_27"
   End Object
   Begin Object Name="MaterialExpressionMultiply_27"
      A=(Expression="/Script/Engine.MaterialExpressionTextureSample'MaterialGraphNode_14.MaterialExpressionTextureSample_14'")
      B=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_24.MaterialExpressionComponentMask_24'")
      MaterialExpressionEditorX=220
      MaterialExpressionEditorY=-40
      MaterialExpressionGuid=8DB7EE1B8C0499CA2DA119B29ED44CE5
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_27'"
   NodePosX=220
   NodePosY=-40
   NodeGuid=90CB48D4D3E2DA7FCDEAFDCE1C906510
   CustomProperties Pin (PinId=A0C91E03B6A995B07334E2322B5A7A9B,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_14 6A29C1C6104FD8319A0F98B338444D74,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=1BFAC333733BC92F4ABBC2C066566CD2,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_24 C64F51B4DD6F7E32B67CE17D12B1B2B3,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=BA7315104DB870BEDAD60DCC872BB0AC,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_30 1BBC46C64640A7183EF9290D86AD64DD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_28"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_28"
   End Object
   Begin Object Name="MaterialExpressionMultiply_28"
      A=(Expression="/Script/Engine.MaterialExpressionTextureSample'MaterialGraphNode_15.MaterialExpressionTextureSample_15'")
      B=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_25.MaterialExpressionComponentMask_25'")
      MaterialExpressionEditorX=220
      MaterialExpressionEditorY=160
      MaterialExpressionGuid=347251F48B3A58270D46BD28775B625F
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_28'"
   NodePosX=220
   NodePosY=160
   NodeGuid=49305697404A839FF19D1A4068EE192C
   CustomProperties Pin (PinId=107D31961CC2BCA0C71B5D644D3C32B6,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_15 63B8024DE9E532F8D7CC10241E72569D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=D929A5565E58EFC04043C72EA5075416,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_25 31E2BCE5CDD7B8DF6A7FE8D33F0B6722,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=60A2B9B94B85D3C52BCB560B156F22C1,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_30 D6988D725B8990F3BA649DB2F4B50C4A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_29"
   Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_29"
   End Object
   Begin Object Name="MaterialExpressionMultiply_29"
      A=(Expression="/Script/Engine.MaterialExpressionTextureSample'MaterialGraphNode_16.MaterialExpressionTextureSample_16'")
      B=(Expression="/Script/Engine.MaterialExpressionComponentMask'MaterialGraphNode_26.MaterialExpressionComponentMask_26'")
      MaterialExpressionEditorX=220
      MaterialExpressionEditorY=360
      MaterialExpressionGuid=685E05443E7A3FC277B63949F0A28793
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionMultiply'MaterialExpressionMultiply_29'"
   NodePosX=220
   NodePosY=360
   NodeGuid=771603D3019E46932B2ABC92DAD97E05
   CustomProperties Pin (PinId=57468B05B8C00218DFBBA69E6923320F,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 3EDBC4ADB9D0D606E63A0ECC08A13CC6,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=8D063E875F8EAE4C0AFBEAD8D7ECF8B5,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_26 7A42A667081ACCF168EA9C9D039E9A24,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=8628D37464C71E0142E679049906C0A0,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_31 9C3E35369181B04E87976D7CD042A57E,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_30"
   Begin Object Class=/Script/Engine.MaterialExpressionAdd Name="MaterialExpressionAdd_30"
   End Object
   Begin Object Name="MaterialExpressionAdd_30"
      A=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_27.MaterialExpressionMultiply_27'")
      B=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_28.MaterialExpressionMultiply_28'")
      MaterialExpressionEditorX=480
      MaterialExpressionEditorY=80
      MaterialExpressionGuid=BF69CBB9E7A07F94395F90708F4A591E
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionAdd'MaterialExpressionAdd_30'"
   NodePosX=480
   NodePosY=80
   NodeGuid=BEFAC3DF7F438194979F131B536B6797
   CustomProperties Pin (PinId=1BBC46C64640A7183EF9290D86AD64DD,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_27 BA7315104DB870BEDAD60DCC872BB0AC,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=D6988D725B8990F3BA649DB2F4B50C4A,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_28 60A2B9B94B85D3C52BCB560B156F22C1,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=6938D8326CE3AEA9275677E2628FB8CD,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_31 E9ED6CF0280E4C6C69A633A77A04D0D6,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_31"
   Begin Object Class=/Script/Engine.MaterialExpressionAdd Name="MaterialExpressionAdd_31"
   End Object
   Begin Object Name="MaterialExpressionAdd_31"
      A=(Expression="/Script/Engine.MaterialExpressionAdd'MaterialGraphNode_30.MaterialExpressionAdd_30'")
      B=(Expression="/Script/Engine.MaterialExpressionMultiply'MaterialGraphNode_29.MaterialExpressionMultiply_29'")
      MaterialExpressionEditorX=719
      MaterialExpressionEditorY=267
      MaterialExpressionGuid=3F4DD86C20590C6329BDC970A394BB7A
      Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   End Object
   MaterialExpression="/Script/Engine.MaterialExpressionAdd'MaterialExpressionAdd_31'"
   NodePosX=719
   NodePosY=267
   NodeGuid=EC2E275C87047EB846D7DD590AA7A3A6
   CustomProperties Pin (PinId=E9ED6CF0280E4C6C69A633A77A04D0D6,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_30 6938D8326CE3AEA9275677E2628FB8CD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=9C3E35369181B04E87976D7CD042A57E,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_29 8628D37464C71E0142E679049906C0A0,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
   CustomProperties Pin (PinId=3D313569DCC9BE03320D3307F355EB2D,PinName="Output",Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Root_32 BD7BBB45B050E90E61BF4FE1E38DD6DF,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Root Name="MaterialGraphNode_Root_32"
   Material="/Script/UnrealEd.PreviewMaterial'/Engine/Transient.Pasted_material'"
   NodePosX=1024
   NodePosY=197
   NodeGuid=7DDFF54DE75207A14C4B9F47F231F82B
   CustomProperties Pin (PinId=BD7BBB45B050E90E61BF4FE1E38DD6DF,PinName="Base Color",PinType.PinCategory="materialinput",PinType.PinSubCategory="rgba",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_31 3D313569DCC9BE03320D3307F355EB2D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False)
End Object

Nodes: ComponentMask (x6), Multiply (x4), NamedRerouteUsage (x3), TextureSample (x3), Add (x2), Comment (x2), ScalarParameter (x2), Abs, Constant3Vector, Divide, DotProduct, LocalPosition, Material, NamedRerouteDeclaration, Power, TextureObjectParameter, Transform, VertexNormalWS

more from @hazesee all

Water Puddle

@hazeUE 5.7

Caustics (Light Function)

@hazeUE 5.5+

Holographic Signs

@hazeUE 5.6+

More like this

browse all

World-Aligned Triplanar

@hazeUE 5.6+

Cheap Triplanar

@eeveeUE 5.6+

UV Transform - Node Group

@staticUE 5.6+

Object-Aligned Triplanar

@hazefounder
Node groupNanite-friendly
UE 5.6UE 5.7
3
license

CC0 1.0: Public Domain

Public domain: use it however you like, no credit required.

dependencies

Zero dependencies

Pastes and works in any UE 5.3+ project. No textures, no material functions, no MPCs.

tags
#procedural#triplanar#no-uvs#triplanar-projection#object-space#ue5#node-group#modular
ue compatibility
UE 5.3UE 5.4UE 5.5UE 5.6UE 5.7

Details

Last update
10 days ago
Published
12 days ago
Nodes
33
